2025 Kawasaki KLR650 Adventure ABS Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 2025 Kawasaki KLR650 Adventure ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

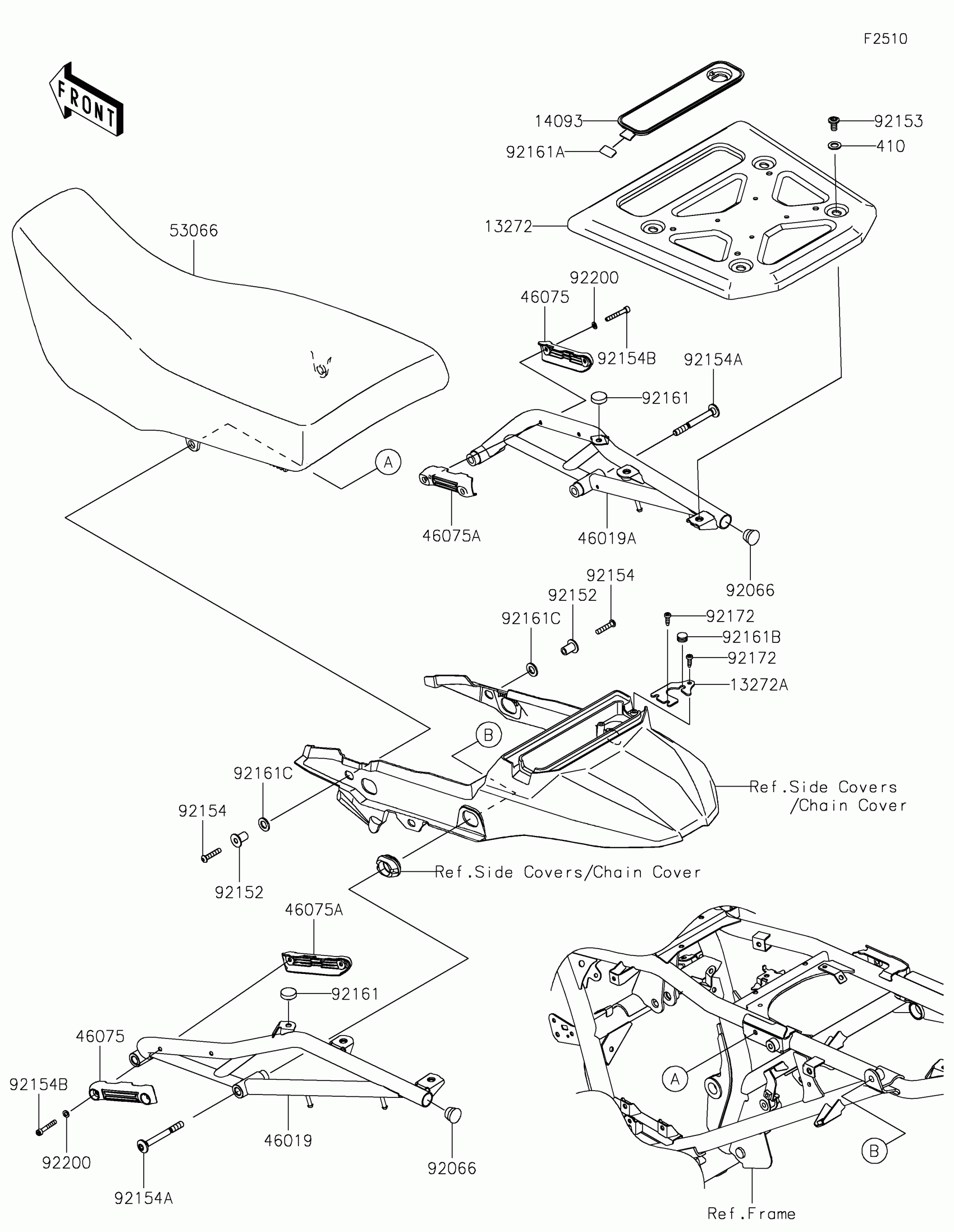

2025 Kawasaki KLR650 Adventure ABS Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13272

PLATE,CARRIER

13272-3763

1
Out of stock

13272A

PLATE

13272-3872

1
Out of stock

14093

COVER,TOOL

14093-1079

1
Out of stock

46019

GRIP-ASSY,LH

46019-0107

1
Out of stock

46019A

GRIP-ASSY,RH

46019-0108

1
Out of stock

46075

GRIP,OUTSIDE

46075-0659

1
Out of stock

46075A

GRIP,INSIDE

46075-0660

1
Out of stock

53066

SEAT-ASSY,DUAL,BLACK+SIL

53066-0703-64U

1
Out of stock

92066

PLUG

92066-1220

1
Out of stock

92152

COLLAR

92152-2823

1
Out of stock

92153

BOLT,SOCKET,8X15

92153-1810

1
Out of stock

92154

BOLT,SOCKET,6X30

92154-0206

1
Out of stock

92154A

BOLT,SOCKET,8X78

92154-4346

1
Out of stock

92154B

BOLT,SOCKET,5X35

92154-4350

1
Out of stock

92161

DAMPER

92161-0336

1
Out of stock

92161A

DAMPER,12X23

92161-1367

1
Out of stock

92161B

DAMPER,8X14X8.9

92161-1666

1

$1.32

In stock

92161C

DAMPER

92161-2425

1
Out of stock

92172

SCREW,TAPPING,5X16

92172-1425

1
Out of stock

92200

WASHER,5.5X10X1.2

92200-2495

1
Out of stock

410

WASHER-PLAIN-SMALL,10MM

410AA1000

1
Out of stock
