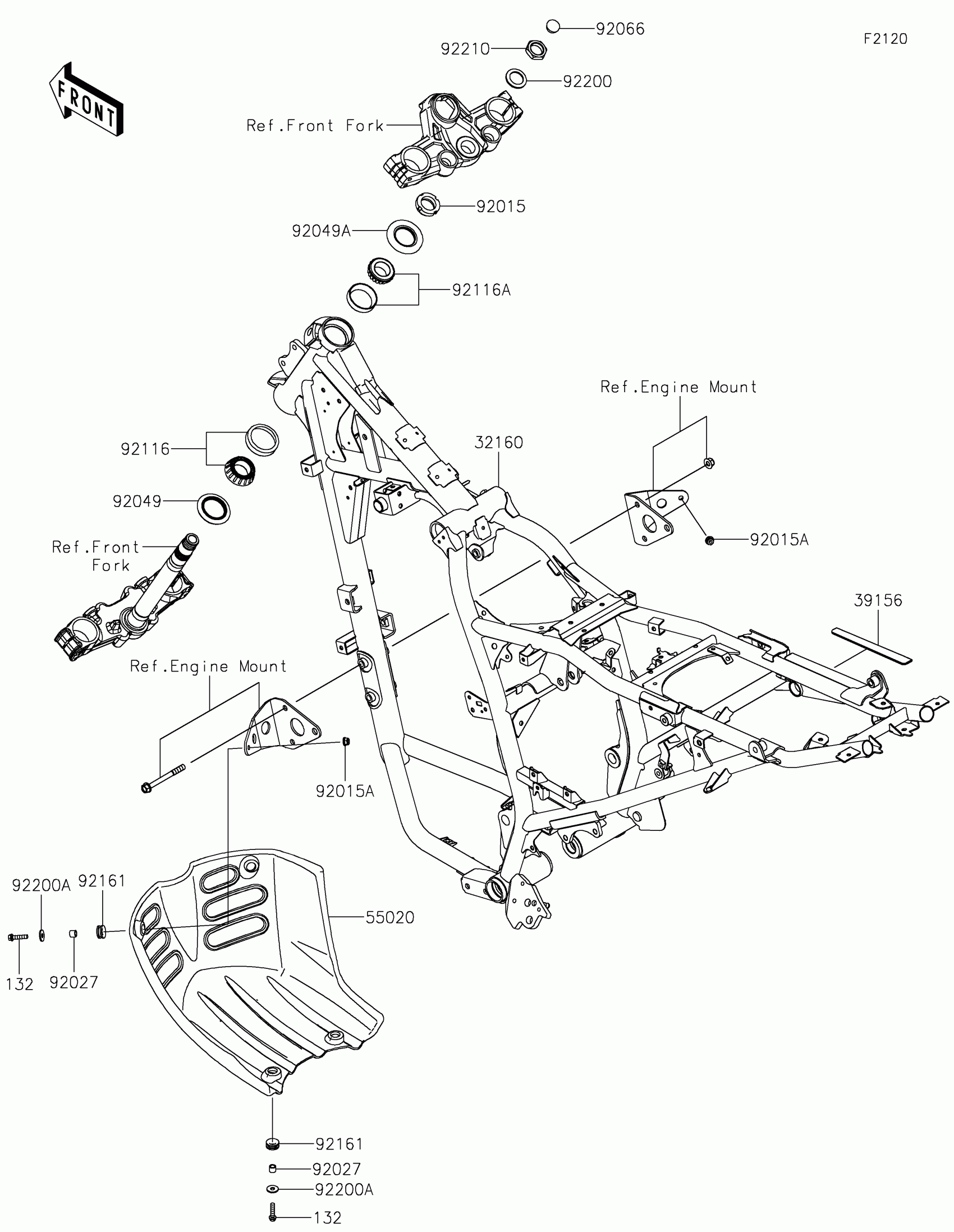

Find the part on the Frame diagram for your 2025 Kawasaki KLR650 Adventure ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki KLR650 Adventure ABS Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32160

FRAME-COMP,F.S.BLACK

32160-1906-18R

1
Out of stock

39156

PAD,RH

39156-2775

1
Out of stock

55020

GUARD,ENGINE,F.BLACK

55020-2372-6Z

1
Out of stock

92015

NUT,25MM,T=12

92015-1546

1
Out of stock

92015A

NUT,LOCK,FLANGED,6MM

92015-1603

1
Out of stock

92027

COLLAR,6.8X10X8.5

92027-129

1
Out of stock

92049

SEAL-OIL,XMHE36X52X4J

92049-1162

1
Out of stock

92049A

SEAL-OIL,STEERING STEM

92049-1214

1
Out of stock

92066

PLUG

92066-1306

1
Out of stock

92116

BEARING-ROLLER,HR320/28XJ

92116-1009

1
Out of stock

92116A

BEARING-ROLLER,HICAP 32005JR

92116-1052

1
Out of stock

92161

DAMPER,10X20X8

92161-1828

1

$1.10

In stock

92200

WASHER,STEERING STEM

92200-0517

1
Out of stock

92200A

WASHER,6.5X18X1.6

92200-0766

1
Out of stock

92210

NUT,STEERING STEM,22MM

92210-1521

1
Out of stock

132

1

$2.29

In stock
