2025 Kawasaki KLR650 Adventure ABS Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 2025 Kawasaki KLR650 Adventure ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

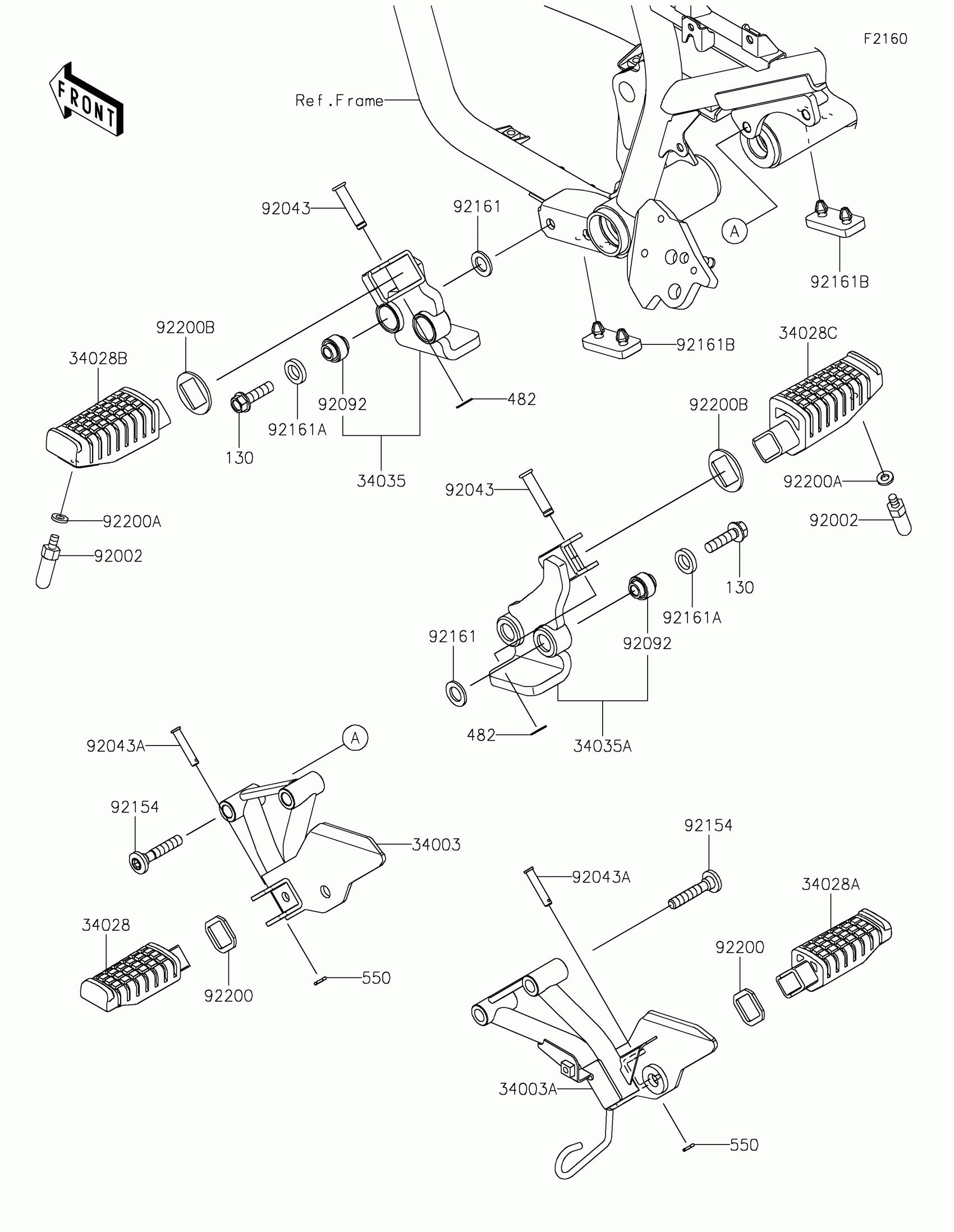

2025 Kawasaki KLR650 Adventure ABS Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

34003

HOLDER-STEP,RR,LH,F.S.BLACK

34003-0185-18R

1
Out of stock

34003A

HOLDER-STEP,RR,RH,F.S.BLACK

34003-0194-18R

1
Out of stock

34028

STEP,RR,LH

34028-0134

1

$36.70

In stock

34028A

STEP,RR,RH

34028-0135

1

$32.95

In stock

34028B

STEP,FR,LH

34028-0402

1
Out of stock

34028C

STEP,FR,RH

34028-0403

1
Out of stock

34035

HOLDER-ASSY-STEP,FR,LH

34035-0003

1
Out of stock

34035A

HOLDER-ASSY-STEP,FR,RH

34035-0004

1
Out of stock

92002

BOLT,BANK SENSOR

92002-1995

1
Out of stock

92043

PIN,8X36.5

92043-1339

1
Out of stock

92043A

PIN,6X28

92043-1464

1
Out of stock

92092

BUSHING-RUBBER,8.4X20X18

92092-0039

1
Out of stock

92154

BOLT,SOCKET,8X44

92154-4427

1
Out of stock

92161

DAMPER,12.5X21X2

92161-0943

1
Out of stock

92161A

DAMPER,12.5X20X4

92161-0944

1
Out of stock

92161B

DAMPER

92161-2391

1
Out of stock

92200

WASHER,RR STEP

92200-0561

1
Out of stock

92200A

WASHER,6.5X13X2.0

92200-0562

1
Out of stock

92200B

WASHER,FR STEP

92200-2537

1
Out of stock

130

BOLT-FLANGED,8X30

130CA0830

1

$1.00

In stock

482

CIRCLIP-TYPE-E

482EA7000

1
Out of stock

550

PIN-COTTER,2.0X15

550AA2015

1
Out of stock
