2010 Kawasaki KLR™650 Gear Change Mechanism Diagram

← All diagrams

Find the part on the Gear Change Mechanism diagram for your 2010 Kawasaki KLR™650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

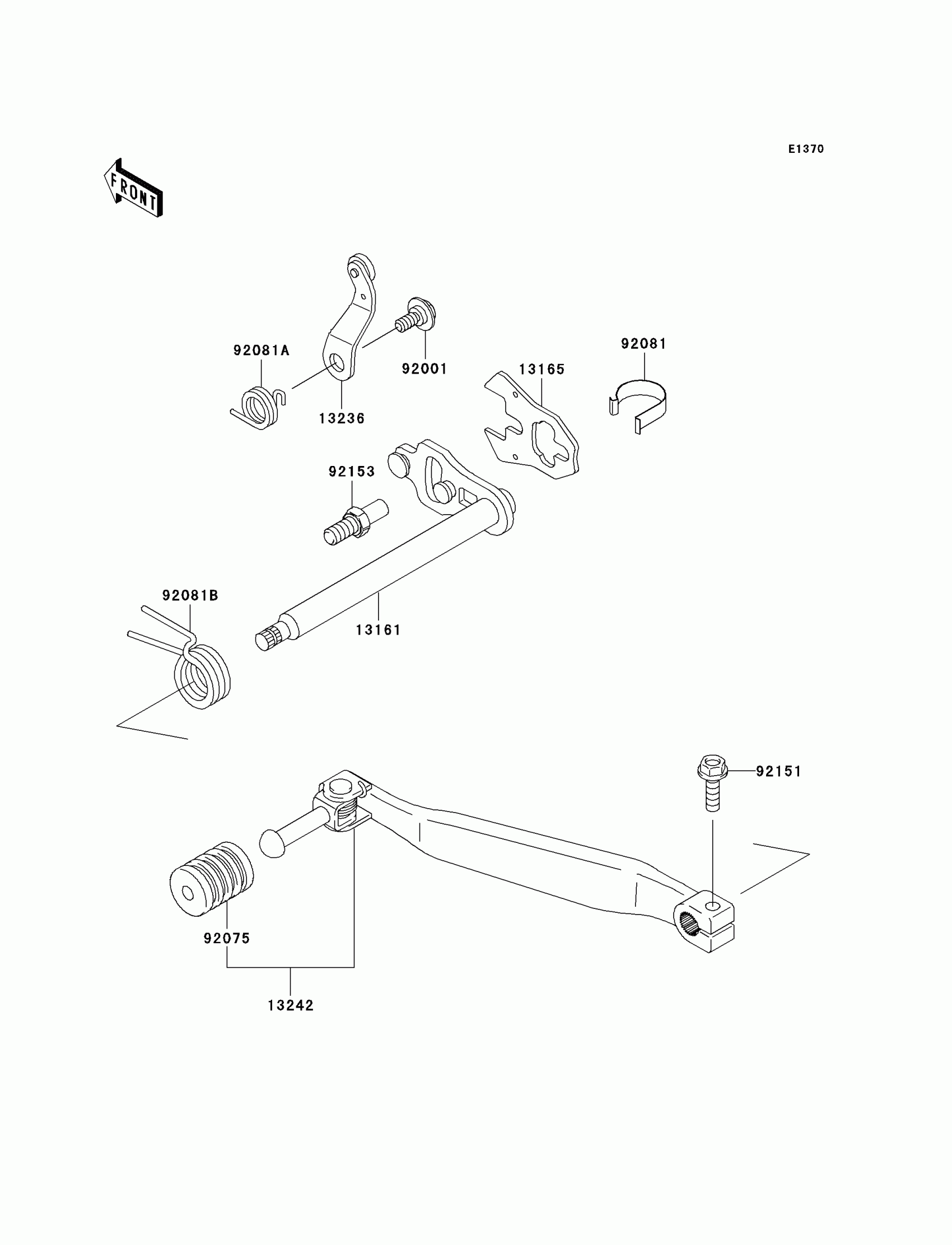

2010 Kawasaki KLR™650 Gear Change Mechanism Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13161

LEVER-COMP-CHANGE SHAFT

13161-1104

1
Out of stock

13165

PAWL

13165-1120

1

$13.39

In stock

13236

LEVER-COMP

13236-1101

1

$8.58

In stock

13242

LEVER-ASSY-CHANGE

13242-0046

1
Out of stock

92001

BOLT,FLANGED,6X14

92001-1715

1

$10.25

In stock

92075

DAMPER,CHANGE PEDAL

92075-1944

1

$8.44

In stock

92081

SPRING,CHANGE LEVER

92081-1493

1

$5.78

In stock

92081A

SPRING

92081-1496

1

$8.73

In stock

92081B

1

$10.93

In stock

92151

BOLT,6X20

92151-1450

1

$2.03

In stock

92153

BOLT,8X15.5

92153-0720

1
Out of stock
