Description

Price

13087

HUB-CLUTCH

13087-0023

$124.09

13088

PLATE-FRICTION

13088-040

$9.55

13089

PLATE-CLUTCH,T=2.0

13089-1068

$9.73

13095

HOUSING-COMP-CLUTCH

13095-1311

$561.22

13102

RELEASE-COMP-CLUTCH

13102-0033

Unavailable

13187

PLATE-CLUTCH OPERATING

13187-1080

$82.26

13280

HOLDER,CLUTCH CABLE

13280-0276

$14.49

46102

ROD,CLUTCH

46102-1030

$26.47

92015

NUT,20MM

92015-1555

$9.95

92022

WASHER,25.5X52.6X2

92022-1476

$7.71

92022A

WASHER,20.3X36X3.7

92022-1868

$7.25

92026

SPACER,25.1X38X4

92026-1206

$19.69

92045

BEARING-BALL

92045-1408

$12.02

92143

COLLAR

92143-1769

$33.81

92144

SPRING,CLUTCH

92144-1559

$6.90

92150

BOLT,6X12

92150-1965

$3.29

92153

BOLT,6X30

92153-0643

$1.85

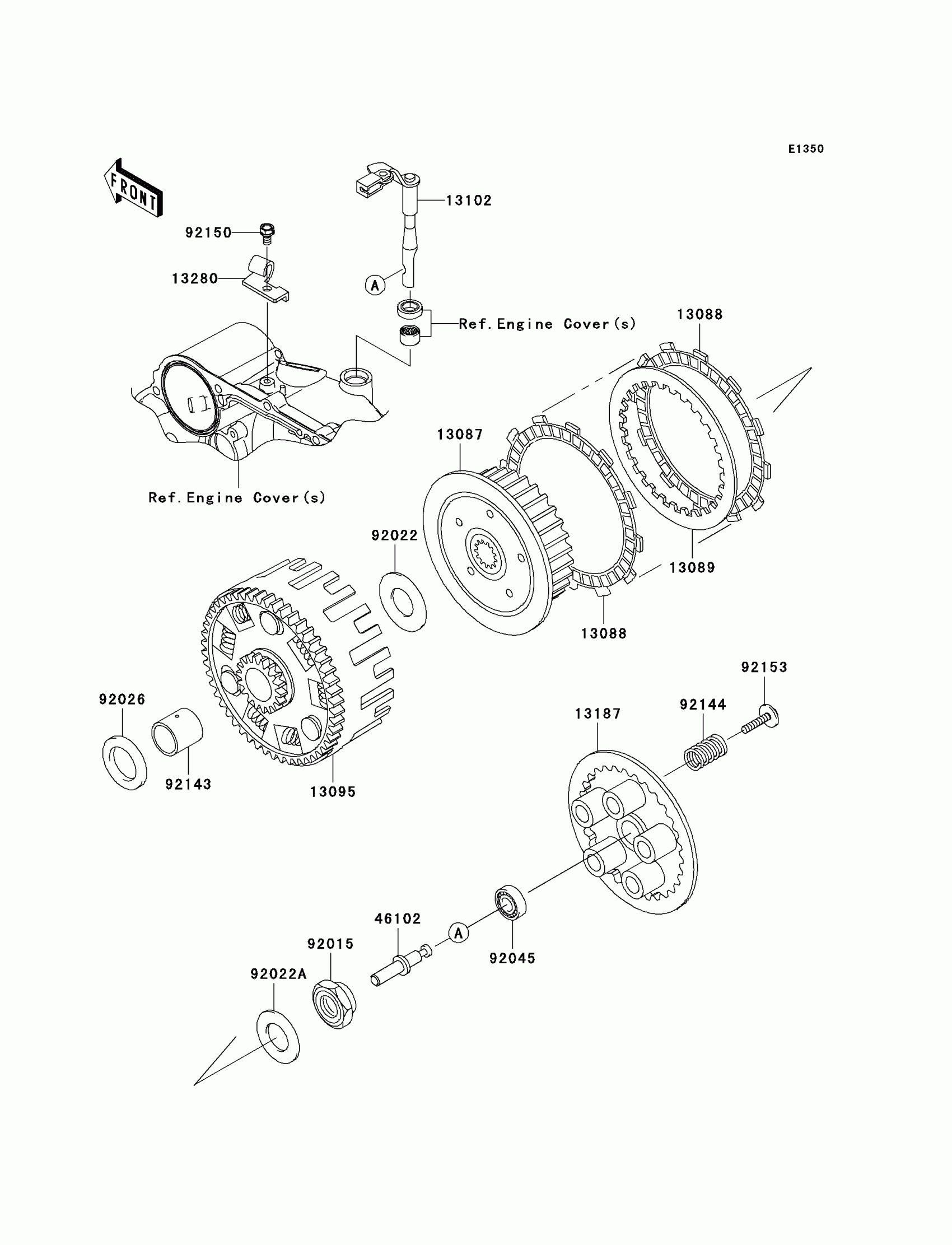

Kawasaki KLR™650 Clutch Diagram
