2023 Kawasaki KLR®650 Gear Change Drum/shift Fork Diagram

← All diagrams

Find the part on the Gear Change Drum/shift Fork diagram for your 2023 Kawasaki KLR®650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

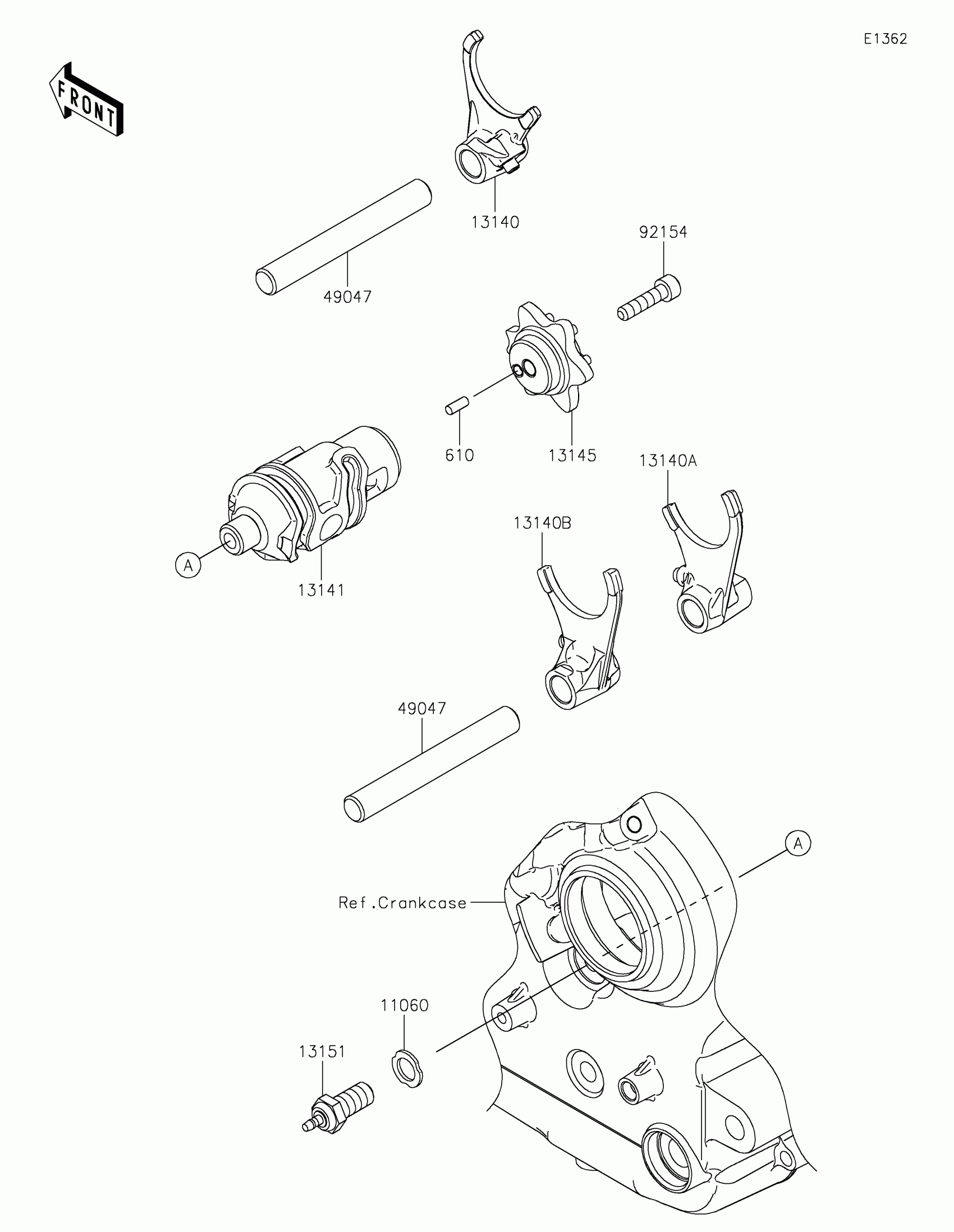

2023 Kawasaki KLR®650 Gear Change Drum/shift Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11060

GASKET,10.5X16X1.5

11060-1676

1
Out of stock

13140

FORK-SHIFT

13140-0694

1
Out of stock

13140A

FORK-SHIFT,LOW

13140-1023

1
Out of stock

13140B

FORK-SHIFT,2ND&3RD

13140-1024

1
Out of stock

13141

DRUM-CHANGE

13141-0613

1
Out of stock

13145

CAM-CHANGE DRUM

13145-0050

1
Out of stock

13151

SWITCH-COMP

13151-0559

1
Out of stock

49047

ROD-SHIFT,L=93.7

49047-0039

1
Out of stock

92154

BOLT,SOCKET,6X25

92154-0477

1
Out of stock

610

ROLLER,4X10

610A0410

1
Out of stock
