2023 Kawasaki KLR®650 Cylinder/piston Diagram

← All diagrams

Find the part on the Cylinder/piston diagram for your 2023 Kawasaki KLR®650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

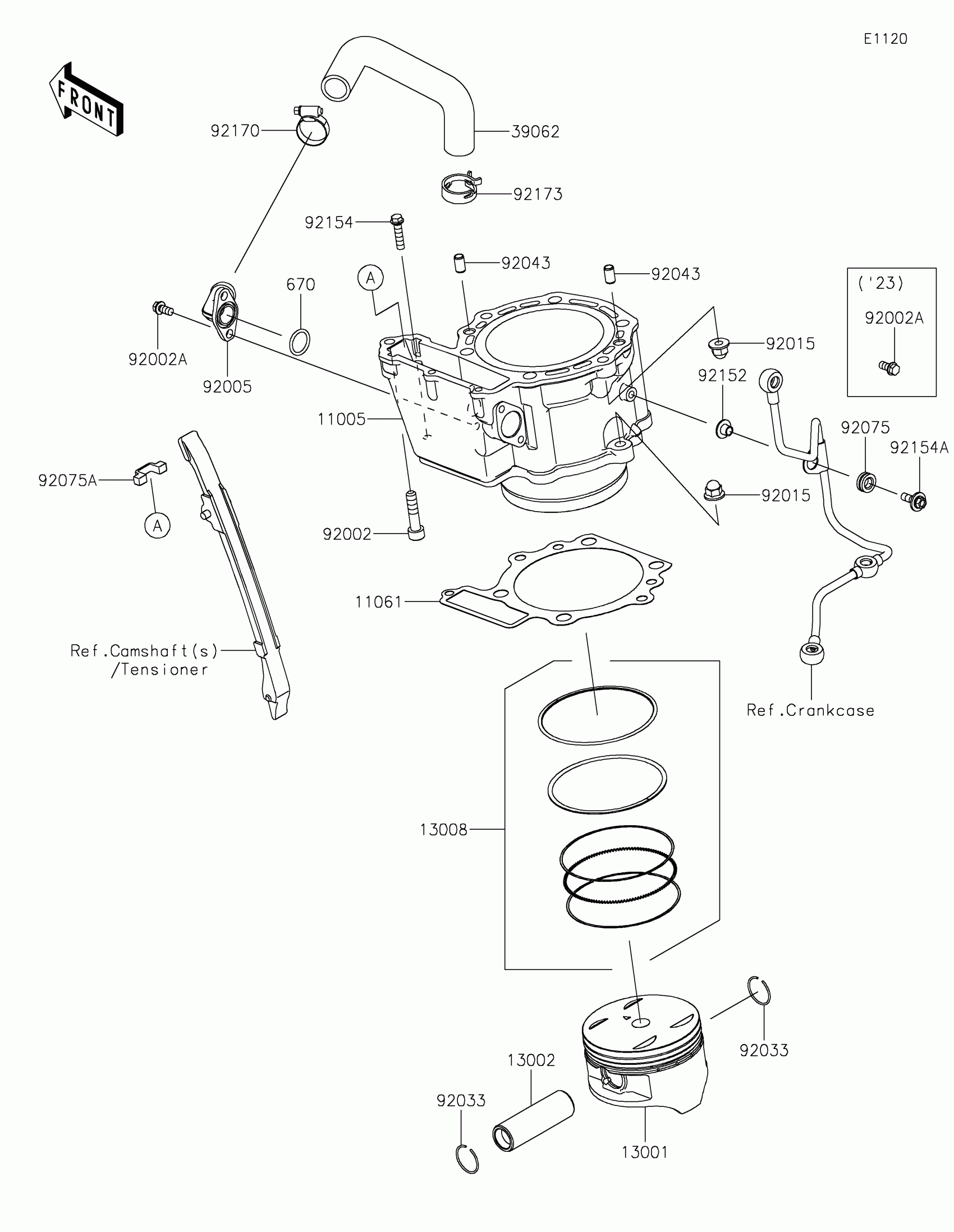

2023 Kawasaki KLR®650 Cylinder/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11005

CYLINDER-ENGINE

11005-0736

1
Out of stock

11061

GASKET,CYLINDER BASE

11061-0428

1
Out of stock

13001

PISTON-ENGINE

13001-0723

1
Out of stock

13002

PIN-PISTON

13002-0707

1
Out of stock

13008

RING-SET-PISTON

13008-0595

1
Out of stock

39062

1

$31.36

In stock

92002

BOLT,SOCKET,8X35

92002-1409

1
Out of stock

92002A

BOLT,6X12

92002-1569

1
Out of stock

92005

FITTING

92005-0784

1
Out of stock

92015

NUT,CAP,8MM

92015-1982

1
Out of stock

92033

RING-SNAP

92033-1226

1
Out of stock

92043

PIN,6.2X8X14

92043-1263

1
Out of stock

92075A

DAMPER

92075-1968

1
Out of stock

92154

BOLT,FLANGED,6X25

92154-1212

1
Out of stock

92170

CLAMP,COOLING HOSE

92170-1033

1

$11.99

In stock

92173

CLAMP

92173-2459

1
Out of stock

670

O RING,18MM

670B2018

1
Out of stock
