2010 Kawasaki KLR™650 Cylinder Head Cover Diagram

← All diagrams

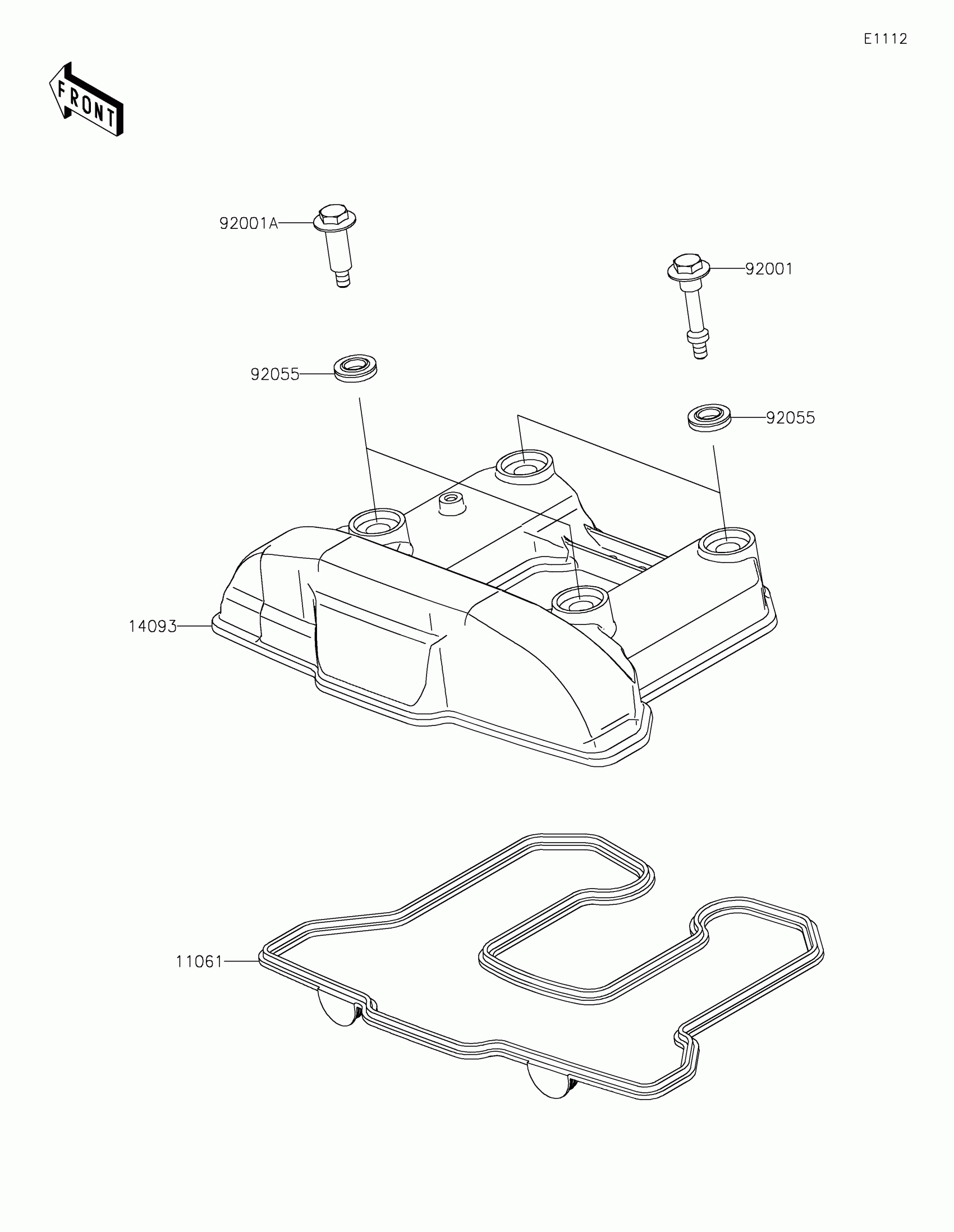

Find the part on the Cylinder Head Cover diagram for your 2010 Kawasaki KLR™650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2010 Kawasaki KLR™650 Cylinder Head Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,HEAD COVER

11009-1365

1
Out of stock

14091

COVER,HEAD

14091-0593

1
Out of stock

92001

BOLT,L=46.5

92001-1853

1
Out of stock

92001A

BOLT,L=34.5

92001-1854

1
Out of stock

92055

RING-O,HEAD COVER BOLT

92055-0195

1
Out of stock
