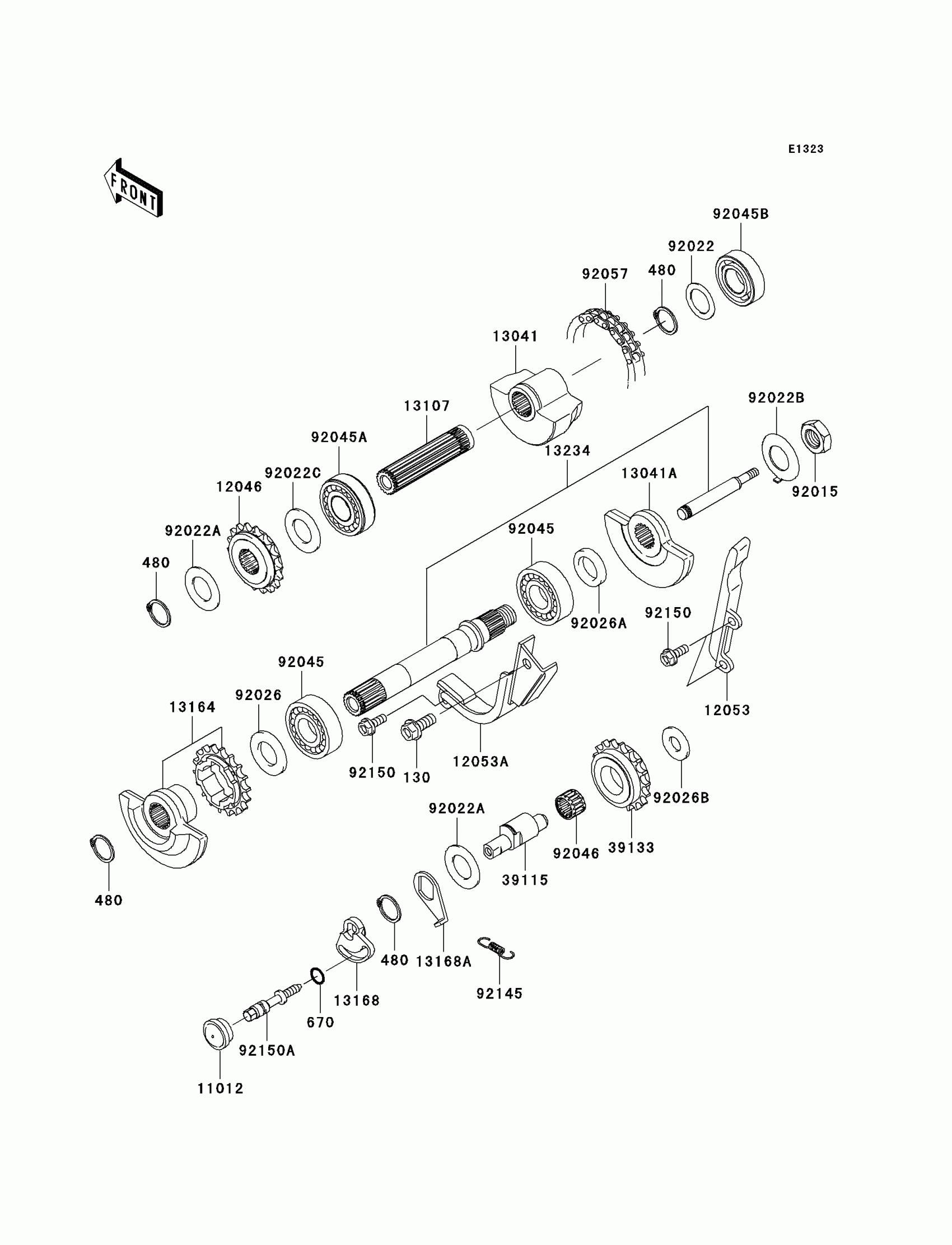

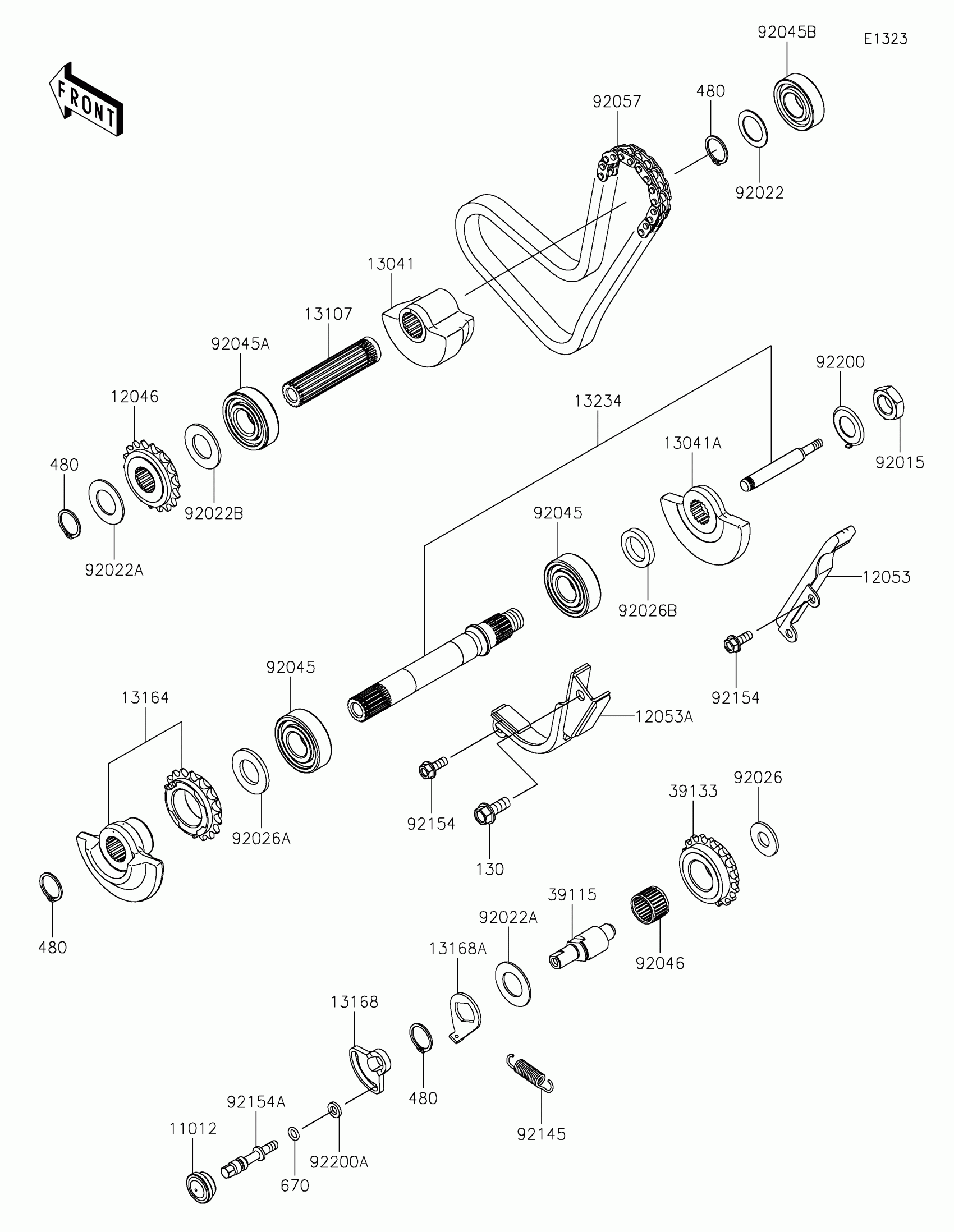

Kawasaki KLR™650 Balancer Diagram

#

Description
Price

130

BOLT-FLANGED,8X20

130BA0820

$3.04

480

CIRCLIP-TYPE-C,20MM

480J2000

$2.12

670

O RING,7MM

670B1507

$0.98

11012

CAP

11012-1369

$4.14

12046

SPROCKET,BALANCER,18T

12046-1165

$96.20

12053

GUIDE-CHAIN,RR

12053-1111

$35.47

12053A

GUIDE-CHAIN,FR

12053-1175

$52.02

13041

BALANCER,RR

13041-1053

$144.36

13041A

BALANCER,FR,RH

13041-1060

$113.20

13107

SHAFT,BALANCER,RR

13107-1104

$80.08

13164

BALANCER-COMP,FR,LH

13164-1007

$183.55

13168

LEVER,IDLER SHAFT

13168-0158

Unavailable

13168A

LEVER

13168-1238

Unavailable

13234

SHAFT-COMP,BALANCER,FR

13234-0035

$138.98

39115

SHAFT-IDLER

39115-1077

$68.06

39133

SPROCKET-IDLER,IDLER

39133-1060

$97.00

92015

NUT,16MM

92015-1477

$7.93

92022

WASHER,20.5X30X1,STEEL

92022-112

$6.75

92022A

WASHER,20.3X36X1.5

92022-1489

$5.42

92022B

WASHER

92022-1651

Unavailable

92022C

WASHER,20.2X36X2

92022-1880

$7.25

92026

SPACER,20.2X36X3

92026-1208

$11.66

92026A

SPACER,20.2X30X5

92026-1245

$14.36

92026B

SPACER

92026-1462

$10.63

92045

BEARING-BALL,20X47X14

92045-0070

$25.86

92045A

BEARING-BALL

92045-0071

$25.86

92045B

BEARING-BALL,20X42X12

92045-0072

$11.19

92046

BEARING-NEEDLE

92046-1234

$18.66

92057

CHAIN,BALANCER,BF06HX70L

92057-1158

$339.85

92145

SPRING

92145-0529

$5.80

92150

BOLT,FLANGED,6X16

92150-1394

$3.59

92150A

BOLT,IDLER LEVER

92150-1923

$15.97
