2023 Kawasaki KLR®650 Adventure Engine Mount Diagram

← All diagrams

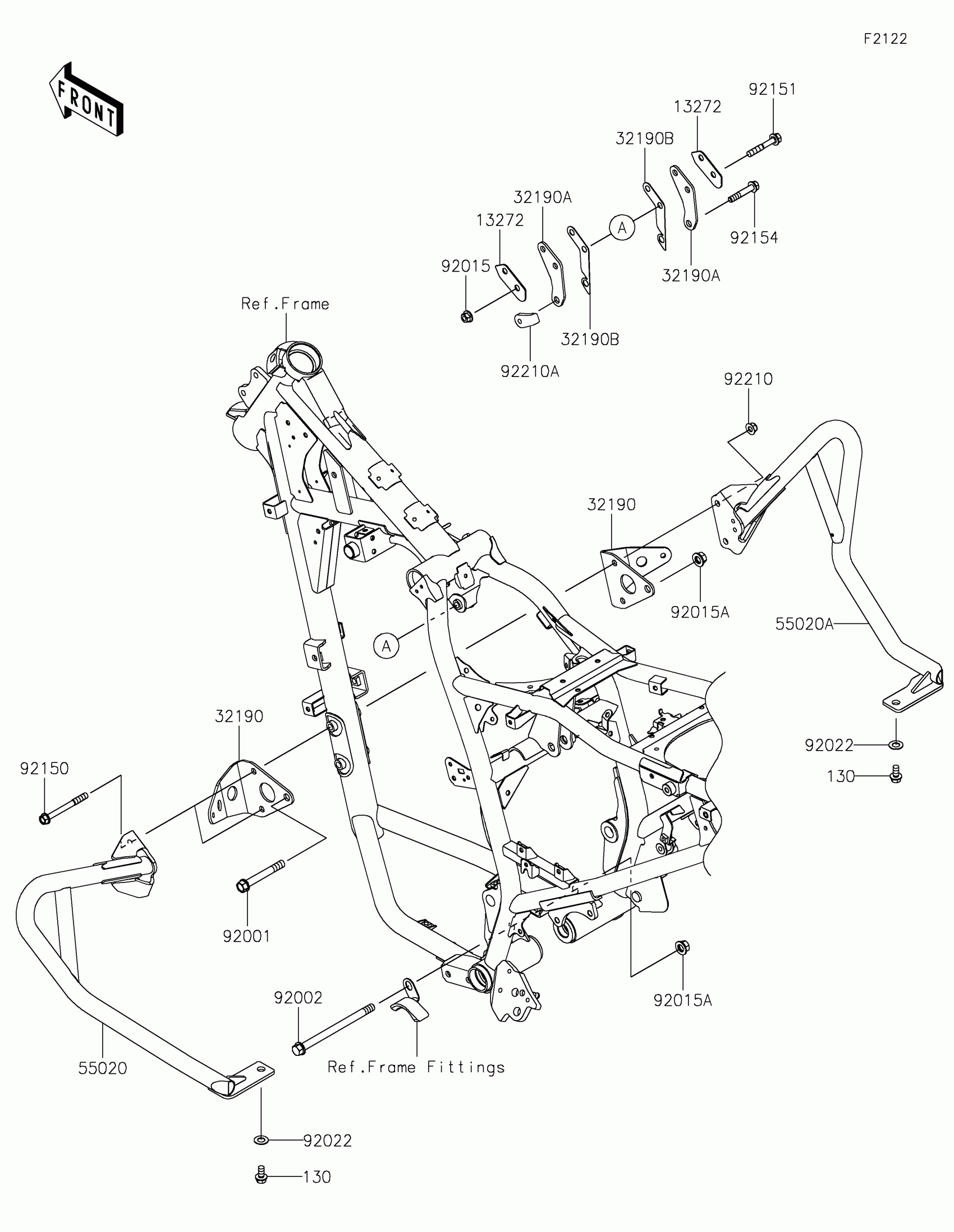

Find the part on the Engine Mount diagram for your 2023 Kawasaki KLR®650 Adventure, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2023 Kawasaki KLR®650 Adventure Engine Mount Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13272

PLATE

13272-3910

1
Out of stock

32190

BRACKET-ENGINE,LWR

32190-0858

1
Out of stock

32190A

BRACKET-ENGINE,UPP

32190-0859

1
Out of stock

32190B

BRACKET-ENGINE

32190-0860

1
Out of stock

55020

GUARD,LH

55020-2341

1
Out of stock

55020A

GUARD,RH

55020-2342

1
Out of stock

92001

BOLT,10X75

92001-4021

1
Out of stock

92002

BOLT,10X145

92002-1348

1
Out of stock

92015

NUT,FLANGED,8MM

92015-1406

1
Out of stock

92015A

NUT,FLANGED,10MM

92015-1415

1
Out of stock

92022

WASHER,10.5X20X1

92022-239

1
Out of stock

92150

BOLT,8X80

92150-1162

1
Out of stock

92151

BOLT,8X50

92151-1463

1
Out of stock

92154

BOLT,FLANGED,8X45

92154-3733

1
Out of stock

92210

NUT,FLANGED,LOCK,8MM

92210-0159

1
Out of stock

92210A

NUT,PLATE,8MM

92210-0608

1
Out of stock

130

BOLT-FLANGED,8X16

130CA0816

1

$2.05

In stock
