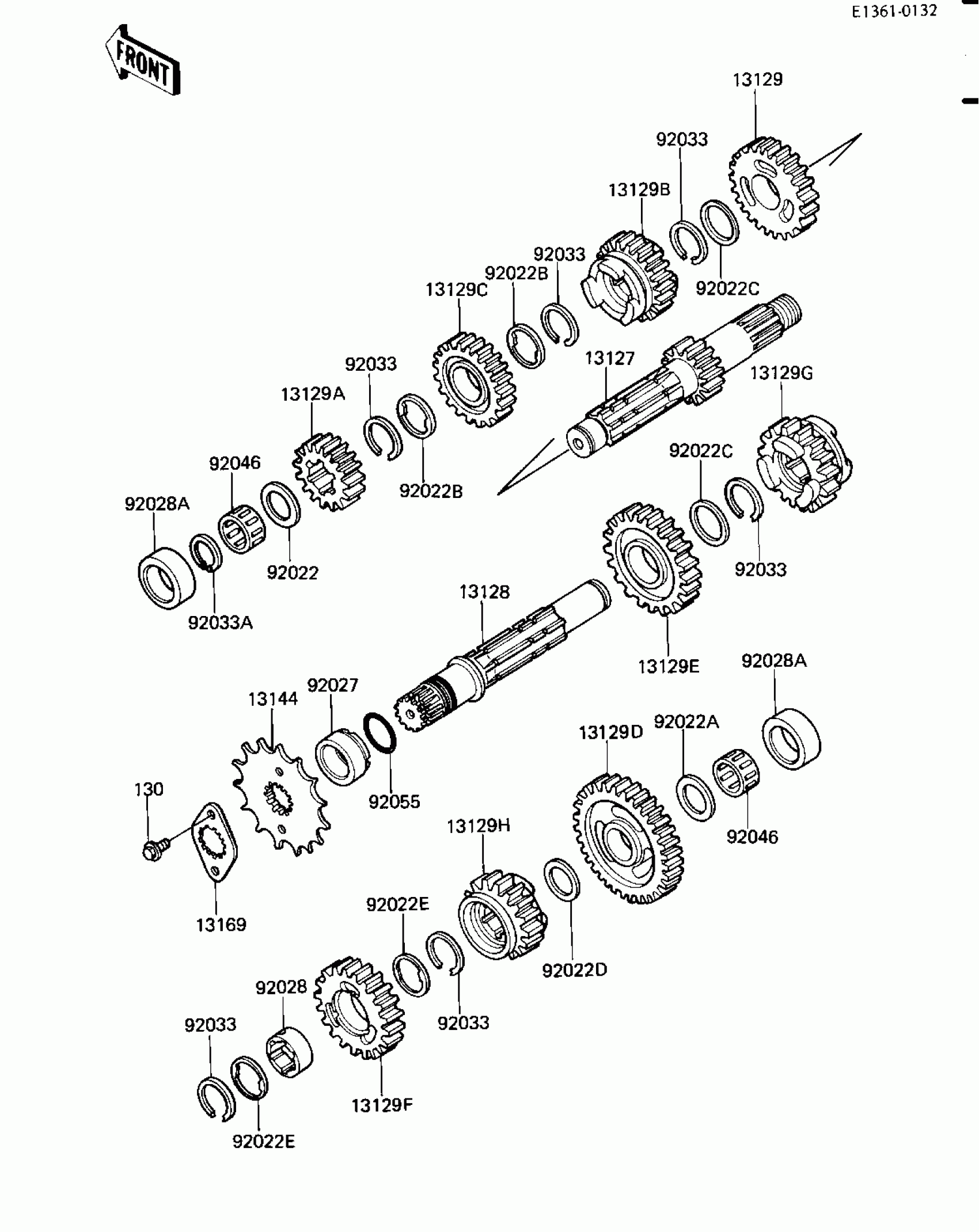

Kawasaki KL600 TRANSMISSION Diagram

#

Description
Price

13127

SHAFT-TRANSMISSION IN

13127-1107

Unavailable

13128

SHAFT-TRANSMISSION OU

13128-1104

Unavailable

13129

GEAR,INPUT TOP,24T

13129-1410

Unavailable

13129A

GEAR,INPUT 2ND,17T

13129-1518

$113.38

13129B

GEAR,INPUT 3RD,22T

13129-1519

Unavailable

13129C

GEAR,INPUT 4TH,22T

13129-1520

Unavailable

13129D

GEAR,OUTPUT LOW,39T

13129-1522

Unavailable

13129E

GEAR,OUTPUT 2ND,26T

13129-1523

Unavailable

13129F

GEAR,OUTPUT 3RD,26T

13129-1524

Unavailable

13129G

GEAR,OUTPUT 4TH,21T

13129-1525

Unavailable

13129H

GEAR,OUTPUT TOP,19T

13129-1575

$149.50

13144

SPROCKET-OUTPUT,15T

13144-1103

Unavailable

13169

PLATE,SPROCKET

13270-1060

$6.69

92022

WASHER,20.5X30X1,STEEL

92022-112

$6.75

92022A

WASHER,20.3X29X0.5

92022-1479

$4.46

92022B

WASHER,TOOTHED,25.3X29.5X0.5

92022-1482

$4.17

92022C

WASHER,25.3X30X0.5

92022-159

$8.37

92022D

WASHER,20.5X25.5X0.5

92022-252

$4.67

92022E

WASHER,TOOTHED,22.5X31X0.5

92024-038

$4.67

92027

COLLAR,25X32X15.3

92027-1800

$25.44

92028

BUSHING,OUTPUT 3RD GEAR

92028-1299

$29.61

92028A

BUSHING,26X35X14

92028-131

$33.95

92033

RING-SNAP,24MM

92033-026

$6.70

92033A

RING-SNAP,18MM

92033-029

$7.48

92046

BEARING-NEEDLE,KT202614

92046-1170

$13.69

130

BOLT-FLANGED

130G0608

Unavailable
