1984 Kawasaki KL600 Gear Change Drum & Forks Diagram

← All diagrams

Find the part on the Gear Change Drum & Forks diagram for your 1984 Kawasaki KL600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

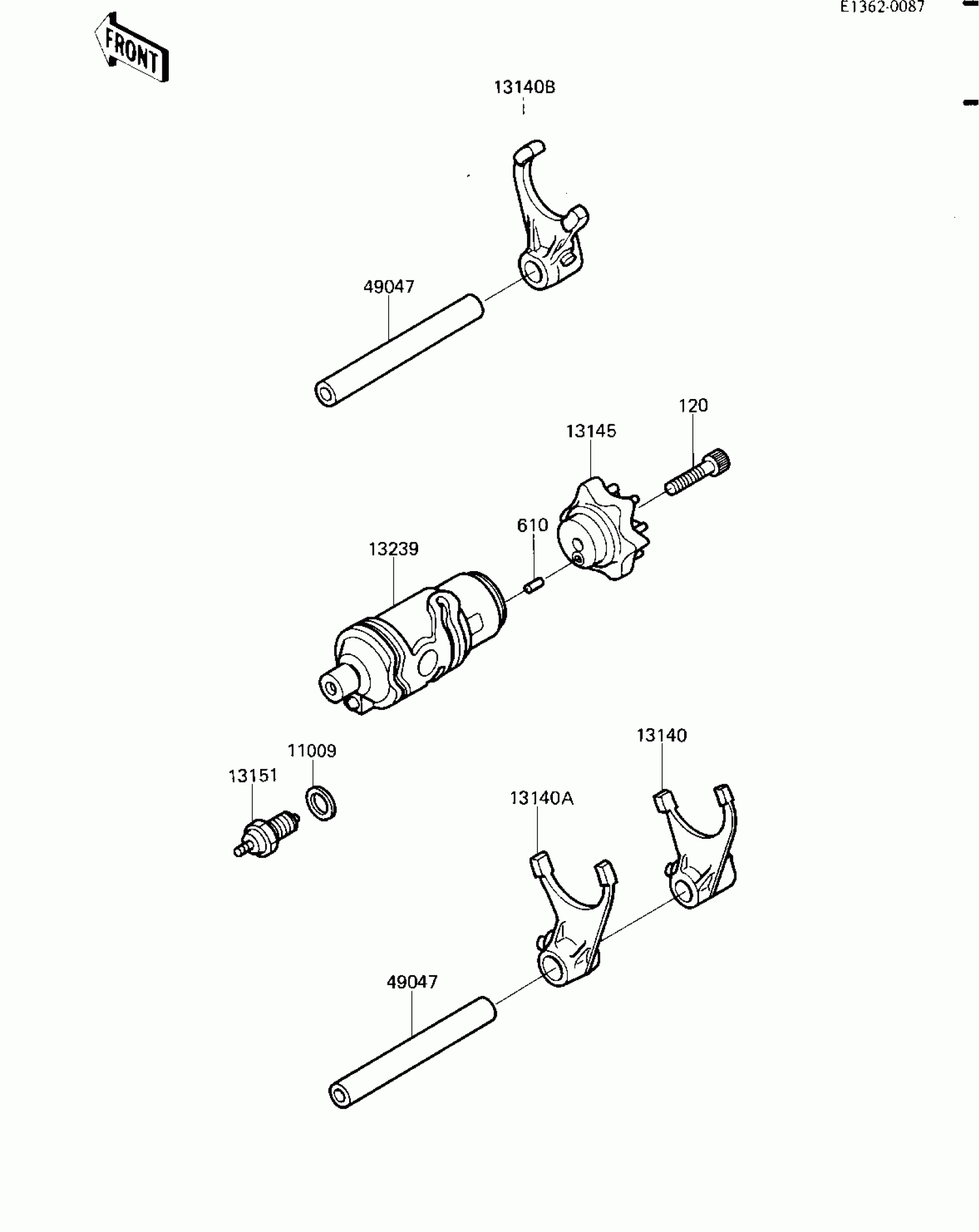

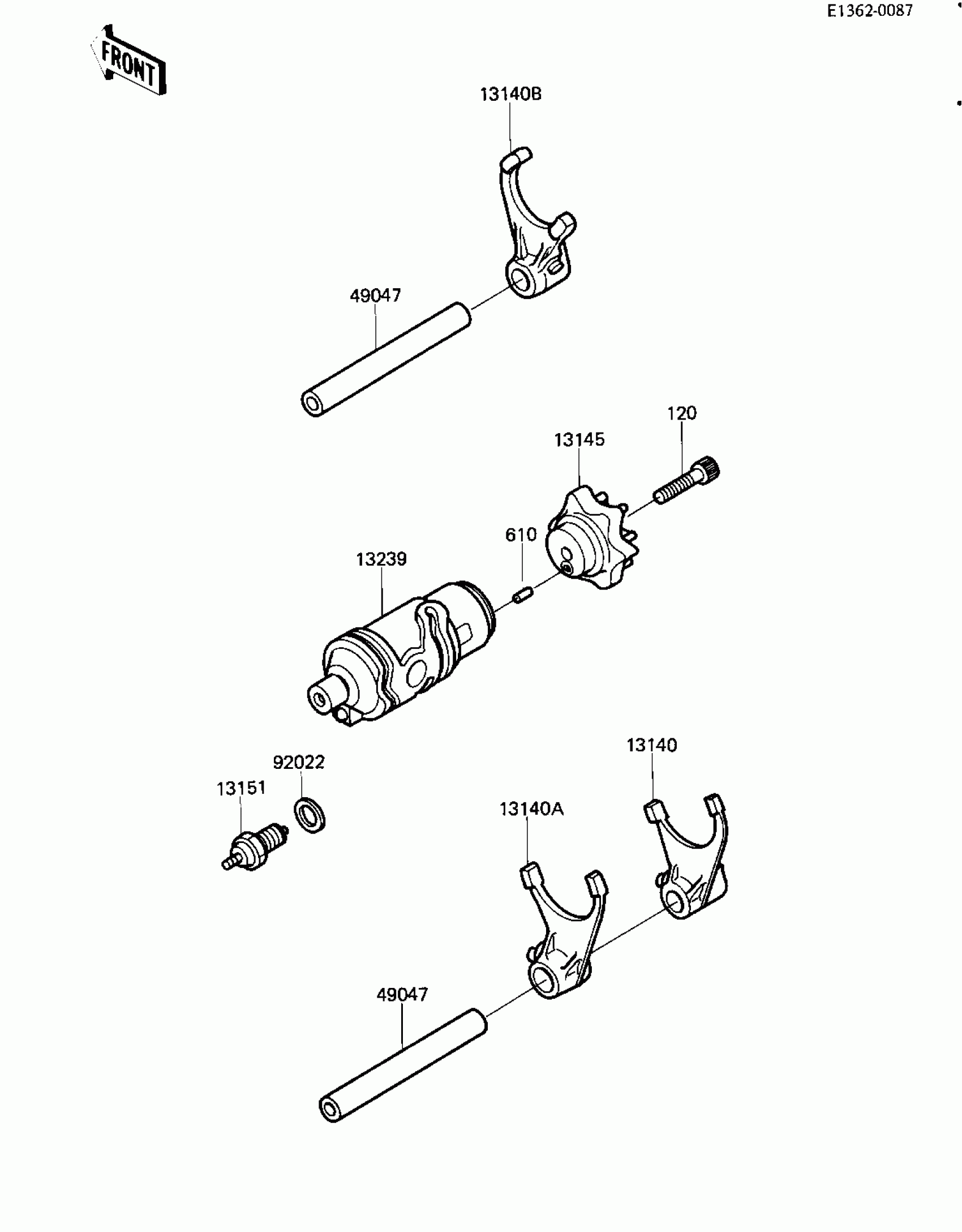

1984 Kawasaki KL600 Gear Change Drum & Forks Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13140

FORK-SHIFT,LOW

13140-1023

1
Out of stock

13140A

FORK-SHIFT,2ND&3RD

13140-1024

1
Out of stock

13140B

FORK-SHIFT,4TH&TOP

13140-1025

1
Out of stock

13145

CAM-CHANGE DRUM

13145-1051

1
Out of stock

13151

SWITCH-COMP,NEUTRAL

13151-1007

1
Out of stock

13239

DRUM-ASSY-CHANGE

13239-1103

1
Out of stock

49047

ROD-SHIFT,L=93.7

49047-1003

1
Out of stock

92022

GASKET,10.5X16X1

92065-058

1
Out of stock

120

BOLT-SOCKET,6X25

120P0625

1
Out of stock

610

ROLLER,4X10

610A0410

1
Out of stock
