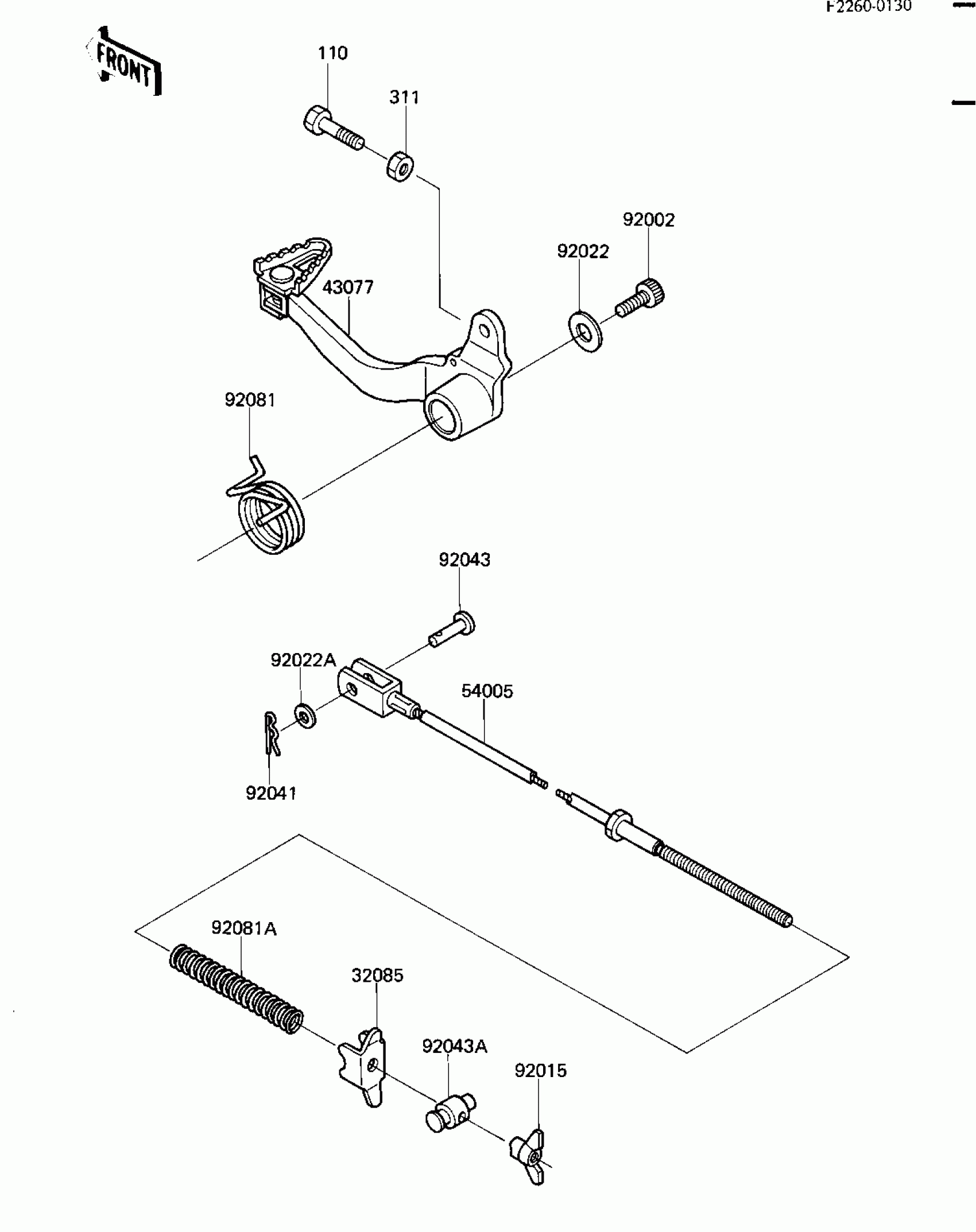

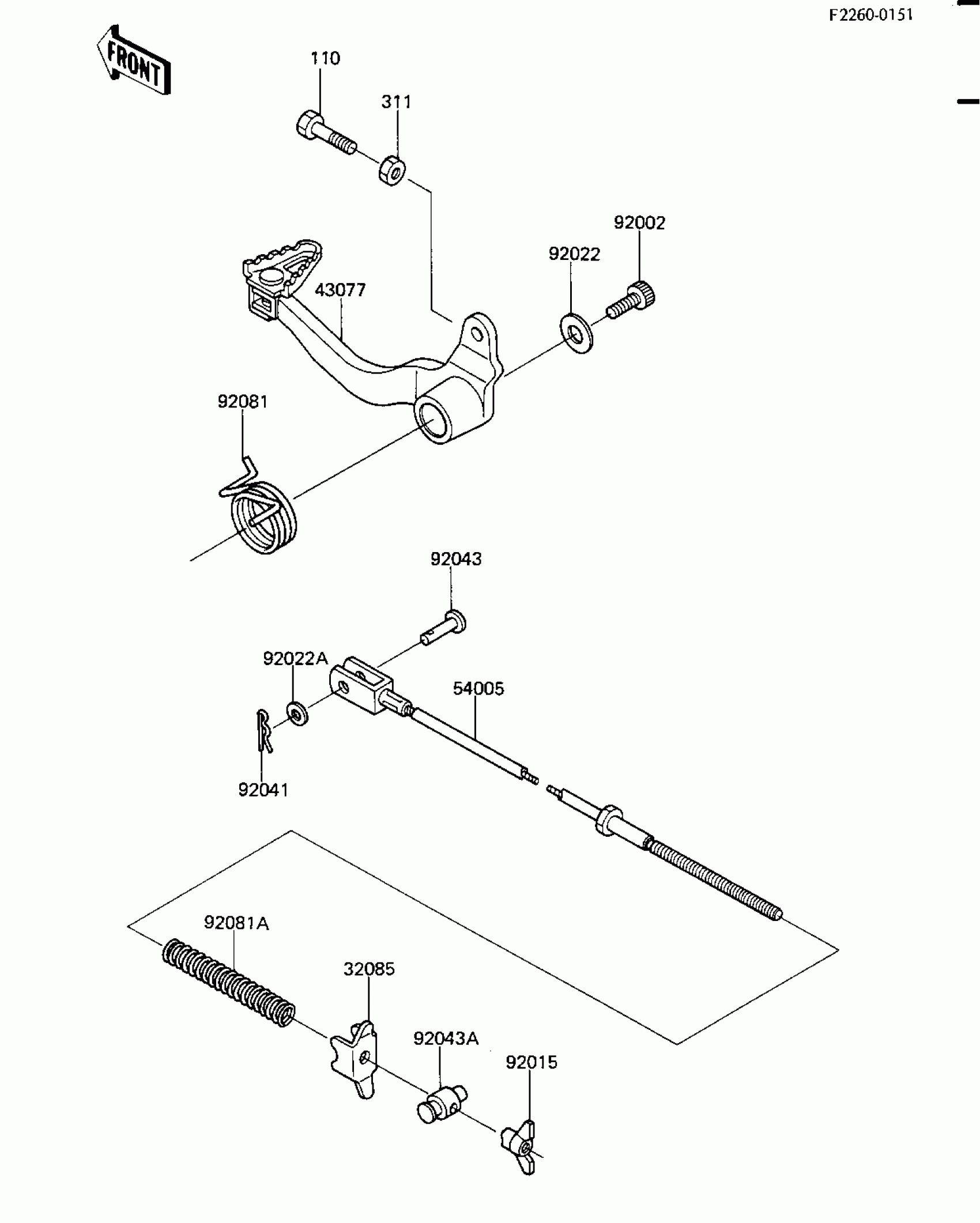

Find the part on the Brake Pedal diagram for your 1984 Kawasaki KL600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1984 Kawasaki KL600 Brake Pedal Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32085

STOPPER,BRAKE ROD

32085-1115

1
Out of stock

43077

1

$197.92

In stock

54005

CABLE-BRAKE,RR

54005-1110

1

$35.64

In stock

92002

BOLT,SOCKET,6X12

92002-1174

1
Out of stock

92015

NUT,WING,6MM

92015-4004

1

$5.81

In stock

92022

WASHER,6.5X18.5X2

92022-1462

1
Out of stock

92022A

1

$1.19

In stock

92041

COTTER,2.0X15

92041-1052

1

$0.94

In stock

92043

PIN,6X17

92043-107

1
Out of stock

92043A

PIN,BRAKE ROD

92043-1139

1
Out of stock

92081

SPRING,BRAKE PEDAL RE

92081-1608

1
Out of stock

92081A

SPRING,REAR BRAKE CABLE

92081-1610

1
Out of stock

110

BOLT-UPSET,6X25,BLACK

112C0625

1
Out of stock

311

NUT-HEX,6MM,BLACK

311C0600

1
Out of stock
