1984 Kawasaki KL600 Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1984 Kawasaki KL600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

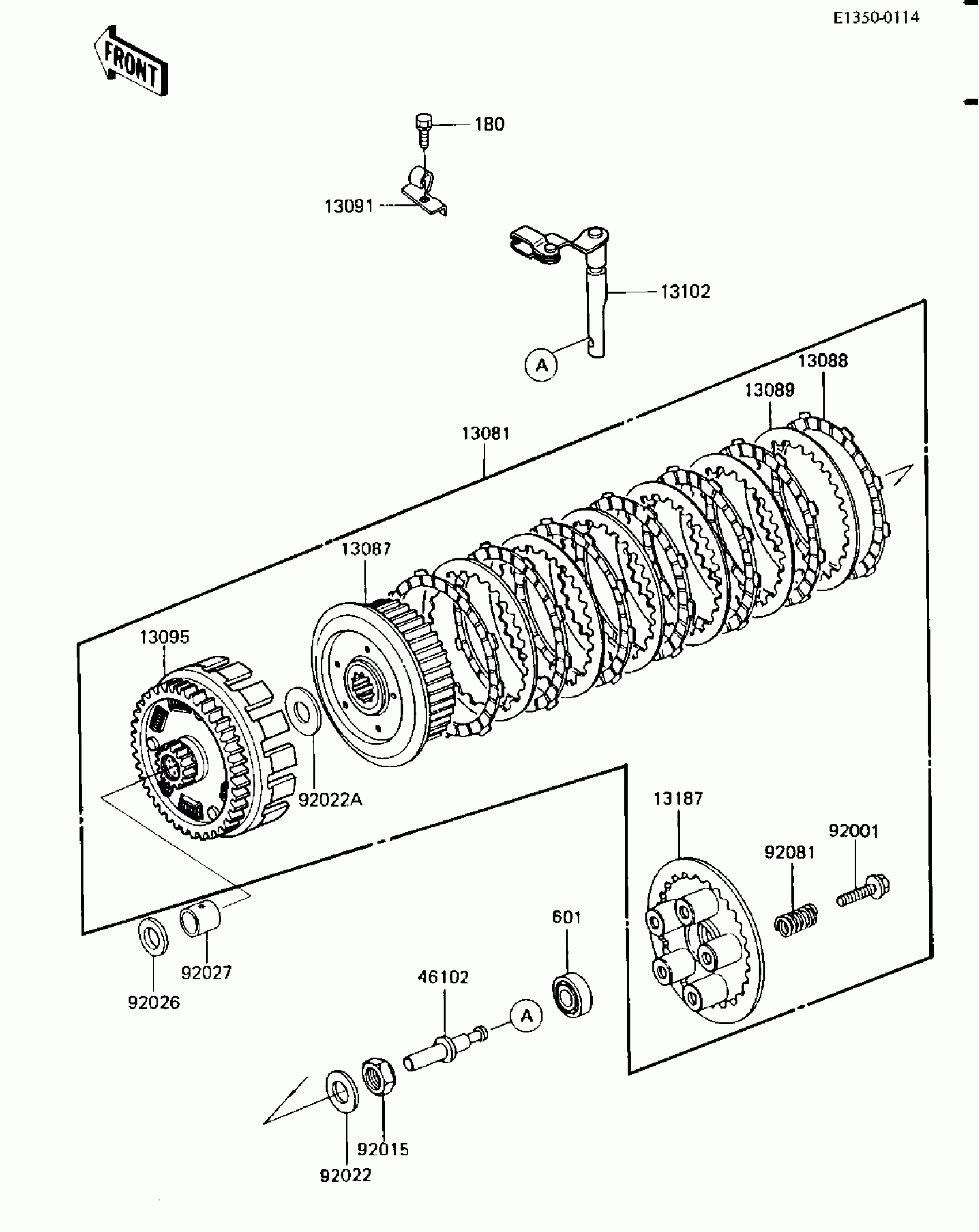

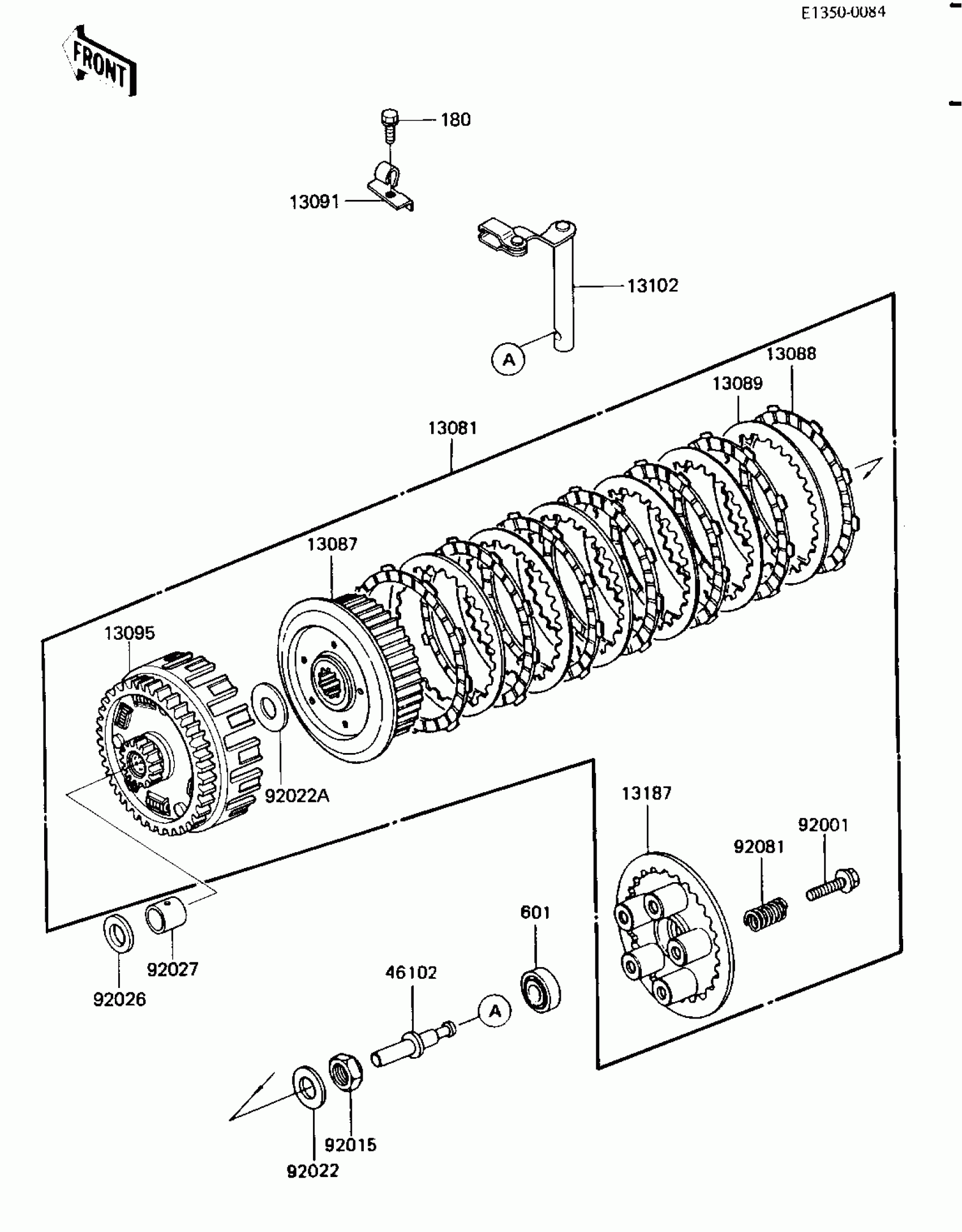

1984 Kawasaki KL600 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13081

CLUTCH-ASSY

13081-1159

1
Out of stock

13087

HUB-CLUTCH

13087-1052

1
Out of stock

13088

PLATE-FRICTION

13088-040

1

$9.95

In stock

13089

PLATE-CLUTCH,T=2.0

13089-026

1

$10.14

In stock

13091

HOLDER,CLUTCH CABLE

13091-1257

1
Out of stock

13095

HOUSING-COMP-CLUTCH

13095-5003

1
Out of stock

13102

RELEASE-COMP-CLUTCH

13102-1058

1
Out of stock

13187

PLATE-CLUTCH OPERATING

13187-1012

1
Out of stock

46102

ROD,CLUTCH

46102-1030

1

$27.10

In stock

92001

BOLT,FLANGED,6X18

92001-1066

1

$4.93

In stock

92015

NUT,20MM

92015-1555

1

$10.37

In stock

92022

WASHER,20.3X36X2.3

92022-1116

1

$6.82

In stock

92022A

WASHER,25.5X52.6X2

92022-1476

1

$8.04

In stock

92026

SPACER,25.1X38X4

92026-1206

1

$19.69

In stock

92027

COLLAR,25X30X29.2

92027-1684

1

$17.97

In stock

92081

SPRING,CLUTCH

92081-1864

1

$7.53

In stock

180

BOLT-UPSET-WS

180J0612

1
Out of stock

601

1

$12.85

In stock
