1976 Kawasaki KH500-A8 Turn Signals Diagram

← All diagrams

Find the part on the Turn Signals diagram for your 1976 Kawasaki KH500-A8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

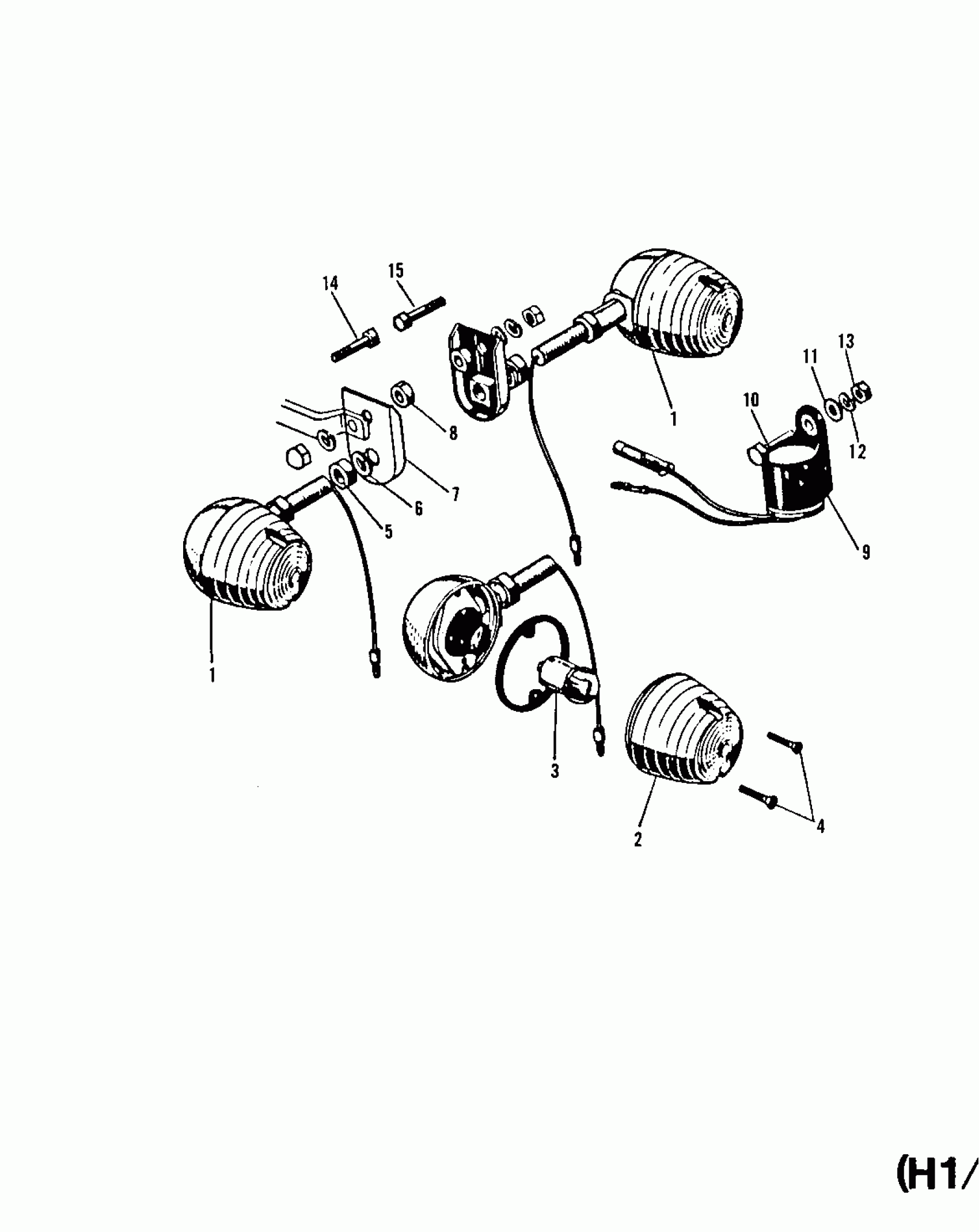

1976 Kawasaki KH500-A8 Turn Signals Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$158.70

In stock

2

1

$15.64

In stock

3

BULB 12V 8W

92069-043

1
Out of stock

4

SCREW OVL CNTSNK 3X15

222B0315A

1
Out of stock

5

NUT-HEX-FINE,10MM

315B1000

1
Out of stock

6

WASHER SPRING 10MM

461F1000

1
Out of stock

7

BRACKET TURN SIG LAMP

23051-011

1
Out of stock

8

1

$1.66

In stock

9

RELAY TURN SIGNAL

27002-008

1
Out of stock

10

BOLT-UPSET,6X16

112G0616

1
Out of stock

11

WASHER PLAIN 6MM

411B0600

1
Out of stock

12

WASHER SPRING 6MM

461F0600

1
Out of stock

13

NUT 6MM

311B0600

1
Out of stock

14

BOLT,FLANGED,8X60

92001-1581

1

$4.53

In stock

15

BOLT,8X55

92001-1386

1
Out of stock
