1976 Kawasaki KH500-A8 Ignition/generator/regulator Diagram

← All diagrams

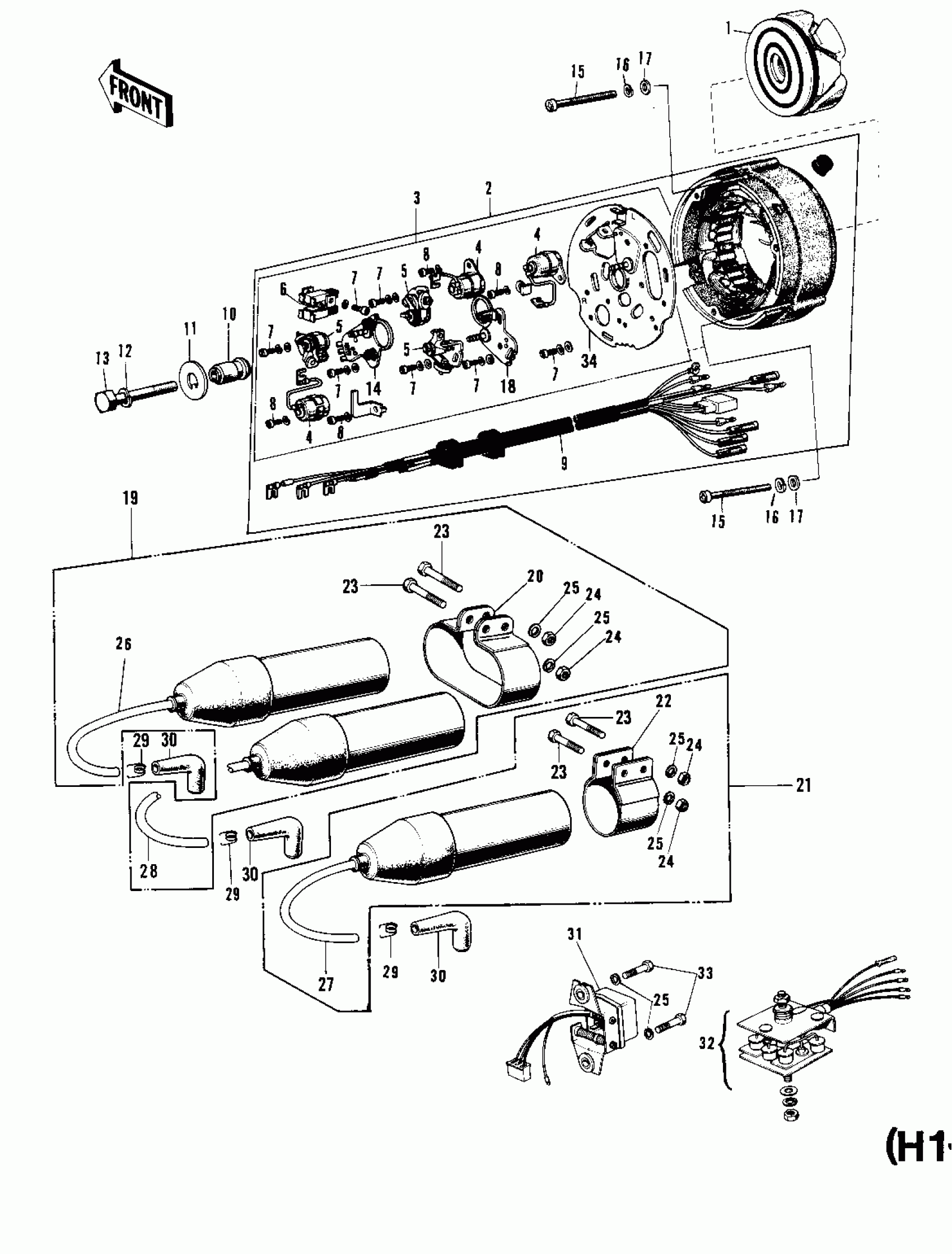

Find the part on the Ignition/generator/regulator diagram for your 1976 Kawasaki KH500-A8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Kawasaki KH500-A8 Ignition/generator/regulator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ROTOR

21007-016

1
Out of stock

2

YOKE ASSY

21076-012

1

$485.91

In stock

3

BREAKER ASSY

21018-001

1

$111.30

In stock

4

CONDENSER

21013-015

1

$8.66

In stock

5

1

$68.47

In stock

6

BRUSH CARBON

21088-009

1
Out of stock

7

SCREW PAN HEAD 4X8

21085-004

1
Out of stock

7

SCREW PAN HEAD 4X8

220B0408

1
Out of stock

8

UNAVAILABLE IN PRICE BOOK

21085-005

1
Out of stock

8

1

$1.46

In stock

9

WIRING HARNESS-MAG

21029-021

1

$43.38

In stock

10

CAM-MAGNETO

21103-005

1

$73.63

In stock

11

CAM PLATE

21106-003

1
Out of stock

12

WASHER SPRING 8MM

461F0800

1
Out of stock

13

BOLT,FLANGED,8X70

92001-1583

1
Out of stock

13

BOLT,FLANGED,8X70

92001-1583

1
Out of stock

14

1

$15.58

In stock

15

SCREW PAN HEAD 5X55

220B0555A

1
Out of stock

16

WASHER SPRING 5MM

461F0500

1
Out of stock

17

WASHER-PLAIN,5MM

411B0500

1
Out of stock

18

PLATE,R.H BREAKER

21156-006

1

$14.95

In stock

19

1

$114.39

In stock

20

1

$20.12

In stock

21

1

$74.32

In stock

22

1

$13.10

In stock

23

BOLT-UPSET,6X40

112G0640

1
Out of stock

24

NUT 6MM

311B0600

1
Out of stock

25

WASHER SPRING 6MM

461F0600

1
Out of stock

26

1

$16.59

In stock

27

CORD-HIGH TENSION,CNT

21133-021

1
Out of stock

28

1

$9.08

In stock

29

1

$1.44

In stock

30

CAP-SPARK PLUG

21130-009

1

$20.48

In stock

31

REGULATOR VOLTAGE

21072-004

1

$249.31

In stock

32

RECTIFIER

21061-008

1

$193.49

In stock

33

BOLT-UPSET

112G0618

1
Out of stock

34

PLATE,YOKE

21155-006

1
Out of stock
