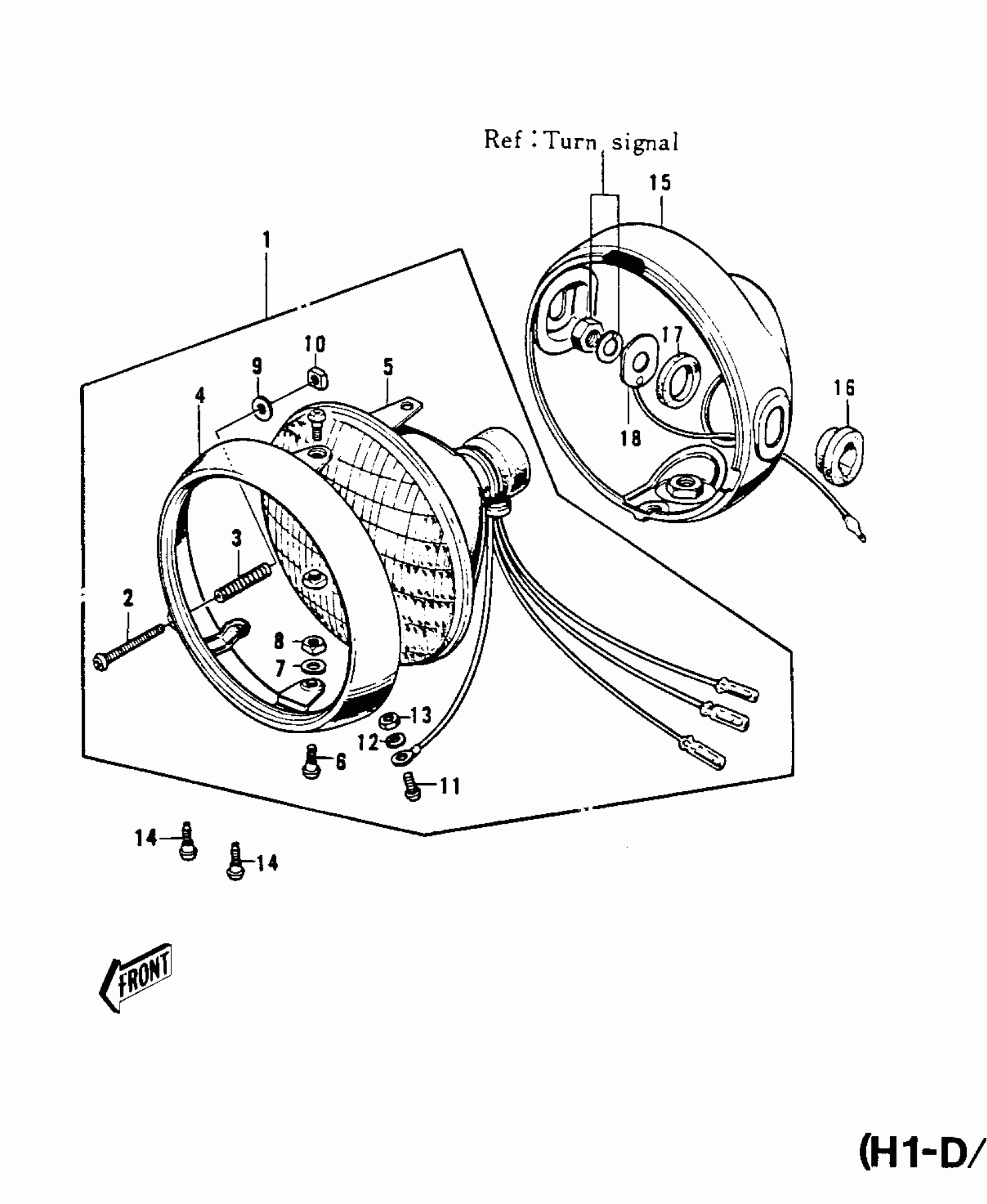

Kawasaki KH500-A8 HEADLIGHT (H1-D/E/F) Diagram

#

Description
Price

1

LAMP UNIT-HEAD

23003-018

$148.48

2

SCREW,FOCUS ADJUSTING

23019-021

$4.17

3

SPRING,FOCUS ADJUSTING

23014-005

$3.19

4

RIM-HEAD LAMP

23006-034

Unavailable

5

SEALED BEAM UNIT

23007-043

$161.69

6

SCREW,PAN HEAD,5X12

23019-023

$4.78

7

WASHER,PLAIN,5MM

23021-012

Unavailable

8

NUT,5MM

23020-023

Unavailable

9

WASHER,4.1X8X0.8

23021-004

Unavailable

10

NUT,4MM,FOCUS ADJUST

23020-018

$3.54

11

SCREW-PAN-CROS,3X6

220B0306

Unavailable

12

WASHER SPRING 3MM

461F0300

Unavailable

13

NUT-HEX

311B0300

$0.46

14

SCREW,SPECIAL,5X14

23019-022

$1.54

15

BODY-HEAD.LAMP,BLACK

23005-038-21

$238.41

16

DAMPER RUBBER A

23066-001

Unavailable

17

DAMPER RUBBER

23066-005

Unavailable

18

COLLAR

23076-005

$50.07
