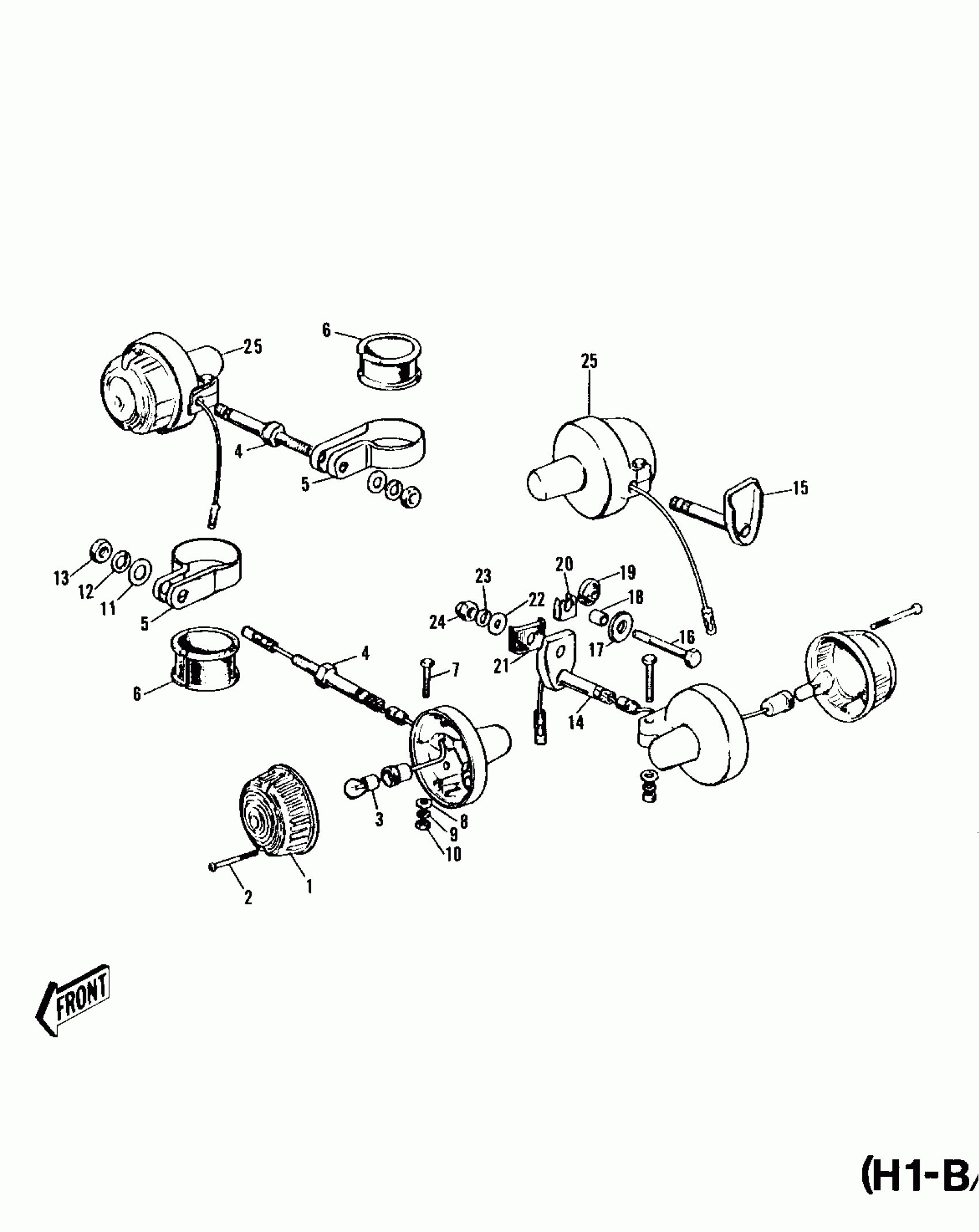

Kawasaki KH500-A8 TURN SIGNALS (H1-B/C) Diagram

#

Description
Price

1

LENS-SIGNAL LAMP,"6.1445"MARK

23048-1024

$10.96

1

LENS-SIGNAL LAMP,"6.1445"MARK

23048-1024

$10.96

2

SCREW-PAN-CROS

220E0430

Unavailable

3

BULB,12V 32CP(23W)

92069-055

$5.18

4

BRACKET,TURN SIGNAL

23051-047

$98.00

4

BRACKET,TURN SIGNAL

23051-047

$98.00

5

BKT-FRT SIGNAL LAMP

23051-021

Unavailable

6

DAMPER RUBBER-FR SGNL

92075-088

$6.76

7

BOLT-UPSET

112G0630

Unavailable

8

WASHER-PLAIN-SMALL,6MM

410B0600

$0.96

9

WASHER SPRING 6MM

461F0600

Unavailable

10

NUT 6MM

311B0600

Unavailable

11

WASHER-PLAIN-SMALL,12MM

410B1200

Unavailable

12

WASHER-SPRING,12MM

461F1200

Unavailable

13

NUT,12MM

314N1200A

Unavailable

13

NUT-HEX-FINE

315B1200

Unavailable

14

BKT-RR SIGNL LAMP,R.H

23051-018

Unavailable

15

BKT-RR SIGNL LAMP,L.H

23051-019

Unavailable

16

BOLT,HEX HEAD,10X50

92001-1254

$3.33

17

WASHER-PLAIN

92022-206

$10.78

18

COLLAR

92027-137

Unavailable

19

DAMPER RUBBER,A

92075-114

Unavailable

20

PLATE-EARTH

23061-003

$4.15

21

DAMPER RUBBER B

92075-082

Unavailable

22

WASHER-PLAIN,10MM

411B1000

Unavailable

23

WASHER SPRING 10MM

461F1000

Unavailable

24

NUT (10MM)

311B1000

Unavailable

25

LAMP-TURN SIGNAL

23040-029

$153.16
