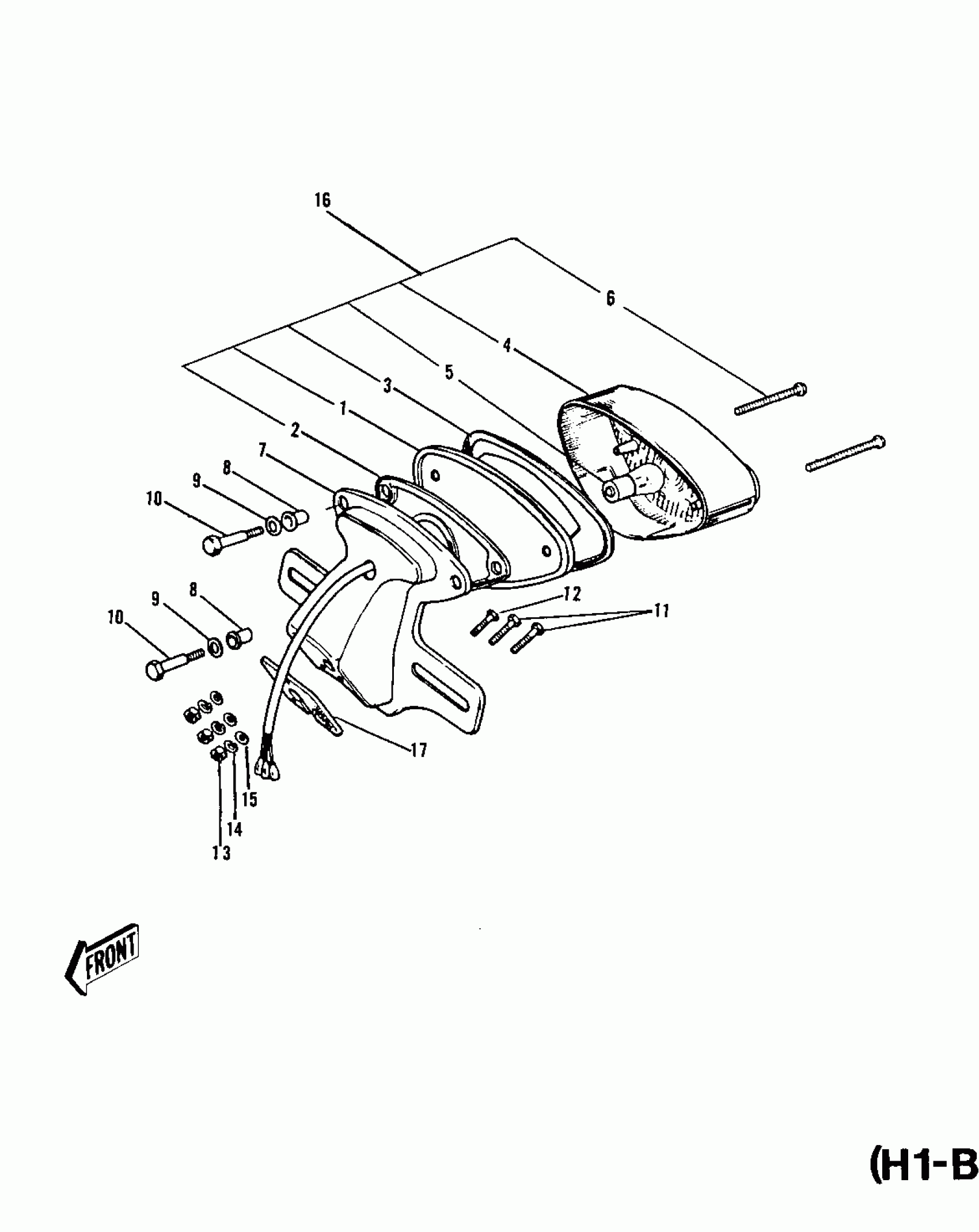

Find the part on the Taillight diagram for your 1976 Kawasaki KH500-A8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Kawasaki KH500-A8 Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CASE-TAIL LAMP

23027-029

1
Out of stock

1

CASE-TAIL LAMP

23027-029

1
Out of stock

2

GASKET-TAIL LAMP CASE

23028-015

1
Out of stock

3

GASKET-TAIL LAMP LENS

23028-016

1
Out of stock

4

LENS-TAIL LAMP

23026-022

1
Out of stock

5

BULB,12V 27/8W

92069-059

1
Out of stock

6

SCREW

220R0455

1
Out of stock

7

BKT-LICENSE PLT,BLACK

23036-014-21

1
Out of stock

8

DAMPER RUBBER

92075-091

1
Out of stock

9

WASHER,8.5X20X1.6

92022-1561

1
Out of stock

10

BOLT

92001-105

1
Out of stock

11

BOLT-UPSET,6X40

112G0640

1
Out of stock

12

BOLT,HEX HEAD,6X50

110G0650

1
Out of stock

13

NUT 6MM

312B0600

1
Out of stock

14

WASHER SPRING 6MM

461F0600

1
Out of stock

15

WASHER PLAIN 6MM

411B0600

1
Out of stock

16

LAMP ASSY-TAIL

23025-044

1
Out of stock
