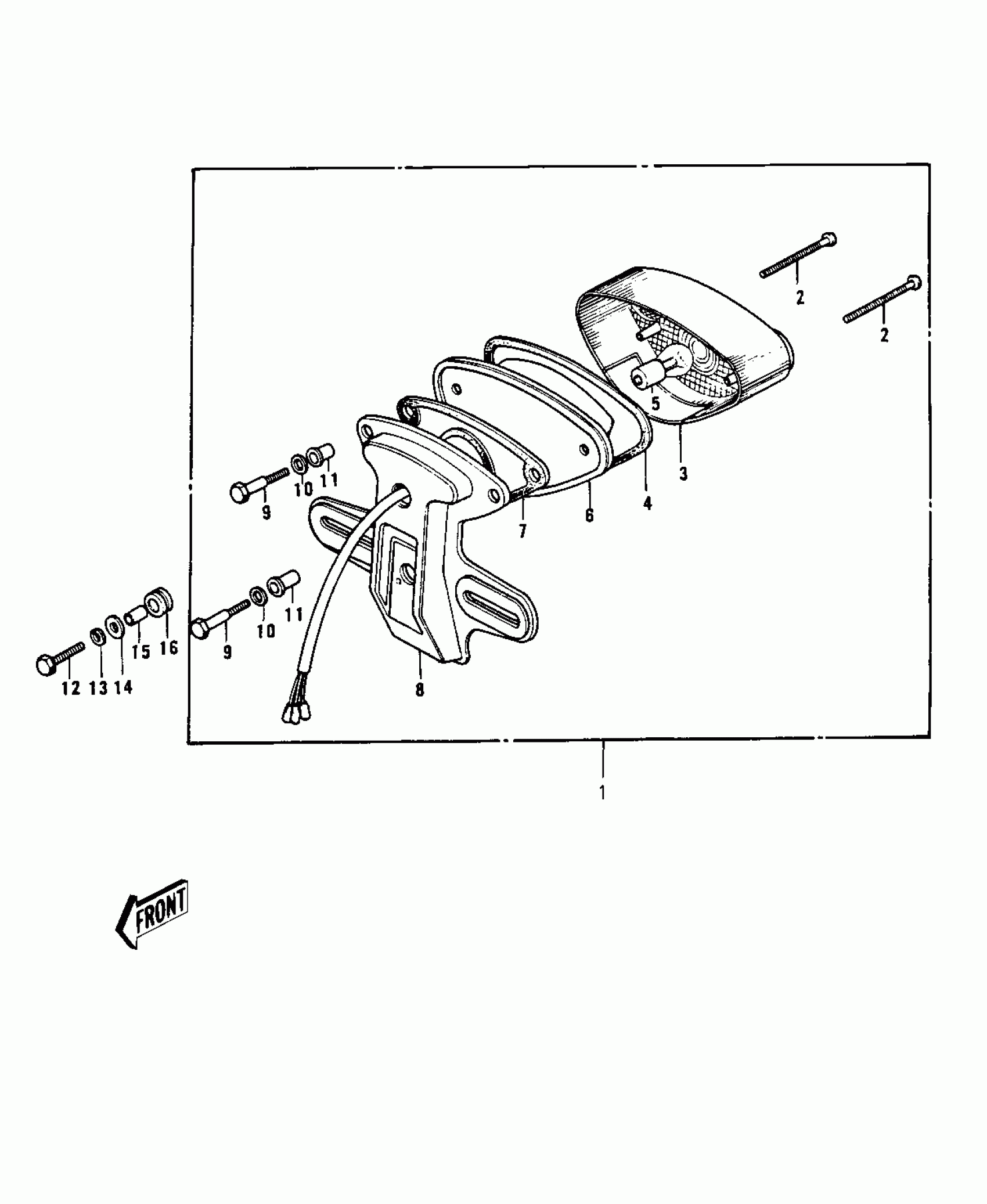

Kawasaki KH500-A8 TAILLIGHT ('73-'75 D/E/F & '76 A8) Diagram

#

Description
Price

1

LAMP ASY,TAIL,BLACK

23024-027-21

$111.57

2

SCREW

220R0455

$4.20

3

LENS-TAIL LAMP

23026-022

Unavailable

4

GASKET-TAIL LAMP LENS

23028-016

Unavailable

5

BULB,12V 27/8W

92069-059

$8.12

6

CASE-TAIL LAMP

23027-029

Unavailable

7

GASKET-TAIL LAMP CASE

23028-015

Unavailable

8

BKT,LICENSE PLT,BLACK

23036-020-21

$53.78

9

BOLT

92001-105

Unavailable

10

WASHER,8.5X20X1.6

92022-1561

$4.31

11

DAMPER RUBBER

92075-091

Unavailable

12

BOLT 6X22

112B0622

Unavailable

13

WASHER SPRING 6MM

461F0600

Unavailable

14

WASHER,6.5X20X1.6

92022-125

$1.02

15

COLLAR 6.8X10X10.5

92027-120

$5.00

16

DAMPER RUBBER

92075-112

$4.31
