1976 Kawasaki KH500-A8 Front HUB Diagram

← All diagrams

Find the part on the Front HUB diagram for your 1976 Kawasaki KH500-A8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

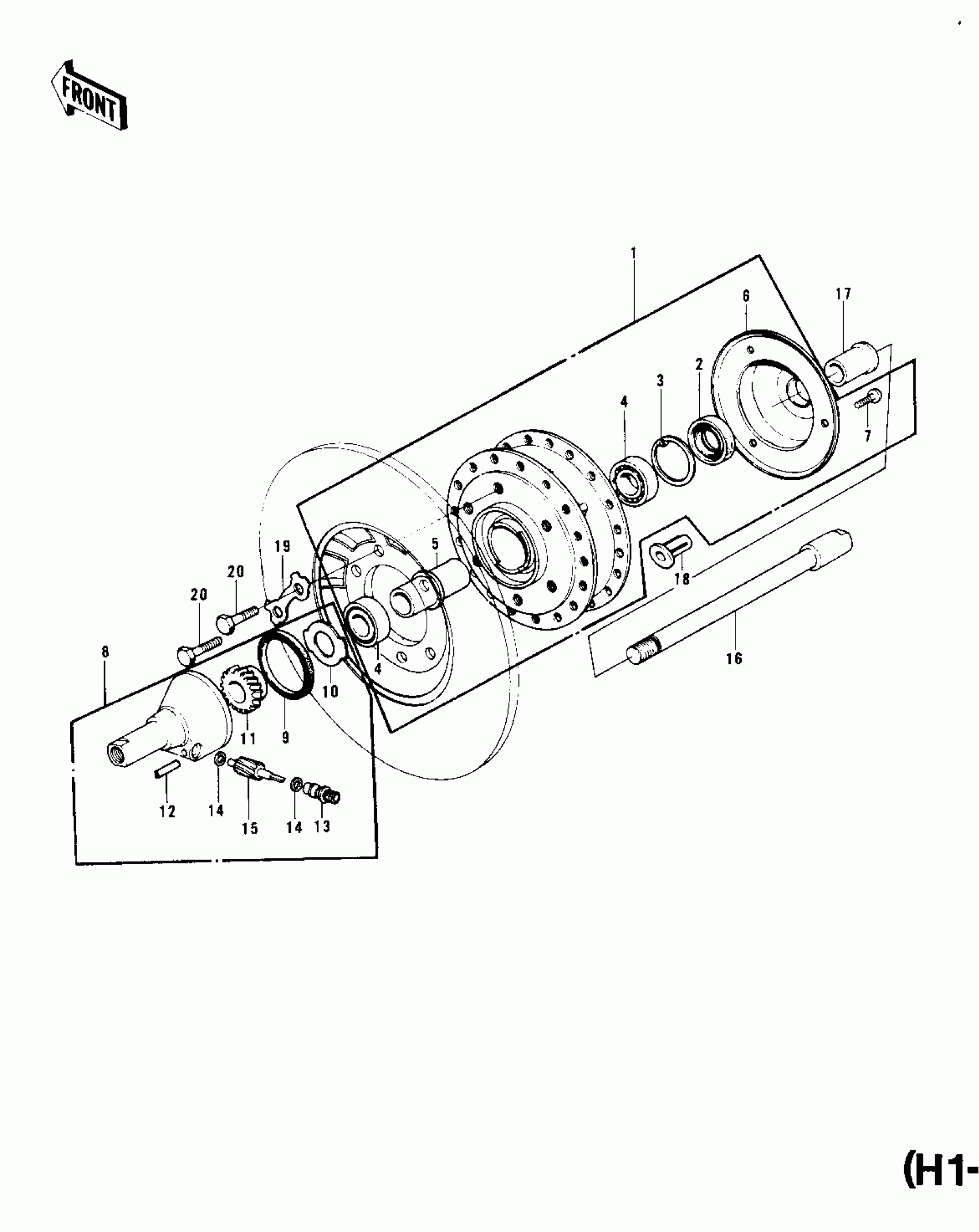

1976 Kawasaki KH500-A8 Front HUB Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DRUM-ASSY,FR BRK,BLK

41034-021-21

1

$192.96

In stock

2

SEAL-OIL,COUPLING

92052-003

1
Out of stock

3

RING-SNAP,40MM

92033-1040

1
Out of stock

4

BEARING-BALL,#6203C3

601B6203

1
Out of stock

5

COLLAR-FRONT DRUM

41039-019

1
Out of stock

6

COVER-BRAKE DRUM DUST

41042-009

1
Out of stock

7

SCREW OVL CNTSNK 5X12

222E0512A

1
Out of stock

8

CASE ASSY-SPEED GEAR

41078-001

1
Out of stock

9

OIL SEAL,VC54656

92050-046

1
Out of stock

10

RECEIVER-SPEEDO GEAR

41064-007

1
Out of stock

11

GEAR-SPEEDOMETER

41059-016

1

$35.27

In stock

12

PIN,SPRING

41082-001

1
Out of stock

13

1

$10.00

In stock

14

WASHER,5.1X9X0.4

41063-001

1

$4.17

In stock

15

PINION-SPEEDOMETER

41060-012

1

$22.88

In stock

16

AXLE-FRONT HUB

41068-036

1
Out of stock

17

COLLAR-FRONT AXLE

41069-018

1
Out of stock

18

CAP-FRONT DRUM HOLE

92102-006

1
Out of stock

19

WASHER-LOCK,8MM

92088-014

1
Out of stock

20

BOLT-HEX HEAD,8X28

92001-104

1
Out of stock
