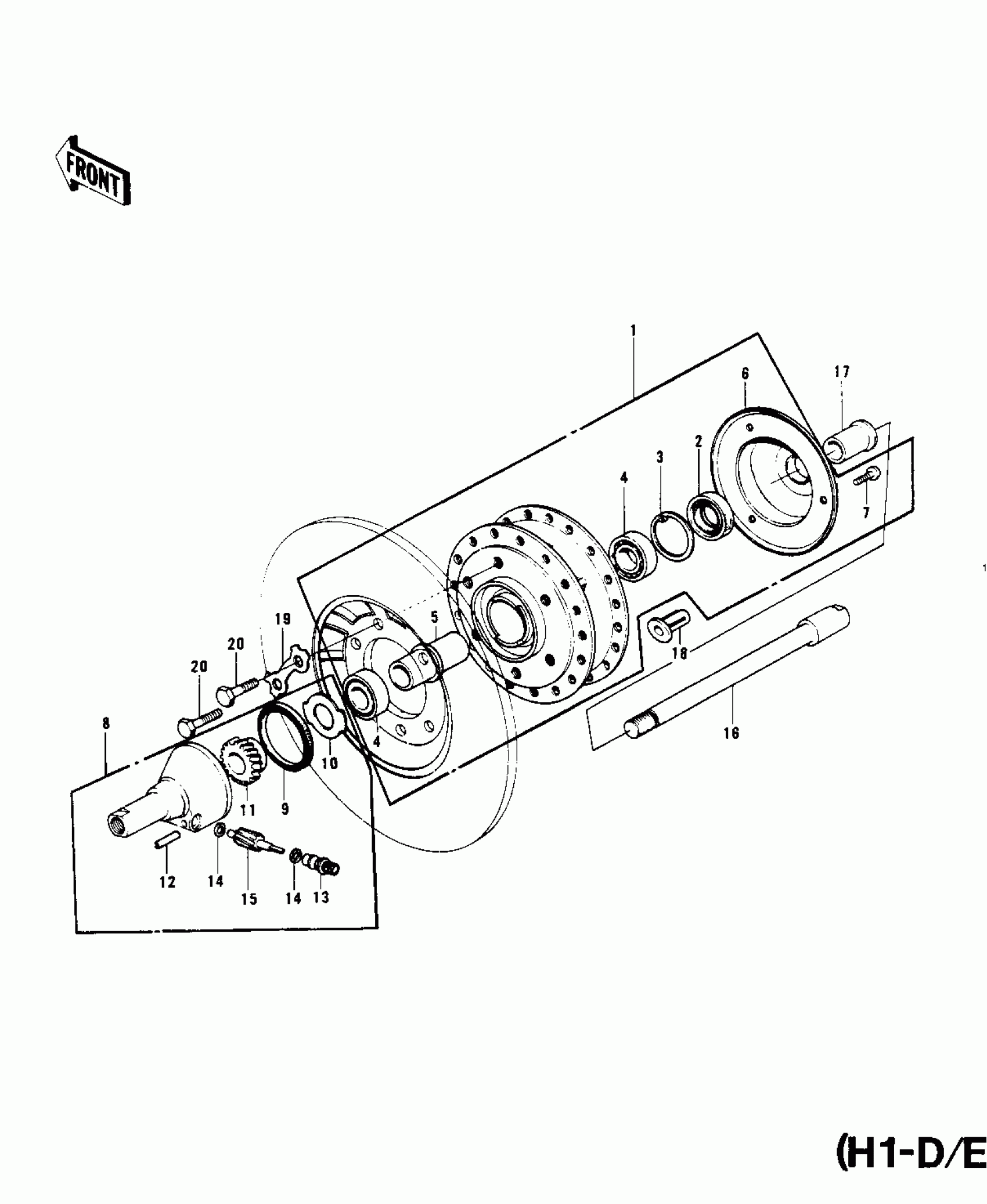

Kawasaki KH500-A8 FRONT HUB (H1-D/E/F) Diagram

#

Description
Price

1

DRUM-ASSY,FR BRK,BLK

41034-021-21

$189.90

2

SEAL-OIL,COUPLING

92052-003

$13.38

3

RING-SNAP,40MM

92033-1040

$5.90

4

BEARING-BALL,#6203C3

601B6203

$14.12

5

COLLAR-FRONT DRUM

41039-019

Unavailable

6

COVER-BRAKE DRUM DUST

41042-009

Unavailable

7

SCREW OVL CNTSNK 5X12

222E0512A

$0.88

8

CASE ASSY-SPEED GEAR

41078-001

Unavailable

9

OIL SEAL,VC54656

92050-046

Unavailable

10

RECEIVER-SPEEDO GEAR

41064-007

Unavailable

11

GEAR-SPEEDOMETER

41059-016

$34.39

12

PIN,SPRING

41082-001

$3.92

13

BUSH SPEEDMETER CABLE

41062-001

$9.61

14

WASHER,5.1X9X0.4

41063-001

$4.69

15

PINION-SPEEDOMETER

41060-012

$22.29

16

AXLE-FRONT HUB

41068-036

$32.90

17

COLLAR-FRONT AXLE

41069-018

Unavailable

18

CAP-FRONT DRUM HOLE

92102-006

Unavailable

19

WASHER-LOCK,8MM

92088-014

Unavailable

20

BOLT-HEX HEAD,8X28

92001-104

$13.57
