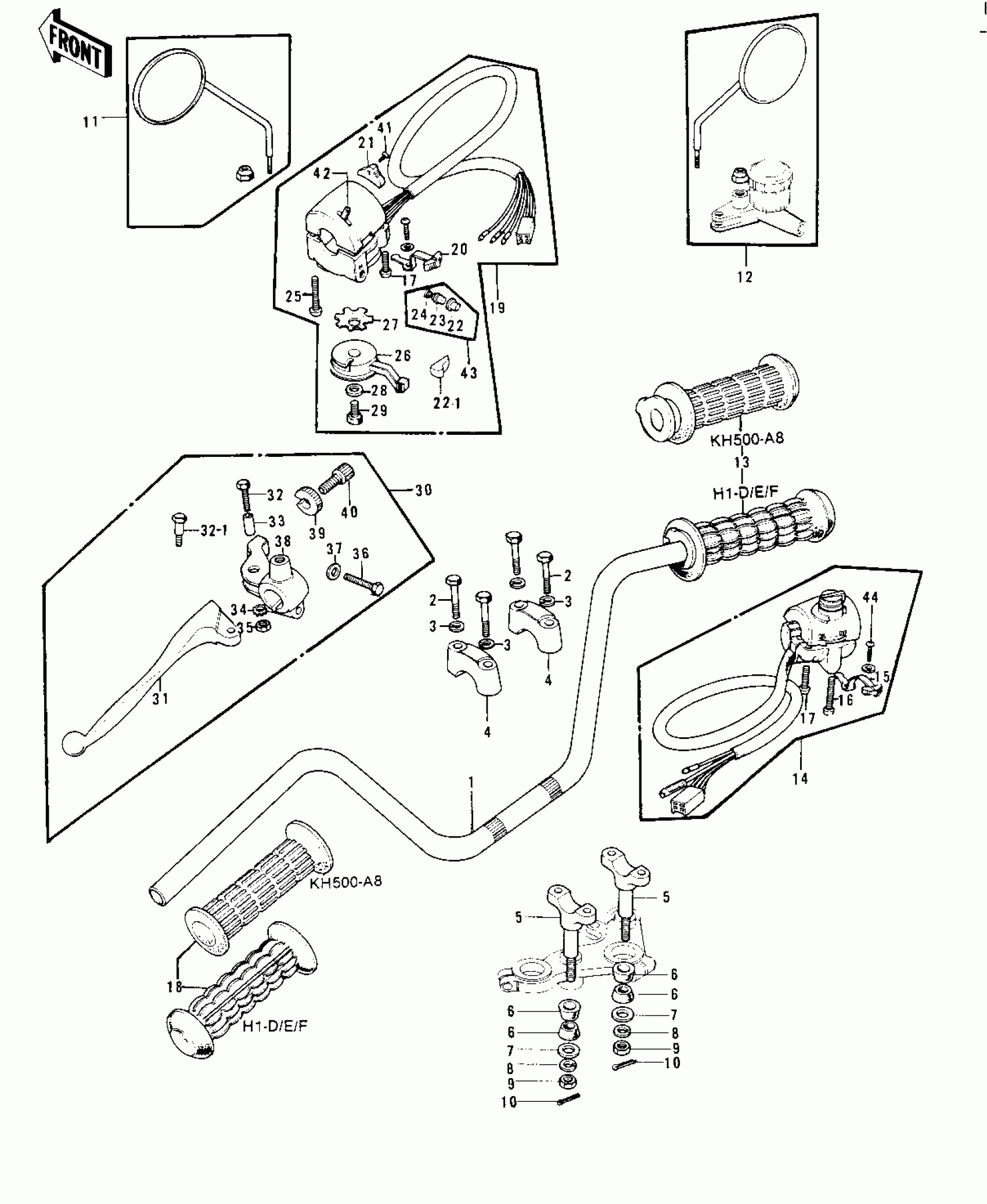

Kawasaki KH500-A8 HANDLEBAR ('73-'75 D/E/F & '76 A8) Diagram

#

Description
Price

1

HANDLEBAR

46003-017

Unavailable

2

BOLT 8X38

92001-1405

$16.50

3

WASHER SPRING 8MM

461F0800

Unavailable

4

HOLDER-HANDLE,UPP

46012-008

$37.74

5

HOLDER-HANDLE,LWR

46012-010

Unavailable

6

DAMPER RUBBER,HANDLE

92075-275

$11.03

7

WASHER-HANDLEBAR FIT

92022-196

Unavailable

8

WASHER SPRING 10MM

461F1000

Unavailable

9

NUT-HEX-FINE,10MM

314B1000

Unavailable

10

PIN-SNAP,8MM

554A0800

Unavailable

11

MIRROR-ASSY,LH

56003-009

$67.12

11

REAR VIEW MIRROR,L.H

56003-019

Unavailable

12

MIRROR-ASSY,RH

56002-020

$67.12

12

REAR VIEW MIRROR,R.H

56002-029

Unavailable

13

GRIP ASSY-THROTTLE

46019-023

Unavailable

13

GRIP ASSY,THROTTLE

46019-041

$60.05

14

CASE ASSY,R.H

46132-003

Unavailable

14

CASE ASSY,R.H

46132-019

$56.15

14

CASE ASSY,R.H

46132-027

Unavailable

14

CASE ASSY,R.H

46132-028

$75.64

15

KNOB,LIGHING SWITCH

46043-006

Unavailable

16

SCREW-PAN-CROS

220B0535

$2.76

17

SCREW PAN HEAD 5X22

220B0522

Unavailable

18

RUBBER-L.H GRIP

46075-017

Unavailable

18

RUBBER,L.H GRIP

46075-028

$39.98

19

CASE ASSY,L.H

46091-014

Unavailable

19

CASE ASSY,L.H

46091-047

Unavailable

20

KNOB,LIGHTING SW L.H

46043-005

Unavailable

21

KNOB,LIGHTING SW L.H

46044-013

$11.29

22

SWITCH,PUSH BUTTON

27010-1009

$9.20

22-1

BUTTON,HORN PUSH

27010-1001

$7.86

23

SWITCH,PUSH BUTTON

27010-1009

$9.20

24

SWITCH,PUSH BUTTON

27010-1009

$9.20

24-1

SWITCH,PUSH BUTTON

27010-1009

$9.20

25

SCREW PAN HEAD 5X30

220B0530

Unavailable

26

LEVER,STARTER

46096-009

$20.97

27

WASHER LOCK

92095-012

Unavailable

28

WASHER-PLAIN-SMALL,6MM

410B0600

$0.96

29

BOLT HEX HEAD 6X8

110B0608

Unavailable

30

LEVER ASSY-CLUTCH

46076-026

Unavailable

30

LEVER ASSY,CLUTCH

46076-036

Unavailable

30

LEVER ASSY,CLUTCH

46076-051

Unavailable

31

LEVER-GRIP,CLUTCH

46092-015

$20.99

31

LEVER-GRIP,CLUTCH

46092-015

$20.99

31

LEVER-GRIP,CLUTCH

46092-023

$35.96

32

BOLT HEX HEAD 5X20

92007-020

Unavailable

32-1

BOLT,5X22

92007-046

$7.62

32-1

BOLT,HEX HEAD

92007-047

Unavailable

33

COLLAR LEVER

46059-011

Unavailable

34

WASHER LOCK 5MM

464H0500

$1.42

35

NUT-HEX,5MM

312B0500

Unavailable

35

NUT,LOCK,5MM

92019-014

$4.50

36

BOLT HEX HEAD 6X25

110N0625

Unavailable

37

WASHER-PLAIN-SMALL,6MM

410B0600

$0.96

38

HOLDER,F.BLACK

46094-011-21

$35.82

38

HOLDER,CLUTCH LEVER

46094-017

Unavailable

39

NUT,CABLE ADJUST LOCK,8MM

46056-005

$8.86

40

SCREW ADJUST

46055-006

Unavailable

41

SCREW CNTSNK HD 3X8

221B0308A

Unavailable

42

SWITCH ASSY,L.H

46089-016

Unavailable

42

SWITCH,L.H

46089-014

Unavailable

43

L.H GRIP SWITCH KIT

99990-530

$2.22

44

SCREW PAN HEAD 3X5

220B0305A

$0.48
