1977 Kawasaki KH100-B8 Taillight/turn Signals Diagram

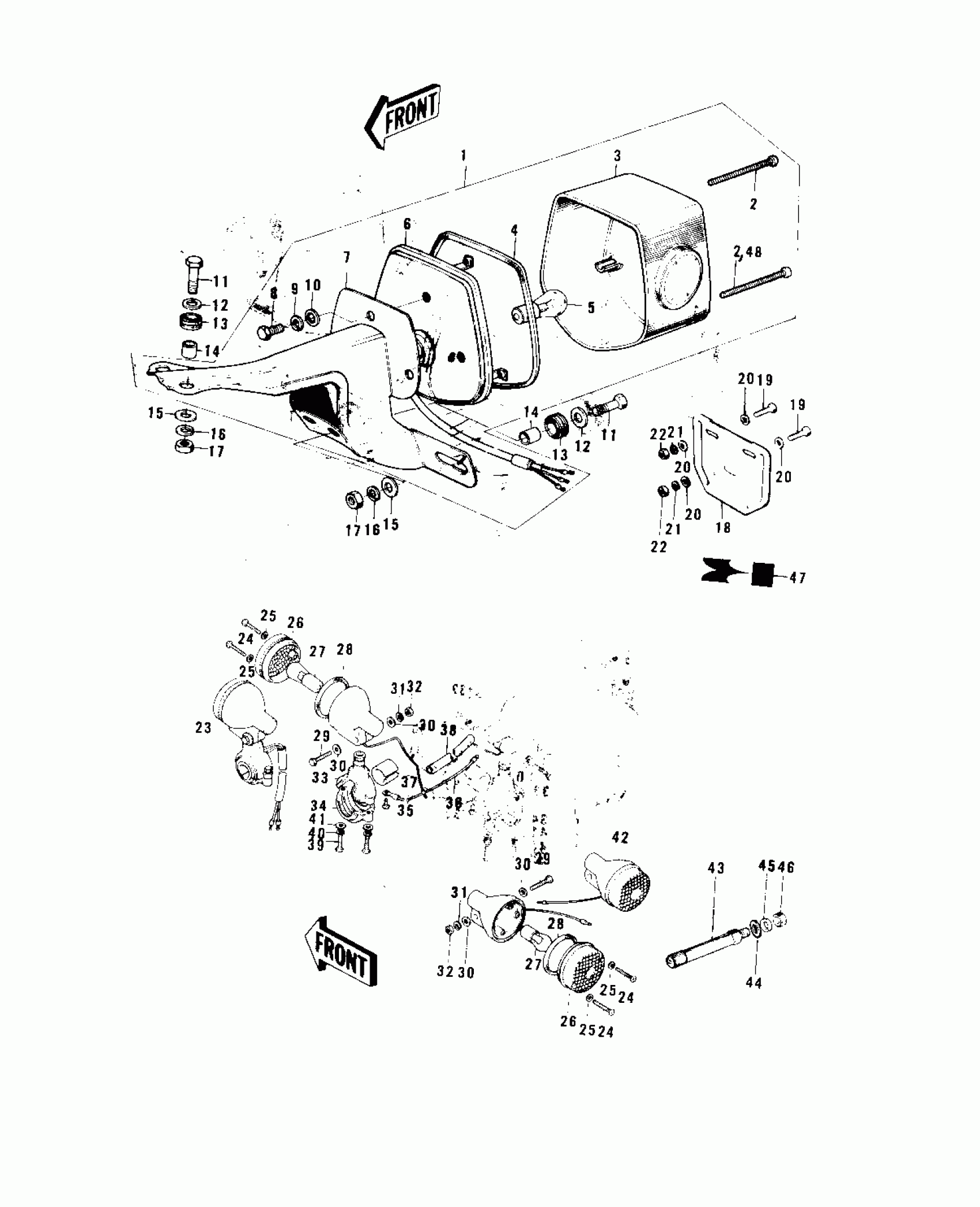

Find the part on the Taillight/turn Signals diagram for your 1977 Kawasaki KH100-B8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
LAMP ASSY,TAIL,BLACK
23024-049-10
3
LENS,TAIL LAMP
23026-028
4
GASKET,TAIL LAMP LENS
23028-019
5
BULB,6V 32/3CP
92069-074
6
BODY COMP TAIL LAMP
23027-1018
8
BOLT-UPSET 6X14
112B0614
8
BOLT-UPSET 6X14
112B0614
9
WASHER SPRING 6MM
461F0600
10
WASHER PLAIN 6MM
411B0600
11
BOLT 6X22
112B0622
11
BOLT 6X22
112B0622
15
WASHER PLAIN 6MM
411B0600
16
WASHER SPRING 6MM
461F0600
17
NUT 6MM
311B0600
18
BRACKET,LICENSE PLATE
11034-1117
19
BOLT-UPSET,6X20
112G0620
19
BOLT-UPSET,6X20
112G0620
20
WASHER PLAIN 6MM
411B0600
21
WASHER SPRING 6MM
461F0600
22
NUT 6MM
311B0600
23
LAMP ASY-FR TURN SIG
23037-005
24
SCREW-PAN HEAD,4X20
220E0420A
29
BOLT-UPSET
112G0630
31
WASHER SPRING 6MM
461F0600
32
NUT 6MM
311B0600
33
BRACKET-SIGNAL LAMP,FR
23051-1004
36
WIRE-LEAD,SIGNAL LAMP
26011-061
37
DAMPER
23066-003
38
COVER-WIRING HARNESS
26009-004
39
BOLT
110N0516
40
WASHER SPRING 5MM
461F0500
42
LAMP ASSY,TURN SIGNAL
23040-038
44
WASHER PLAIN 12MM
411B1200
45
WASHER-SPRING,12MM
461F1200
47
EMBLEM,LICNSE PLT BKT
56018-176
48
SCREW PAN HEAD 4X50
220E0450
