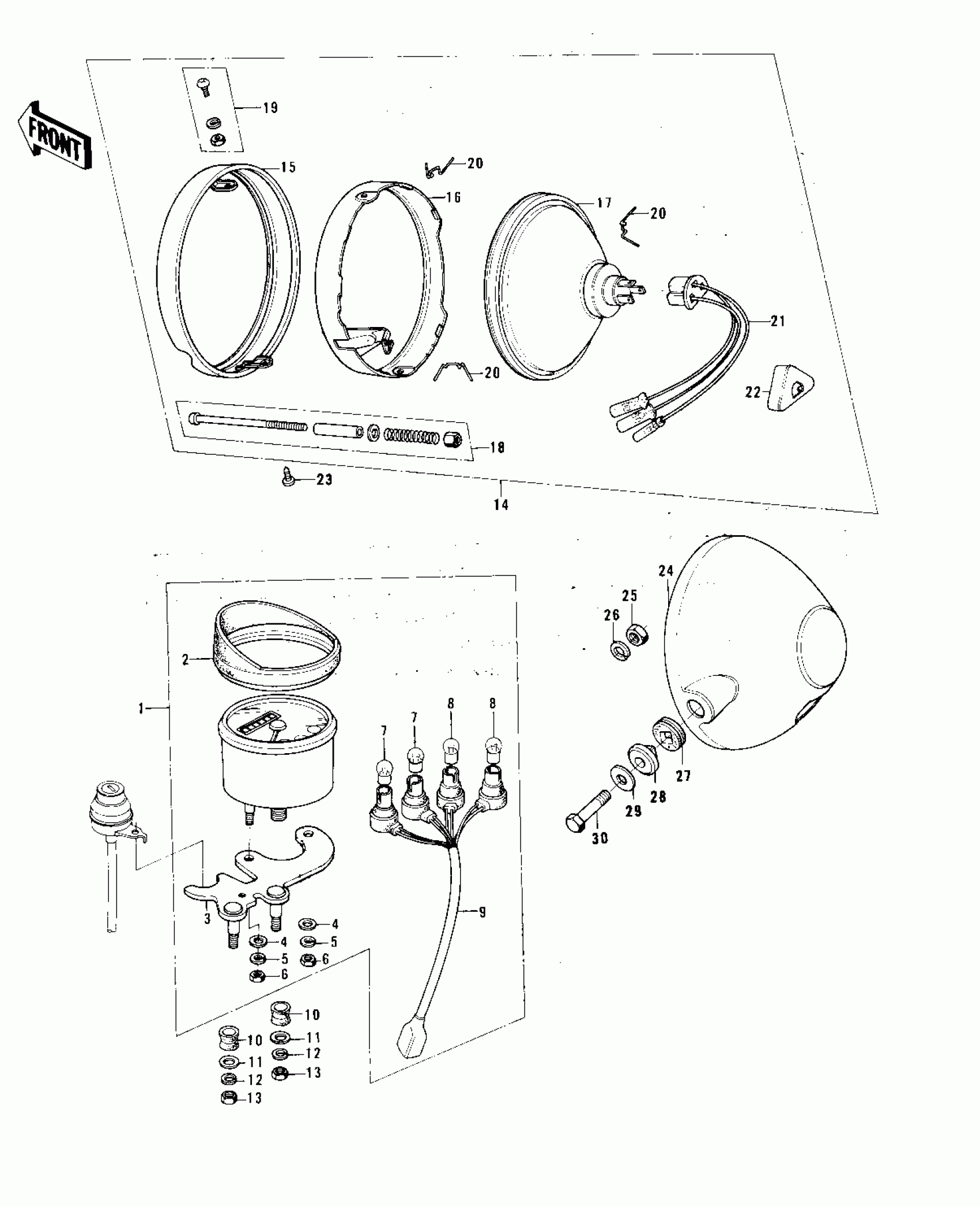

Find the part on the Meter/headlight diagram for your 1977 Kawasaki KH100-B8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Kawasaki KH100-B8 Meter/headlight Diagram

#

Description
Price
Status
Order Qty

1

SPEEDOMETER ASSY,MPH

25001-093

Out of stock

1

SPEEDOMETER ASSY,KPH (Canada)

25001-105

Out of stock

2

COVER-SPEEDOMETER

25012-003

Out of stock

3

BRACKET,SPEEDOMETER

25008-042

Out of stock

4

WASHER PLAIN 5MM

410B0500

Out of stock

5

WASHER SPRING 5MM

461F0500

Out of stock

6

NUT-HEX

311B0500

Out of stock

7

BULB,6V 1.7W

92069-024

Out of stock

8

BULB,6V 3W,CLEAR

92069-053

Out of stock

9

SOCKET,SPEEDOMETER

25011-050

Out of stock

10

DAMPER

92075-024

Out of stock

11

WASHER,6.5X20X1.6

92022-125

Out of stock

12

WASHER SPRING 6MM

461F0600

Out of stock

13

NUT 6MM

311B0600

Out of stock

14

LAMP UNIT,HEAD

23003-024

Out of stock

15

RIM,HEAD LAMP

23006-042

Out of stock

16

RETAINER,SEALED BEAM

23072-002

Out of stock

17

LENS-COMP,"4020" MARK

23007-055

Out of stock

18

LAMP ASSY-PILOT

23016-006

Out of stock

19

SCREW SET,LENS UNIT

23013-007

Out of stock

20

SPRING,HEAD LAMP LENS

23009-015

Out of stock

21

SOCKET-ASSY,HEAD LAMP

23008-044

Out of stock

22

COVER,HEAD LAMP SOCKET

23081-001

Out of stock

23

SCREW,PAN HEAD,5X14

23019-025

Out of stock

24

BODY,HEAD LAMP,BLACK

23005-049-21

Out of stock

25

NUT-HEX-FINE,10MM

314B1000

Out of stock

26

WASHER SPRING 10MM

461F1000

Out of stock

27

DAMPER RUBBER

23066-011

Out of stock

28

COLLAR

23052-005

Out of stock

29

WASHER-PLAIN,10MM

411D1000

Out of stock

30

BOLT,HEX HEAD,10X30

92007-041

Out of stock
