1977 Kawasaki KH100-B8 Ignition/generator Diagram

← All diagrams

Find the part on the Ignition/generator diagram for your 1977 Kawasaki KH100-B8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

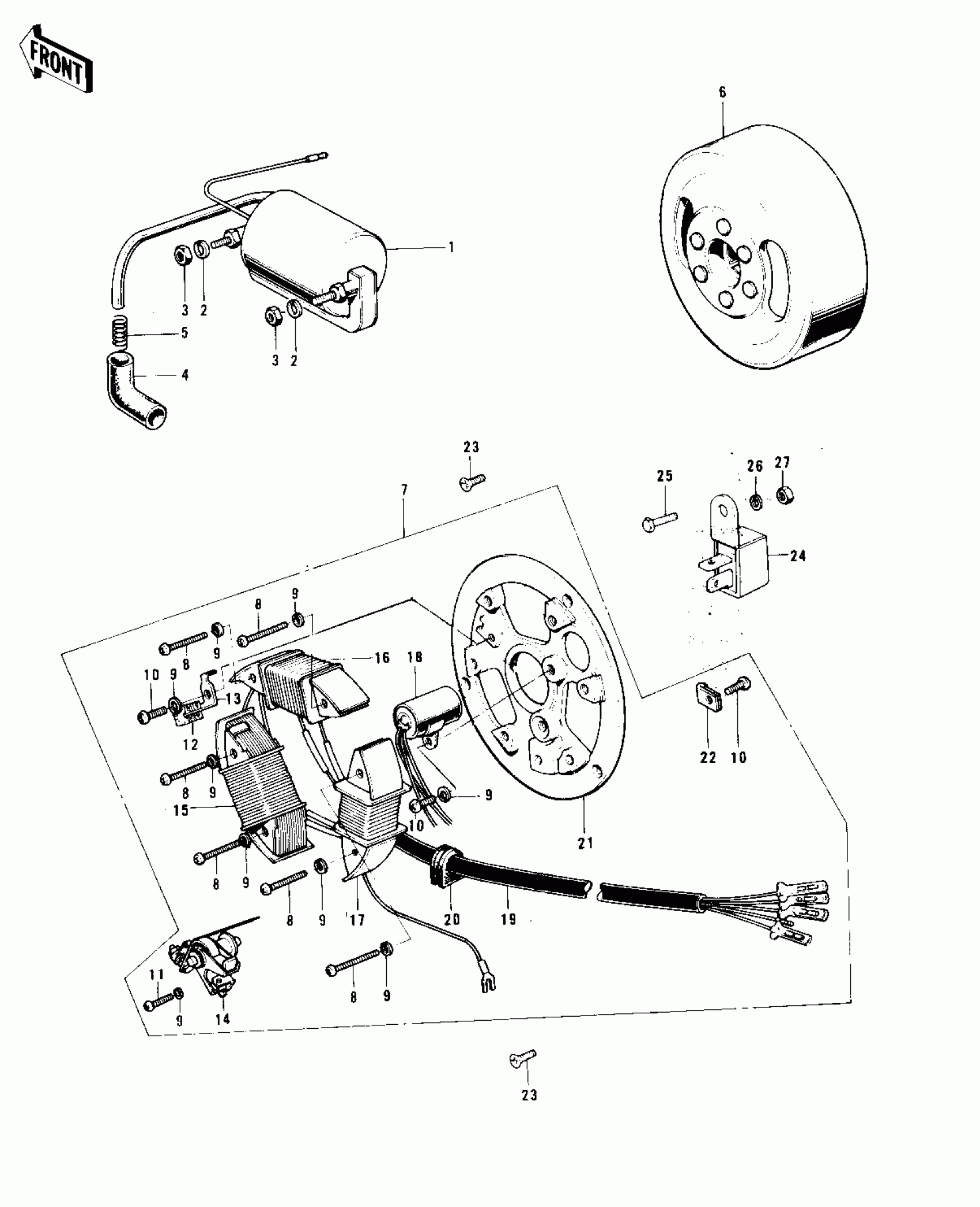

1977 Kawasaki KH100-B8 Ignition/generator Diagram

#

Description
Price
Status
Order Qty

1

COIL IGNITION

21121-1048

Out of stock

2

WASHER SPRING 6MM

461F0600

Out of stock

3

NUT 6MM

311B0600

Out of stock

4

CAP-SPARK PLUG

21130-009

Out of stock

5

TERMINAL,SPARK PLUG CAP

92101-001

Out of stock

6

FLYWHEEL

21050-016

Out of stock

7

STATOR ASSY

21003-025

Out of stock

8

SCREW-PAN-CROS

220E0430

Out of stock

9

WASHER SPRING 4MM

461F0400

Out of stock

10

SCREW PAN HEAD 4X6

220B0406

Out of stock

11

SCREW-PAN-CRSOSS,4X1

220B0412

Out of stock

12

BRUSH,OIL

21019-005

Out of stock

13

HOLDER,OIL FELT

21038-002

Out of stock

14

BREAKER,CONTACT

21008-006

Out of stock

15

COIL,LIGHTING

21047-1007

Out of stock

15

COIL,LIGHTING

21047-1007

Out of stock

16

COIL A LIGHTING

21047-019

Out of stock

17

COIL-EXCITING

21049-1004

Out of stock

17

COIL-EXCITING

21049-1004

Out of stock

18

CONDENSER

21013-006

Out of stock

19

WIRING HARNESS,MAGNT

21029-028

Out of stock

20

GROMMET

21017-002

Out of stock

21

PLATE-COIL,MAGNETO

21048-1002

Out of stock

22

CLAMP,WIRING HARNESS

21037-002

Out of stock

23

SCREW-CSK-CROS,6X14

221B0614

Out of stock

24

RECTIFIER

21061-015

Out of stock

25

BOLT HEX HEAD 5X10

110B0510

Out of stock

26

WASHER SPRING 5MM

461F0500

Out of stock

27

NUT-HEX

311B0500

Out of stock
