1977 Kawasaki KH100-B8 Fenders Diagram

← All diagrams

Find the part on the Fenders diagram for your 1977 Kawasaki KH100-B8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

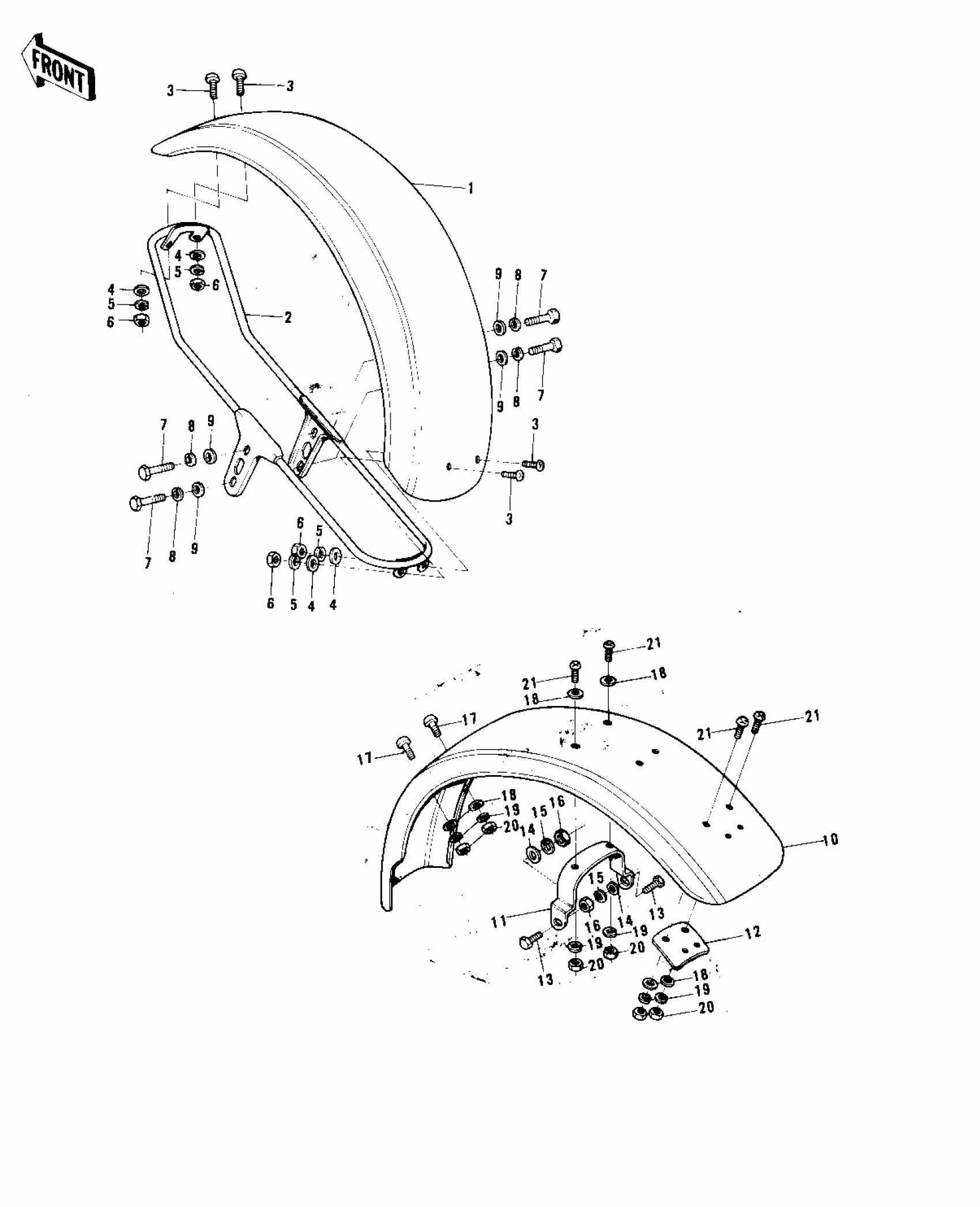

1977 Kawasaki KH100-B8 Fenders Diagram

#

Description
Price
Status
Order Qty

1

FENDER-FR

35004-1010

Out of stock

2

STAY FRONT FENDER

35011-005

Out of stock

3

SCREW PAN HEAD 6X10

220E0610

Out of stock

4

WASHER PLAIN 6MM

411B0600

Out of stock

5

WASHER SPRING 6MM

461F0600

Out of stock

6

NUT 6MM

312B0600

Out of stock

7

BOLT SMALL

114G0812

Out of stock

8

WASHER SPRING 8MM

461F0800

Out of stock

9

WASHER PLAIN 8MM

410B0800

Out of stock

10

FENDER-RR

35023-1004

Out of stock

11

BRACKET REAR FENDER

35025-002

Out of stock

12

PLATE,REAR FENDER

35013-012

Out of stock

13

BOLT,HEX HEAD,8X42

110N0842

Out of stock

14

WASHER PLAIN 8MM

411B0800

Out of stock

15

WASHER SPRING 8MM

461F0800

Out of stock

16

NUT,8MM

311B0800

Out of stock

17

SCREW PAN HEAD 6X12

220B0612

Out of stock

18

WASHER PLAIN 6MM

411B0600

Out of stock

19

WASHER SPRING 6MM

461F0600

Out of stock

20

NUT 6MM

311B0600

Out of stock

21

SCREW-PAN-CROS,6X14

220B0614

Out of stock
