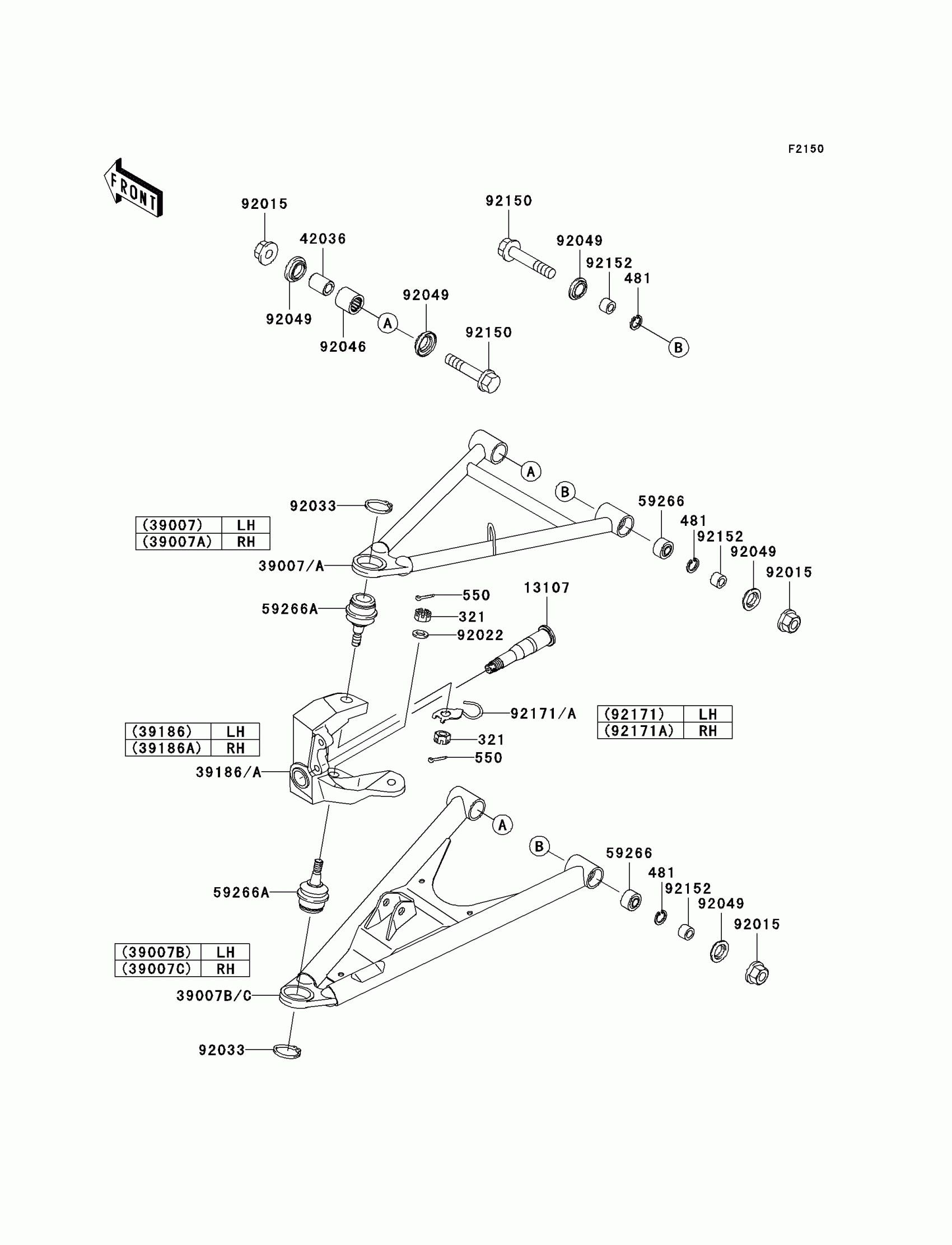

Kawasaki KFX700 Suspension Diagram

#

Description
Price

321

NUT-CASTLE,12MM

321H1200

Unavailable

481

CIRCLIP-TYPE-C,24MM

481J2400

$2.22

550

PIN-COTTER,3.0X25

550D3025

Unavailable

13107

SHAFT,KNUCKLE

13107-1507

$70.76

39007

ARM-SUSP,LH,UPP,G.GRAY

39007-1307-HN

Unavailable

39007A

ARM-SUSP,RH,UPP,G.GRAY

39007-1309-HN

$90.74

39007B

ARM-SUSP,LH,LWR,G.GRAY

39007-1311-HN

$104.31

39007C

ARM-SUSP,RH,LWR,G.GRAY

39007-1312-HN

$104.31

39186

KNUCKLE,LH

39186-0003

$219.57

39186A

KNUCKLE,RH

39186-0004

$219.57

42036

SLEEVE

42036-1376

$11.17

59266

JOINT-BALL

59266-1011

$58.78

59266A

JOINT-BALL

59266-1139

$64.69

92015

NUT,FLANGED,10MM

92015-1428

$3.81

92022

WASHER,12.3X22X1.6

92022-1065

$3.58

92033

RING-SNAP,C-TYPE,32MM

92033-1262

$4.81

92046

BEARING-NEEDLE

92046-1046

$22.57

92049

SEAL-OIL,MHA17245.7F

92049-1223

$6.75

92150

BOLT,FLANGED,10X63

92150-1384

$10.44

92152

COLLAR,10X17X14.5

92152-1455

$6.91

92171

CLAMP,BRAKE HOSE,LH

92171-0094

$9.05

92171A

CLAMP,BRAKE HOSE,RH

92171-0095

$9.05
