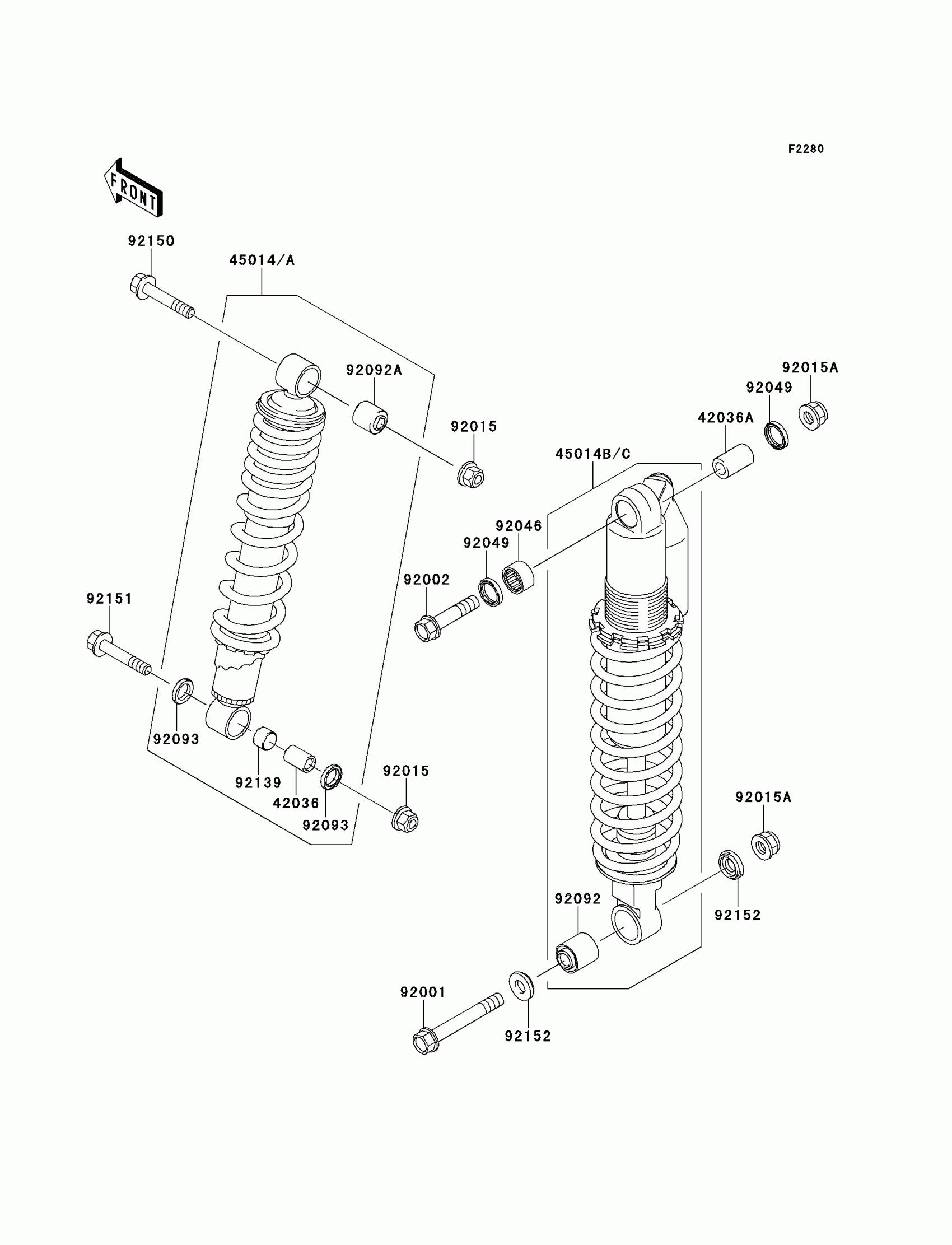

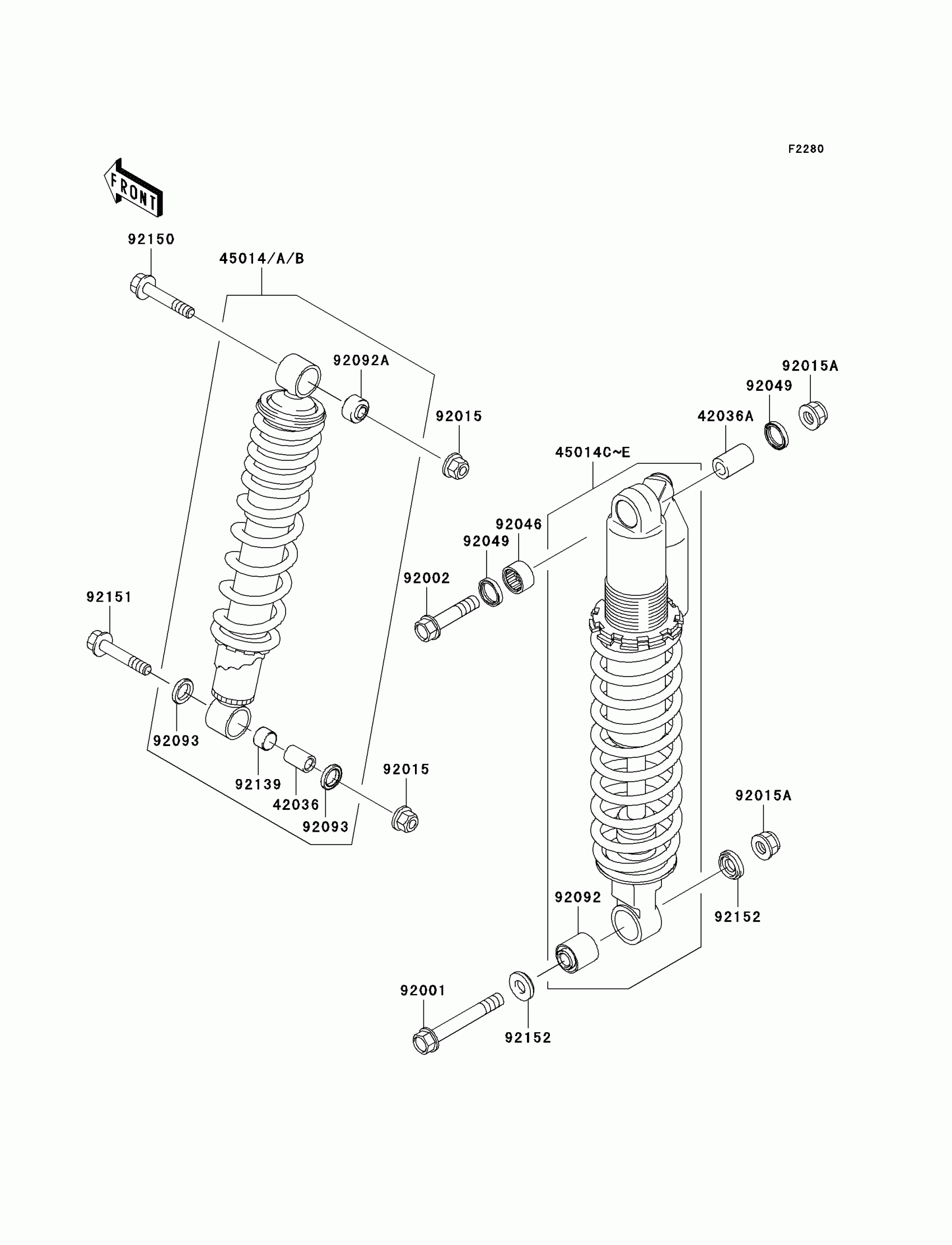

Kawasaki KFX700 Shock Absorber(s) Diagram

Description

Price

42036

SLEEVE

42036-0012

$8.25

42036A

SLEEVE,12X20X32

42036-1378

$14.86

45014A

SHOCKABSORBER,FR,P.WHITE

45014-0004-EH

$252.42

45014B

SHOCKABSORBER,FR,L.GREEN

45014-0004-710

$233.48

45014D

SHOCKABSORBER,RR,P.WHITE

45014-0005-EH

Unavailable

45014E

SHOCKABSORBER,RR,L.GREEN

45014-0005-710

$1,397.56

92001

BOLT,FLANGED,12X88

92001-1693

$14.76

92002

BOLT,FLANGED,12X55

92002-1840

$9.02

92015

NUT,LOCK,10MM

92015-1597

$4.18

92015A

NUT,LOCK,12MM

92015-1617

$6.85

92046

BEARING-NEEDLE

92046-1239

$19.34

92049

SEAL-OIL,GD20X26X4

92049-1108

$7.71

92092

BUSHING-RUBBER,SHOCKABSORBER

92092-1054

$35.15

92092A

BUSHING-RUBBER

92092-1079

$30.07

92093

SEAL

92093-0010

$5.03

92139

BUSHING

92139-0042

$4.85

92150

BOLT,FLANGED,10X51

92150-1719

$9.63

92151

BOLT,FLANGED,10X45

92151-1413

$3.56

92152

COLLAR

92152-1293

$6.95
