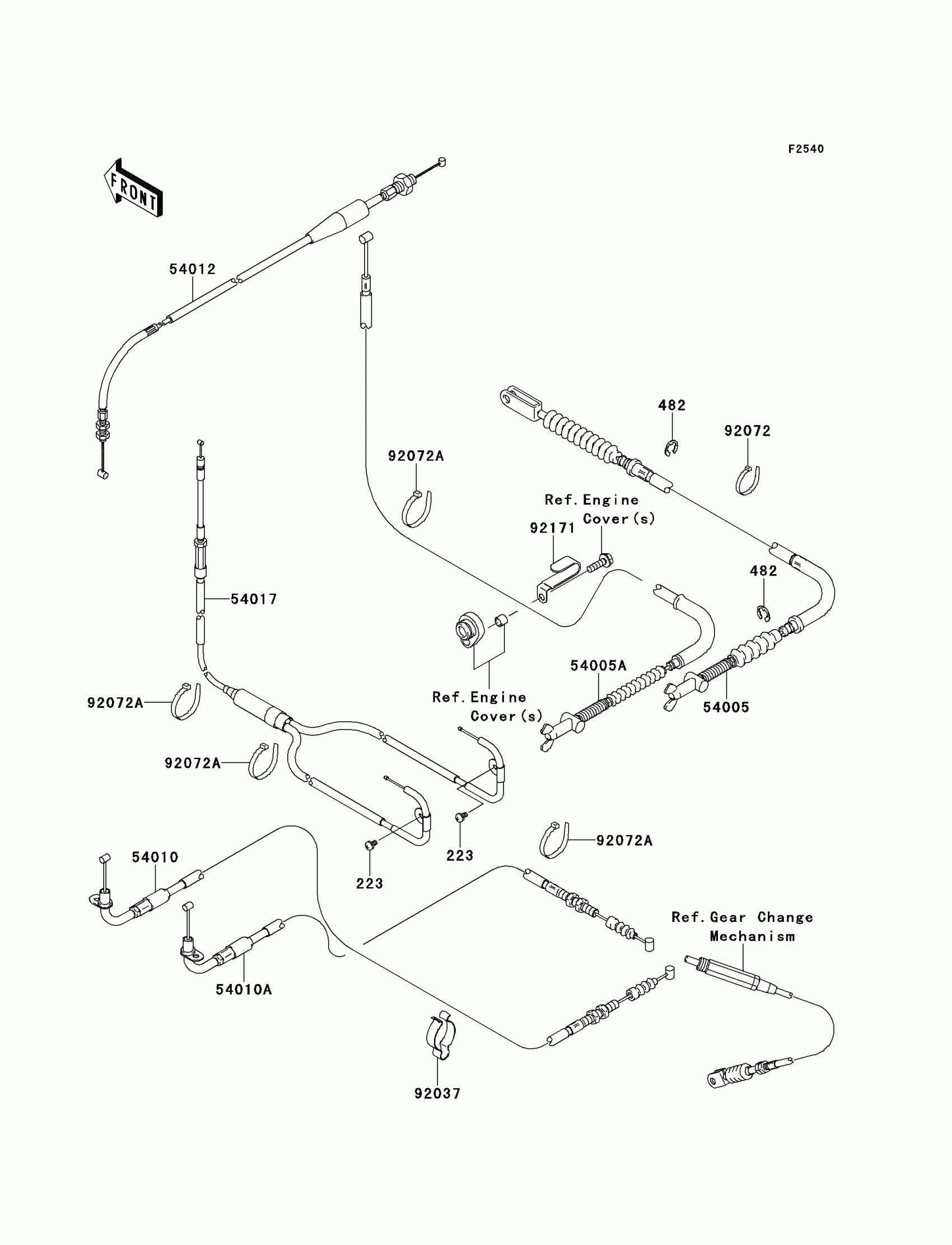

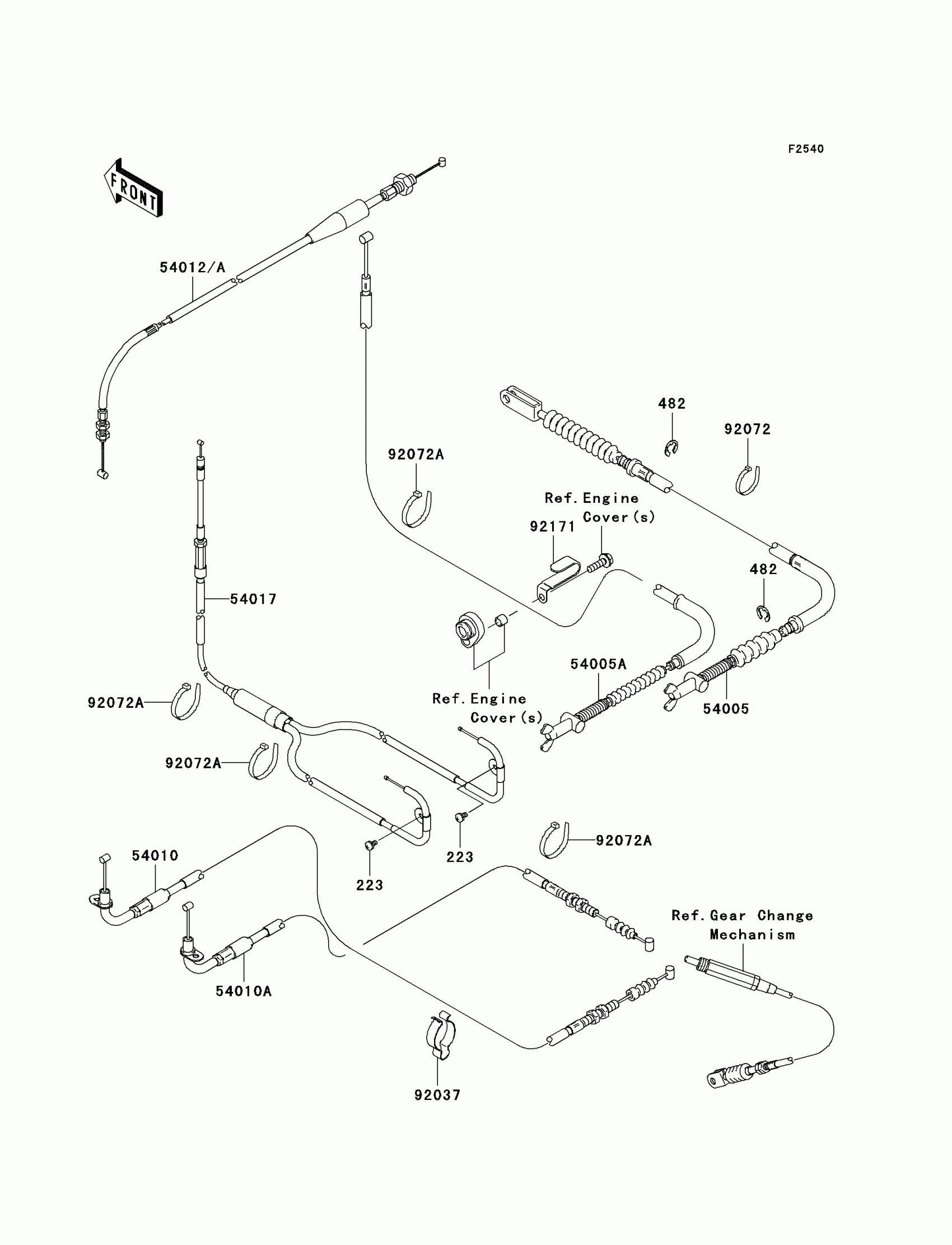

Kawasaki KFX700 Cables Diagram

Description

Price

223

SCREW-PAN-WS-CROS,4X8

223D0408

$1.00

482

CIRCLIP-TYPE-E,8MM

482L8000

Unavailable

54005

CABLE-BRAKE,REAR

54005-1217

$62.49

54005A

CABLE-BRAKE,PARKING

54005-1218

$62.49

54010

CABLE,SHIFT,PULL

54010-1130

$49.94

54010A

CABLE,SHIFT,PUSH

54010-1131

$49.94

54012A

CABLE-THROTTLE

54012-0124

$32.14

54017

CABLE-STARTER

54017-1226

$93.60

92037

CLAMP

92037-093

$8.65

92072

BAND,L=123

92072-030

$3.81

92072A

BAND,L=188

92072-1239

$1.30

92171

CLAMP

92171-1230

$3.93
