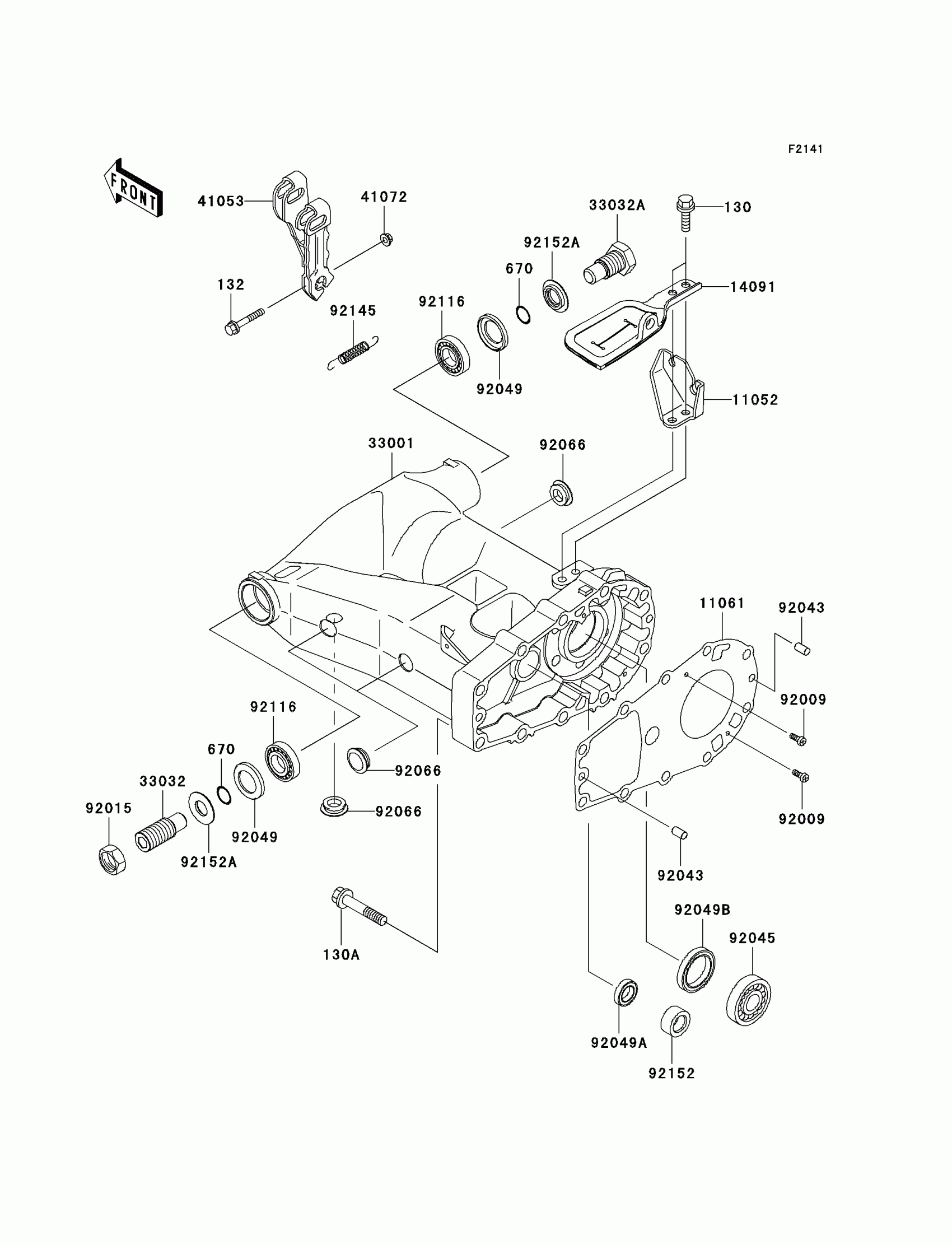

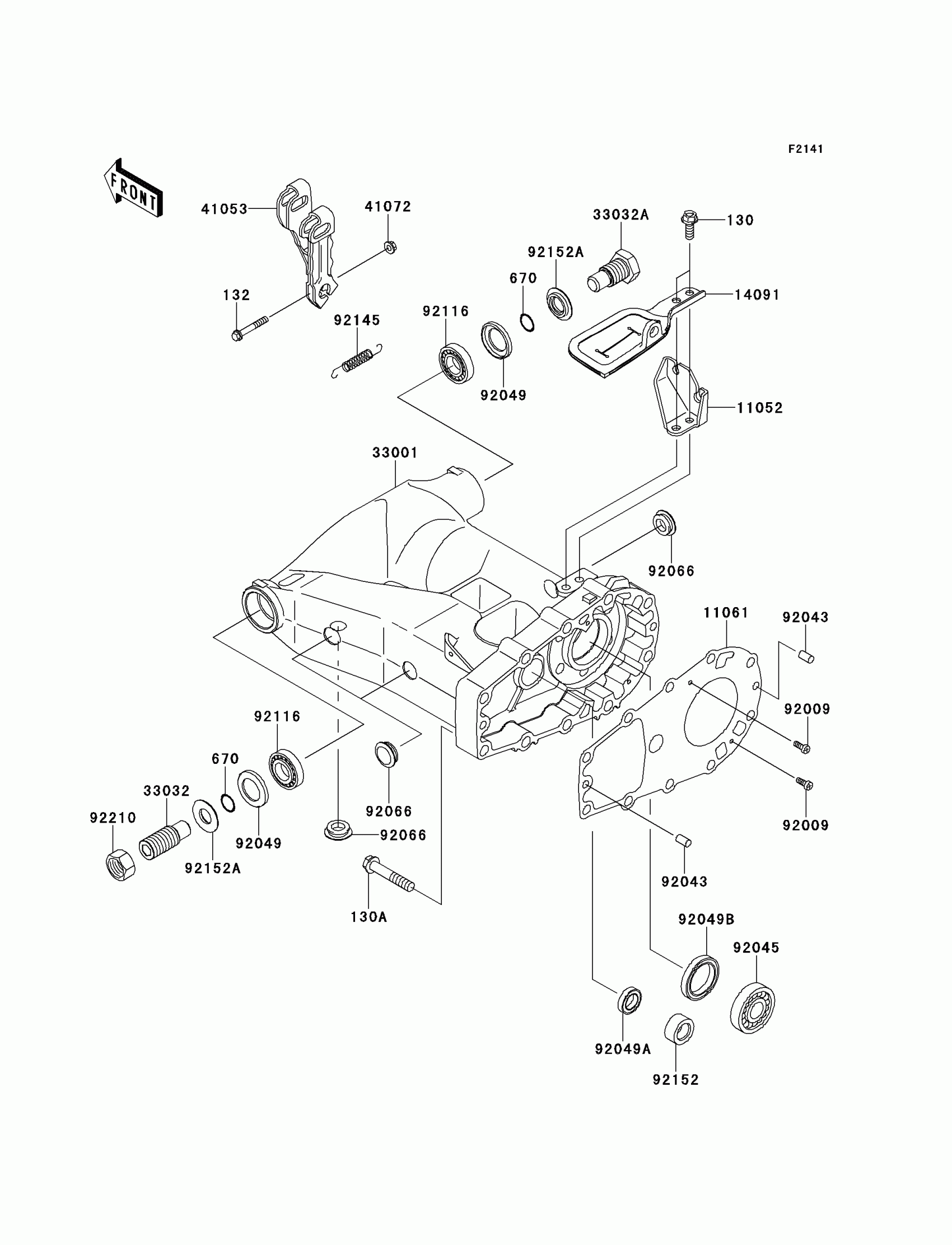

Kawasaki KFX700 Swingarm Diagram

#

Description
Price

130

BOLT-FLANGED,8X22

130J0822

Unavailable

130A

BOLT-FLANGED,10X55

130P1055

Unavailable

132

BOLT-FLANGED-SMALL,6X40

132G0640

Unavailable

670

O RING,16MM

670B2016

$1.04

11052

BRACKET,CABLE STOPPER

11052-1888

Unavailable

11061

GASKET,SWING ARM

11061-1065

$43.40

14091

COVER,BRAKE

14091-1425

$43.76

33001

ARM-COMP-SWING

33001-1585

$714.10

33032

SHAFT-SWING ARM,LEFT SIDE

33032-1197

$35.86

33032A

SHAFT-SWING ARM,RIGHT SIDE

33032-1200

$35.86

41053

LEVER-BRAKE CAM

41053-1099

$56.05

41072

NUT,6MM

41072-007

$2.99

92009

SCREW,4X10

92009-1936

$1.43

92015

NUT,22MM

92015-1229

$7.83

92043

PIN,8X14

92043-1567

$1.62

92045

BEARING-BALL,TMBO/28C3

92045-1427

$32.89

92049

SEAL-OIL,26406

92049-1030

$7.41

92049A

SEAL-OIL,TC17X28X6

92049-1537

$8.98

92049B

SEAL-OIL,HTC35X48X7

92049-1538

$11.71

92066

PLUG

92066-1534

$1.52

92116

BEARING-ROLLER,4T30203E1

92116-1001

$33.92

92145

SPRING,BRAKE LEVER RETURN

92145-1313

$3.78

92152

COLLAR

92152-1240

$14.61

92152A

COLLAR

92152-1356

$7.76
