2011 Kawasaki KFX®90 Cylinder Head Diagram

← All diagrams

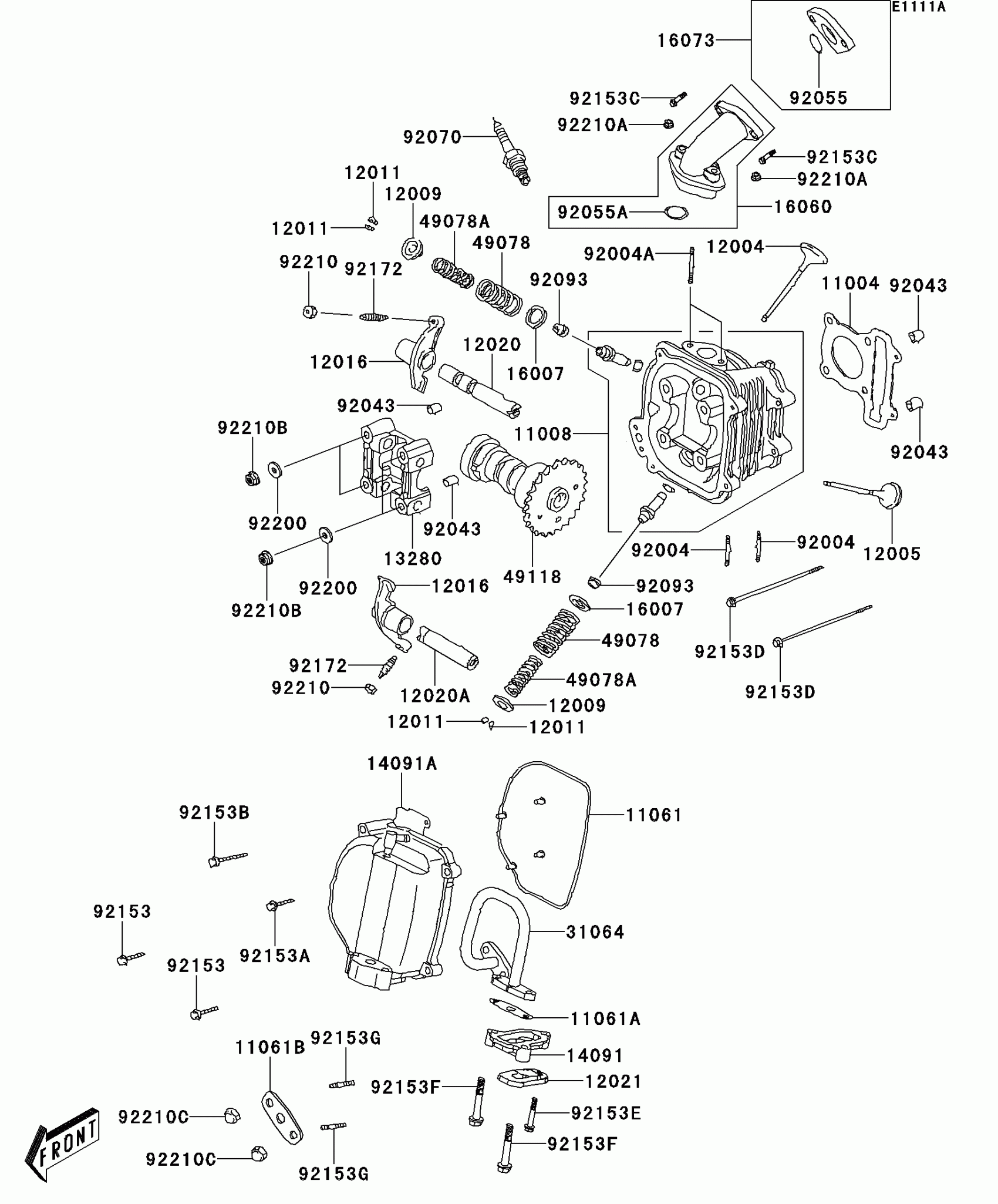

Find the part on the Cylinder Head diagram for your 2011 Kawasaki KFX®90, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Kawasaki KFX®90 Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11004

GASKET-HEAD

11004-Y002

1
Out of stock

11008

HEAD-COMP-CYLINDER

11008-Y004

1
Out of stock

11061

GASKET,CYLINDER HEAD COVER

11061-Y010

1
Out of stock

11061A

GASKET

11061-Y018

1
Out of stock

11061B

GASKET

11061-Y020

1
Out of stock

12004

VALVE-INTAKE

12004-Y002

1
Out of stock

12005

VALVE-EXHAUST

12005-Y002

1
Out of stock

12009

RETAINER-VALVE SPRING

12009-Y001

1
Out of stock

12011

COLLET

12011-Y001

1
Out of stock

12016

ARM-ROCKER

12016-Y001

1
Out of stock

12020

SHAFT-ROCKER,IN

12020-Y001

1
Out of stock

12020A

SHAFT-ROCKER,EX

12020-Y003

1
Out of stock

12021

VALVE-ASSY-REED

12021-Y002

1
Out of stock

13280

HOLDER,CAMSHAFT

13280-Y002

1
Out of stock

14091

COVER,REED VALVE

14091-Y015

1
Out of stock

14091A

COVER,CYLINDER HEAD

14091-Y016

1
Out of stock

16007

SEAT-SPRING

16007-Y001

1
Out of stock

16060

PIPE-INTAKE

16060-Y004

1
Out of stock

16073

INSULATOR

16073-Y002

1
Out of stock

31064

PIPE-COMP

31064-Y003

1
Out of stock

49078

SPRING-ENGINE VALVE,OUTER

49078-Y002

1
Out of stock

49078A

SPRING-ENGINE VALVE,INNER

49078-Y003

1
Out of stock

49118

CAMSHAFT-COMP

49118-Y002

1
Out of stock

92004

STUD,8X32

92004-Y006

1
Out of stock

92004A

STUD,6X50

92004-Y007

1
Out of stock

92043

PIN,10X16

92043-Y013

1
Out of stock

92055

RING-O,23X2.4

92055-Y007

1
Out of stock

92055A

RING-O,22X2.0

92055-Y008

1
Out of stock

92070

PLUG-SPARK,CR7HSA

92070-Y002

1
Out of stock

92093

SEAL

92093-Y001

1
Out of stock

92153

BOLT,FLANGE,6X25

92153-Y027

1
Out of stock

92153A

BOLT,FLANGE,6X35

92153-Y029

1
Out of stock

92153B

BOLT,FLANGE,6X50

92153-Y030

1
Out of stock

92153C

BOLT,FLANGE,6X25

92153-Y051

1
Out of stock

92153D

BOLT,FLANGE,6X95

92153-Y056

1
Out of stock

92153E

BOLT,FLANGE,6X25

92153-Y065

1
Out of stock

92153F

BOLT,FLANGE,6X40

92153-Y066

1
Out of stock

92153G

BOLT,STUD,6X16

92153-Y068

1
Out of stock

92172

SCREW

92172-Y003

1
Out of stock

92200

WASHER,8MM

92200-Y009

1
Out of stock

92210

NUT

92210-Y004

1
Out of stock

92210A

NUT,6MM

92210-Y027

1
Out of stock

92210B

NUT,8MM

92210-Y028

1
Out of stock

92210C

NUT,6MM

92210-Y035

1
Out of stock
