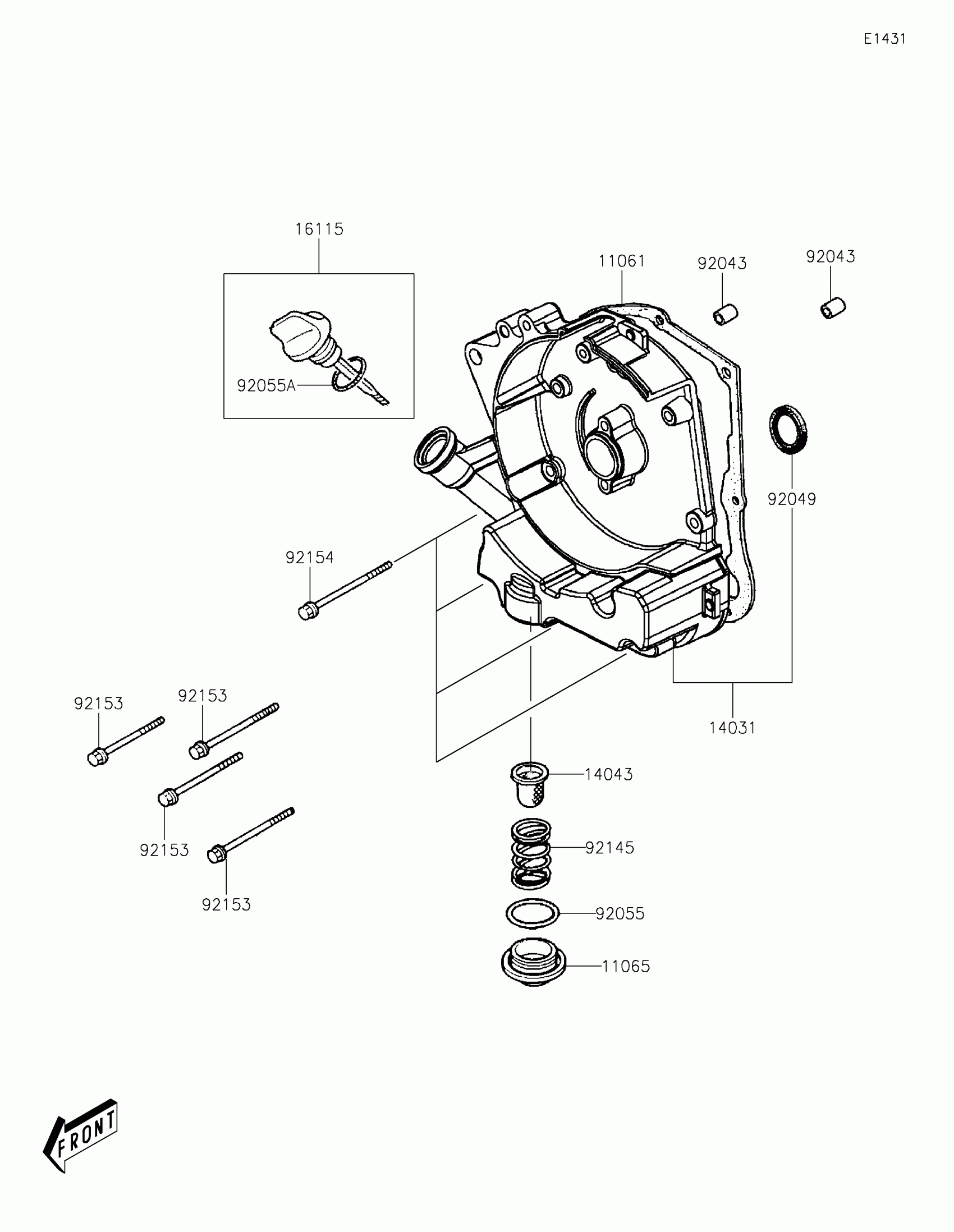

Kawasaki KFX®90 Engine Cover(s) Diagram

Description

Price

11061

GASKET,GENERATOR

11061-Y005

$9.73

11065

CAP

11065-Y006

$6.85

14031

COVER-GENERATOR

14031-Y001

$92.88

14043

FILTER,OIL

14043-Y001

$3.48

16115

CAP-OIL FILLER

16115-Y001

$4.34

92043

PIN,8X14

92043-Y012

$1.36

92049

SEAL-OIL,19.8X30X5

92049-Y001

$13.75

92055

RING-O,30.8MM

92055-Y005

$1.00

92055A

RING-O,18X3

92055-Y011

$0.97

92145

SPRING

92145-Y005

$1.41

92153

BOLT,FLANGE,6X85

92153-Y055

$2.12

92153A

BOLT,FLANGE,6X100

92153-Y057

Unavailable
