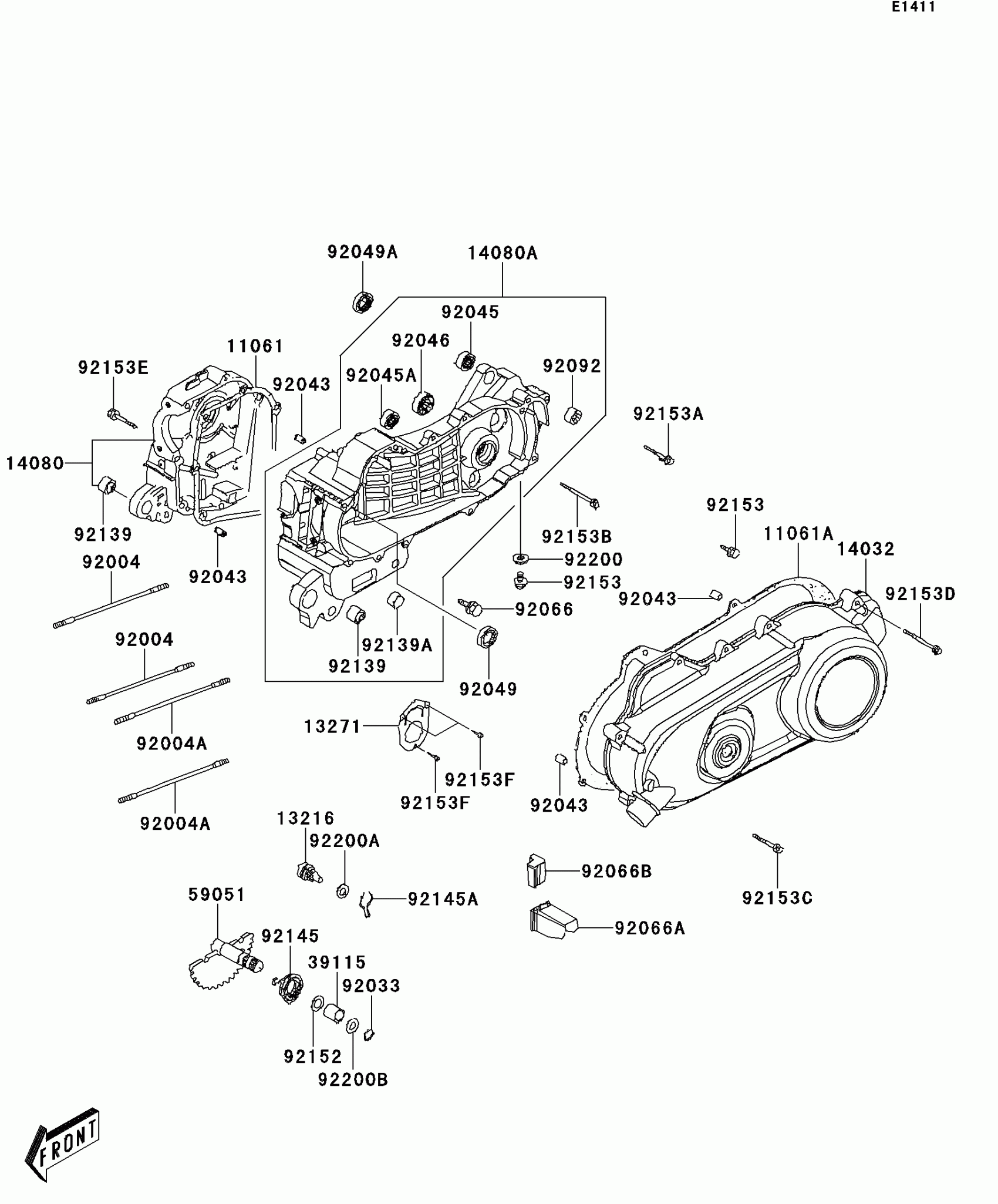

Kawasaki KFX®90 Crankcase Diagram

#

Description
Price

11061

GASKET,CRANK CASE

11061-Y003

$7.27

11061A

GASKET,CLUTCH COVER

11061-Y007

$14.35

13216

GEAR-COMP,KICK DRIVEN

13216-Y002

$36.71

13271

PLATE

13271-Y002

$3.88

14032

COVER-CLUTCH,BLACK

14032-Y002-931

$104.65

14080

CRANKCASE,RH

14080-Y001

Unavailable

14080A

CRANKCASE,LH

14080-Y003

$319.21

39115

SHAFT-IDLER,KICK

39115-Y001

$2.42

59051

GEAR-SPUR,KICK STARTER

59051-Y001

$36.71

92004

STUD,8X182.5

92004-Y002

$5.12

92004A

STUD,8X190.5

92004-Y004

$5.12

92033

RING-SNAP

92033-Y012

$0.80

92043

PIN,8X14

92043-Y012

$1.36

92045

BEARING-BALL,6203

92045-Y006

$10.73

92045A

BEARING-BALL,6204

92045-Y007

$13.98

92046

BEARING-NEEDLE

92046-Y003

$11.36

92049

SEAL-OIL,19.8X30X5

92049-Y001

$13.75

92049A

SEAL-OIL,20X32X6

92049-Y004

$1.61

92066

PLUG,DRAIN

92066-Y003

$2.71

92066A

PLUG

92066-Y005

$16.58

92066B

PLUG

92066-Y007

$2.51

92092

BUSHING-RUBBER

92092-Y002

$4.88

92139

BUSHING

92139-Y001

$5.12

92139A

BUSHING

92139-Y002

$1.42

92145

SPRING

92145-Y001

$10.59

92145A

SPRING,KICK DRIVEN GEAR

92145-Y011

$1.61

92152

COLLAR

92152-Y006

$1.46

92153

BOLT,FLANGE,8X12

92153-Y001

$1.22

92153A

BOLT,FLANGE,8X45

92153-Y036

$2.14

92153B

BOLT,FLANGE,8X60

92153-Y038

$2.51

92153C

BOLT,FLANGE,6X28

92153-Y052

$1.98

92153D

BOLT,FLANGE,6X35

92153-Y053

$1.71

92153E

BOLT,FLANGE,6X45

92153-Y054

$4.44

92153F

BOLT,5X10

92153-Y058

$0.80

92200

WASHER,8MM

92200-Y001

$0.80

92200A

WASHER,10MM

92200-Y002

$1.53

92200B

WASHER

92200-Y008

$1.17
