2011 Kawasaki KFX®90 Crankshaft/piston Diagram

← All diagrams

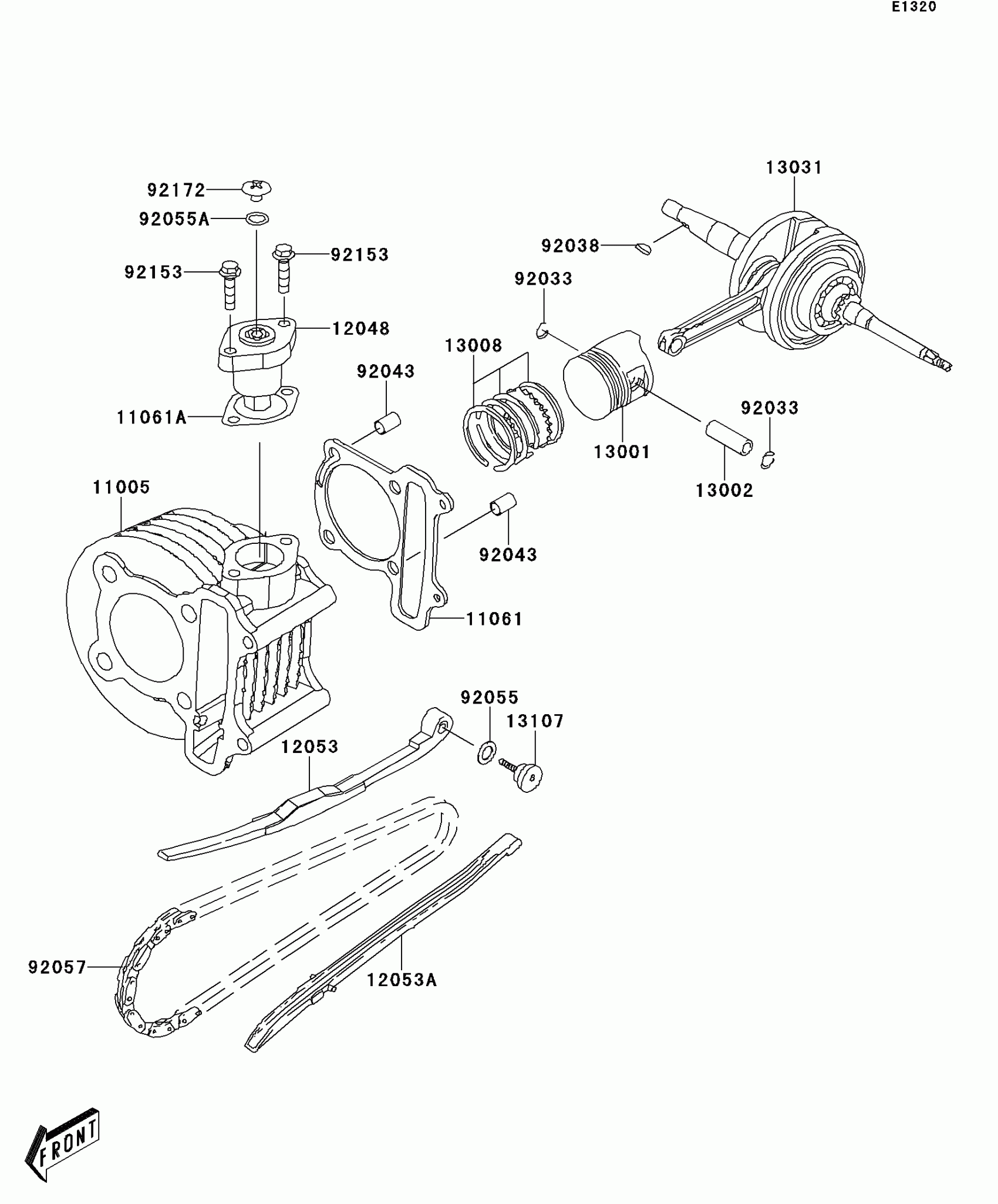

Find the part on the Crankshaft/piston diagram for your 2011 Kawasaki KFX®90, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Kawasaki KFX®90 Crankshaft/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11005

CYLINDER-ENGINE

11005-Y002

1
Out of stock

11061

GASKET,CYLINDER BASE

11061-Y009

1
Out of stock

11061A

GASKET

11061-Y012

1
Out of stock

12048

TENSIONER-ASSY

12048-Y001

1
Out of stock

12053

GUIDE-CHAIN,TENSIONER

12053-Y002

1
Out of stock

12053A

GUIDE-CHAIN

12053-Y004

1
Out of stock

13001

PISTON-ENGINE

13001-Y001

1
Out of stock

13002

PIN-PISTON

13002-Y001

1
Out of stock

13008

RING-SET-PISTON

13008-Y001

1
Out of stock

13031

CRANKSHAFT-COMP

13031-Y001

1
Out of stock

13107

SHAFT,CHAIN GUIDE

13107-Y001

1
Out of stock

92033

RING-SNAP

92033-Y001

1
Out of stock

92038

KEY,WOODRUFF

92038-Y001

1
Out of stock

92043

PIN,10X16

92043-Y013

1
Out of stock

92055

RING-O,15.2X1.5

92055-Y003

1
Out of stock

92055A

RING-O,1.5X9.5

92055-Y010

1
Out of stock

92057

CHAIN,CAMSHAFT

92057-Y002

1
Out of stock

92153

BOLT,FLANGE,6X22

92153-Y003

1
Out of stock

92172

SCREW,6X6

92172-Y002

1
Out of stock
