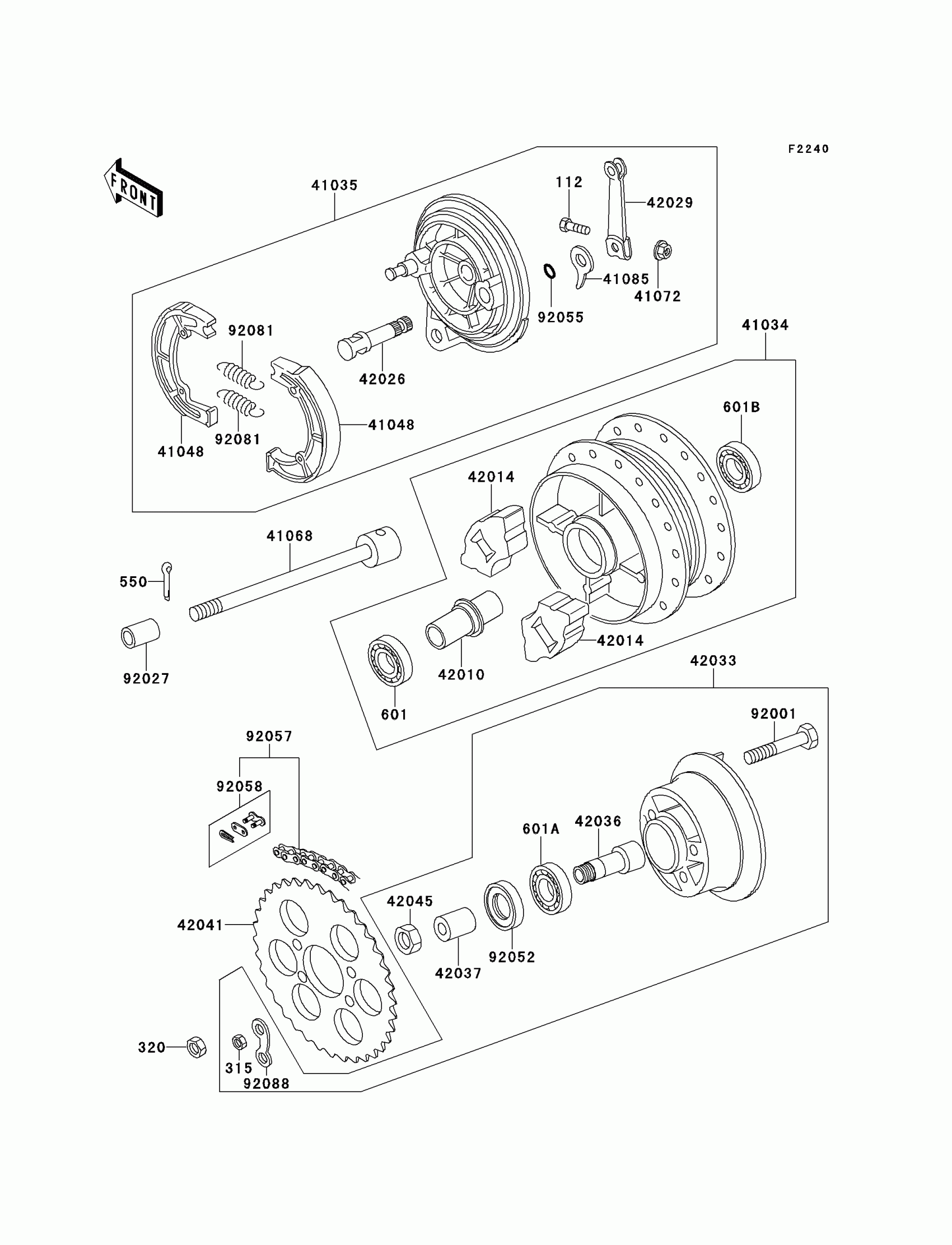

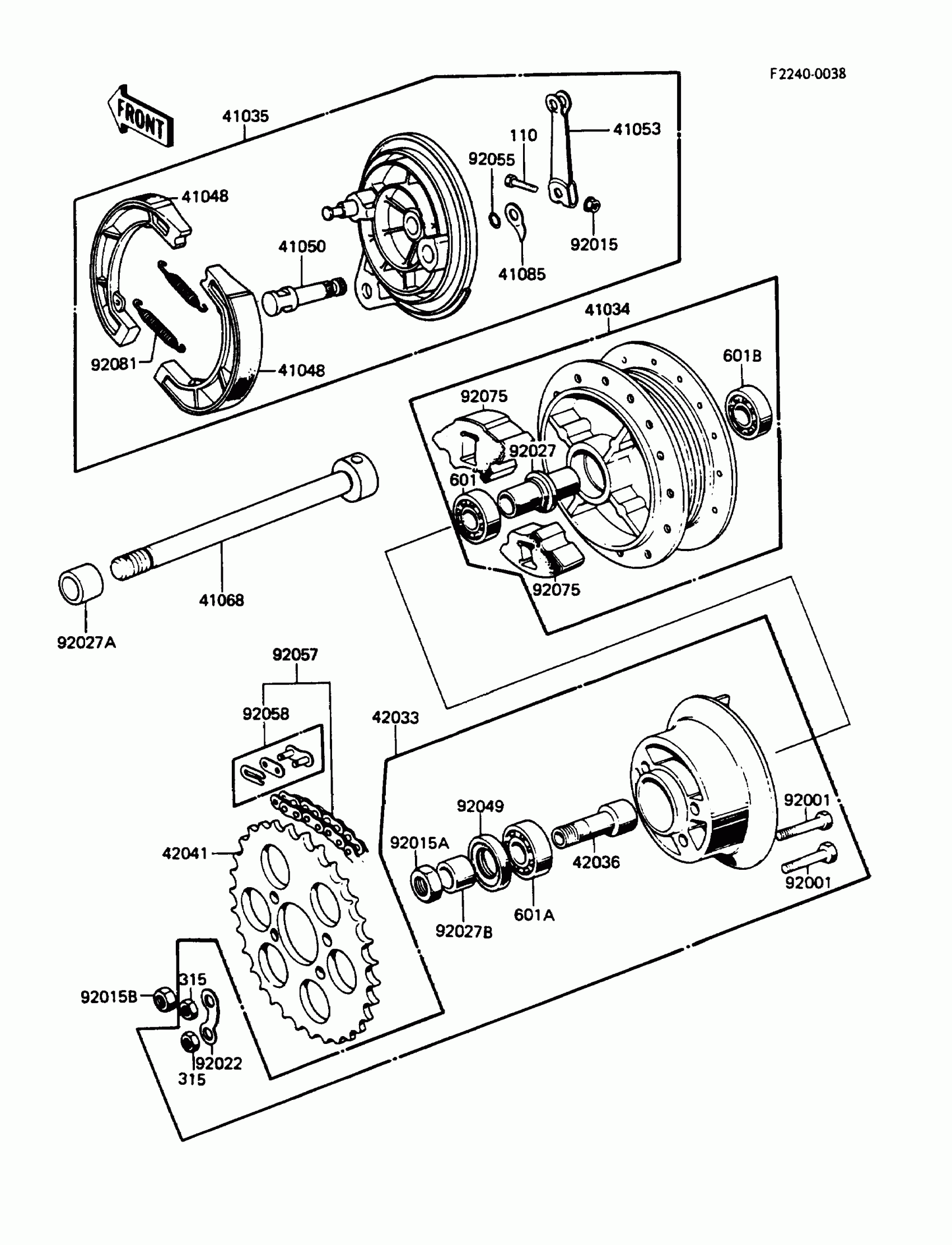

Find the part on the Rear Hub diagram for your 1991 Kawasaki KE100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1991 Kawasaki KE100 Rear Hub Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41034

DRUM-ASSY,RR

41034-1048

1
Out of stock

41035

PANEL-ASSY-BRAKE,RR

41035-1081

1
Out of stock

41048

SHOE-BRAKE

41048-017

1

$20.89

In stock

41050

CAM-BRAKE

42026-018

1

$34.51

In stock

41053

LEVER-BRAKE CAM

42029-020

1

$36.39

In stock

41068

AXLE,RR

41068-1229

1

$42.13

In stock

41085

1

$13.78

In stock

42033

COUPLING-ASSY

42033-1042

1

$190.68

In stock

42036

1

$40.05

In stock

42041

SPROCKET-HUB,40T

42041-1095

1

$49.82

In stock

92001

1

$2.42

In stock

92015

NUT,6MM

41072-007

1

$3.12

In stock

92015A

NUT,16MM

42045-004

1

$8.39

In stock

92015B

NUT,10MM

42045-005

1

$6.34

In stock

92022

WASHER,LOCK

92088-011

1

$4.51

In stock

92027

COLLAR,L=58

42010-005

1

$12.19

In stock

92027A

COLLAR,12.2X22X28.5

42032-006

1
Out of stock

92027B

COLLAR,17X25X12.5

42037-003

1

$13.03

In stock

92049

SEAL-OIL,COUPLING

92052-003

1
Out of stock

92055

RING-O,BRAKE CAM

92055-004

1
Out of stock

92057

CHAIN,DRIVE,EK428GX112L

92057-1099

1
Out of stock

92058

JOINT-CHAIN,EK428-G

92058-1014

1
Out of stock

92075

DAMPER,RR HUB SHOCK

42014-016

1
Out of stock

92081

SPRING,BRAKE SHOE

92081-1766

1

$6.39

In stock

110

BOLT,6X30

110G0630

1
Out of stock

315

NUT-HEX-FINE,10MM

315B1000

1
Out of stock

601

1

$10.56

In stock

601A

1

$11.12

In stock

601B

BEARING-BALL,#6301ZG

601B6301ZG

1
Out of stock
