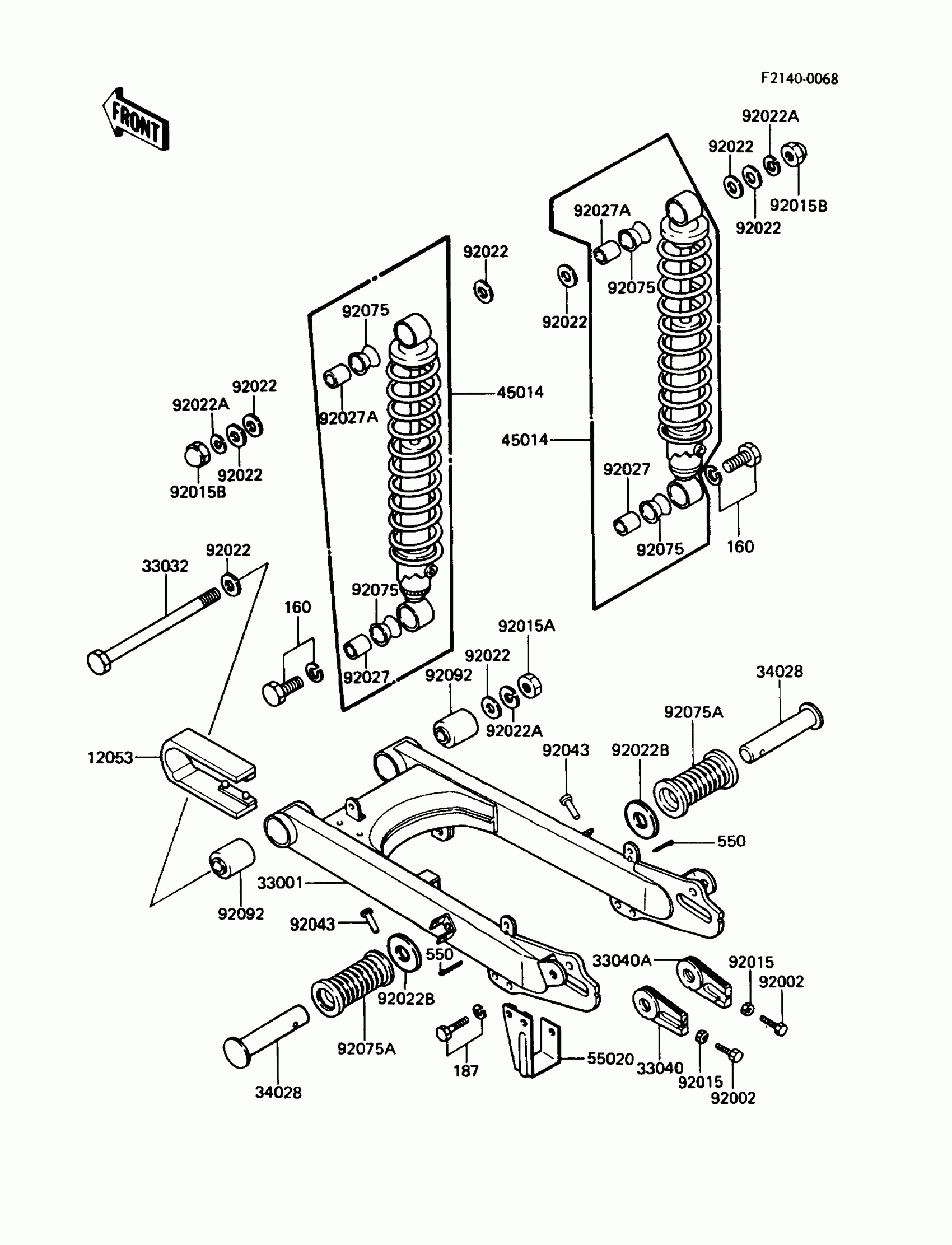

Kawasaki KE100 Swing Arm/Shock Absorber Diagram

#

Description
Price

12053

GUIDE-CHAIN,NYLON

12053-1066

$22.49

33001

ARM-COMP-SWING,SILVER

33001-1118

Unavailable

33032

SHAFT-SWING ARM

33032-034

Unavailable

33040

ADJUSTER-CHAIN,LH

33040-045

Unavailable

33040A

ADJUSTER-CHAIN,RH

33040-046

$15.03

34028

STEP,RR

34028-009

$24.51

45014

SHOCKABSORBER

45014-1144

Unavailable

55020

GUARD,CHAIN

55020-012

Unavailable

92002

BOLT,CHAIN ADJUSTER,8X50

92002-1076

$7.52

92015

NUT,8MM

92015-1364

$3.12

92015A

NUT,12MM

92015-1381

$2.47

92015B

NUT,CAP,12MM

92020-014

$7.84

92022

WASHER,12MM

92022-1538

$0.76

92022A

WASHER,SPRING,12MM

92022-1541

$0.98

92022B

WASHER,20X30X2.3

92022-1568

$3.85

92027

COLLAR,SHOCKABSORBER

45016-003

$15.05

92027A

COLLAR,SHOCKABSORBER

92027-1063

Unavailable

92043

PIN,6X28

92043-079

$6.44

92075

DAMPER,SHOCKABSORBER

92075-1020

$4.34

92075A

DAMPER

92076-020

$22.91

92092

BUSHING-RUBBER

92092-005

$11.16

160

BOLT-FINE-WS

160N1035

$5.54

187

BOLT-UPSET-WSP

187X0616

Unavailable

550

PIN COTTER 2.0X15

550D2015

Unavailable
