1991 Kawasaki KE100 Front Hub Diagram

← All diagrams

Find the part on the Front Hub diagram for your 1991 Kawasaki KE100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

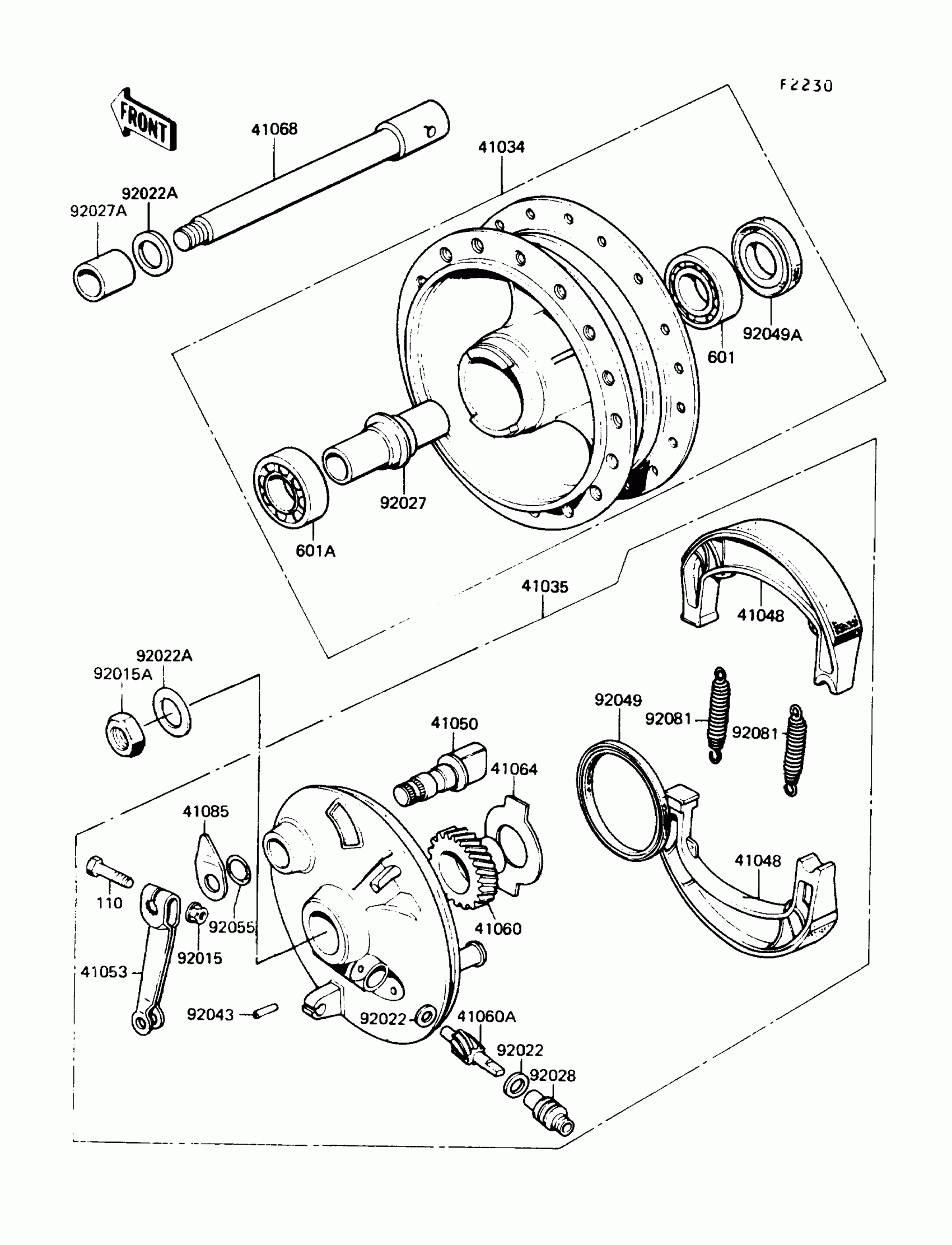

1991 Kawasaki KE100 Front Hub Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41034

DRUM-ASSY,FR

41034-1047

1
Out of stock

41035

PANEL-ASSY-BRAKE,FR

41035-1080

1
Out of stock

41048

SHOE-BRAKE

41048-017

1

$20.89

In stock

41050

CAM-BRAKE

41050-018

1

$21.98

In stock

41053

LEVER-BRAKE CAM

41053-005

1

$12.24

In stock

41060

1

$35.78

In stock

41060A

1

$20.37

In stock

41064

1

$9.56

In stock

41068

AXLE,FR

41068-039

1
Out of stock

41085

1

$13.20

In stock

92015

NUT,6MM

41072-007

1

$3.12

In stock

92015A

NUT,10MM

42045-005

1

$6.34

In stock

92022

WASHER,5.1X9X0.4

41063-001

1

$4.17

In stock

92022A

WASHER,10.5X22X1.6

92022-1558

1

$3.92

In stock

92027

COLLAR,L=51

41039-002

1

$10.54

In stock

92027A

COLLAR,L=13

41069-026

1

$12.47

In stock

92028

1

$18.66

In stock

92043

PIN,SPRING

41082-001

1

$3.53

In stock

92049

SEAL-OIL,BRAKE PANEL

92050-002

1
Out of stock

92049A

SEAL-OIL,TC17317

92050-063

1
Out of stock

92055

RING-O,BRAKE CAM

92055-004

1
Out of stock

92081

SPRING,BRAKE SHOE

92081-1766

1

$6.39

In stock

110

BOLT,6X30

110G0630

1
Out of stock

601

1

$14.07

In stock

601A

BEARING-BALL,#6300ZG

601B6300ZG

1
Out of stock
