1986 Kawasaki KE100 Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1986 Kawasaki KE100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

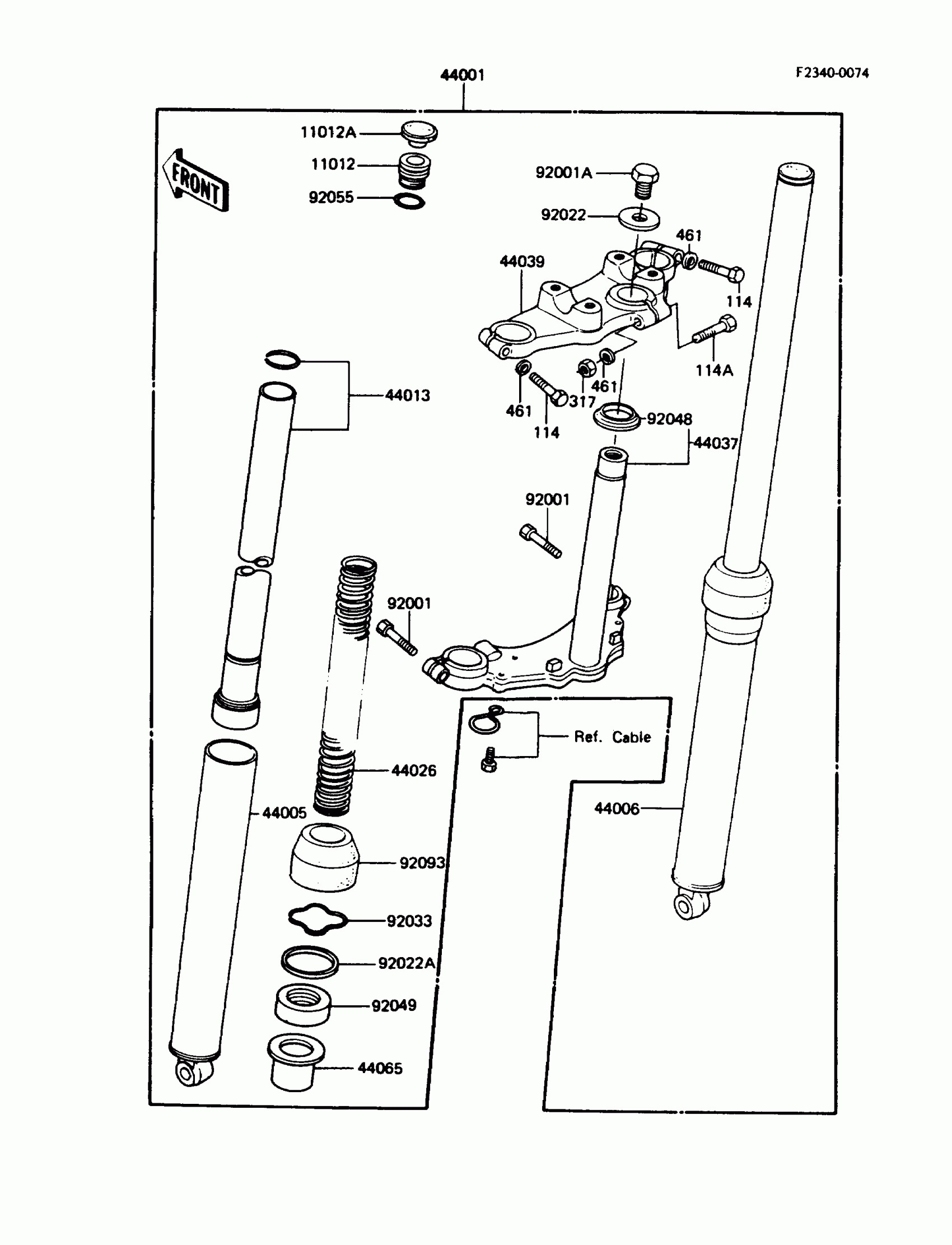

1986 Kawasaki KE100 Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,SPRING

11012-1126

1
Out of stock

11012A

CAP,FORK

11012-1127

1
Out of stock

44001

FORK-FRONT

44001-1303

1

$1,132.54

In stock

44005

PIPE-LEFT FORK OUTER

44005-1076

1
Out of stock

44006

PIPE-RIGHT FORK OUTER

44006-1075

1
Out of stock

44013

PIPE-FORK INNER,30X700.5

44013-1070

1
Out of stock

44026

SPRING-FRONT FORK

44026-1120

1

$40.39

In stock

44037

HOLDER-FORK UNDER

44037-1076

1
Out of stock

44039

HOLDER-FORK UPPER

44039-047

1
Out of stock

44065

BUSHING-FRONT FORK

44065-1014

1

$25.44

In stock

92001

BOLT,10X36

92001-1269

1
Out of stock

92001A

BOLT,10X36

92001-1269

1
Out of stock

92022

1

$10.56

In stock

92022A

1

$7.46

In stock

92033

RING-SNAP

92033-1038

1

$3.35

In stock

92048

RACE,LOWER BEARING

92047-004

1
Out of stock

92049

OIL SEAL

92049-1049

1
Out of stock

92055

RING-O

92055-1087

1
Out of stock

92093

SEAL,DUST

92093-1065

1
Out of stock

114

BOLT

114G0836

1
Out of stock

114A

BOLT-SMALL-UPSET

115G0845

1
Out of stock

317

NUT-HEX-SMALL,8MM

317B0800

1
Out of stock

461

WASHER SPRING 8MM

461F0800

1
Out of stock
