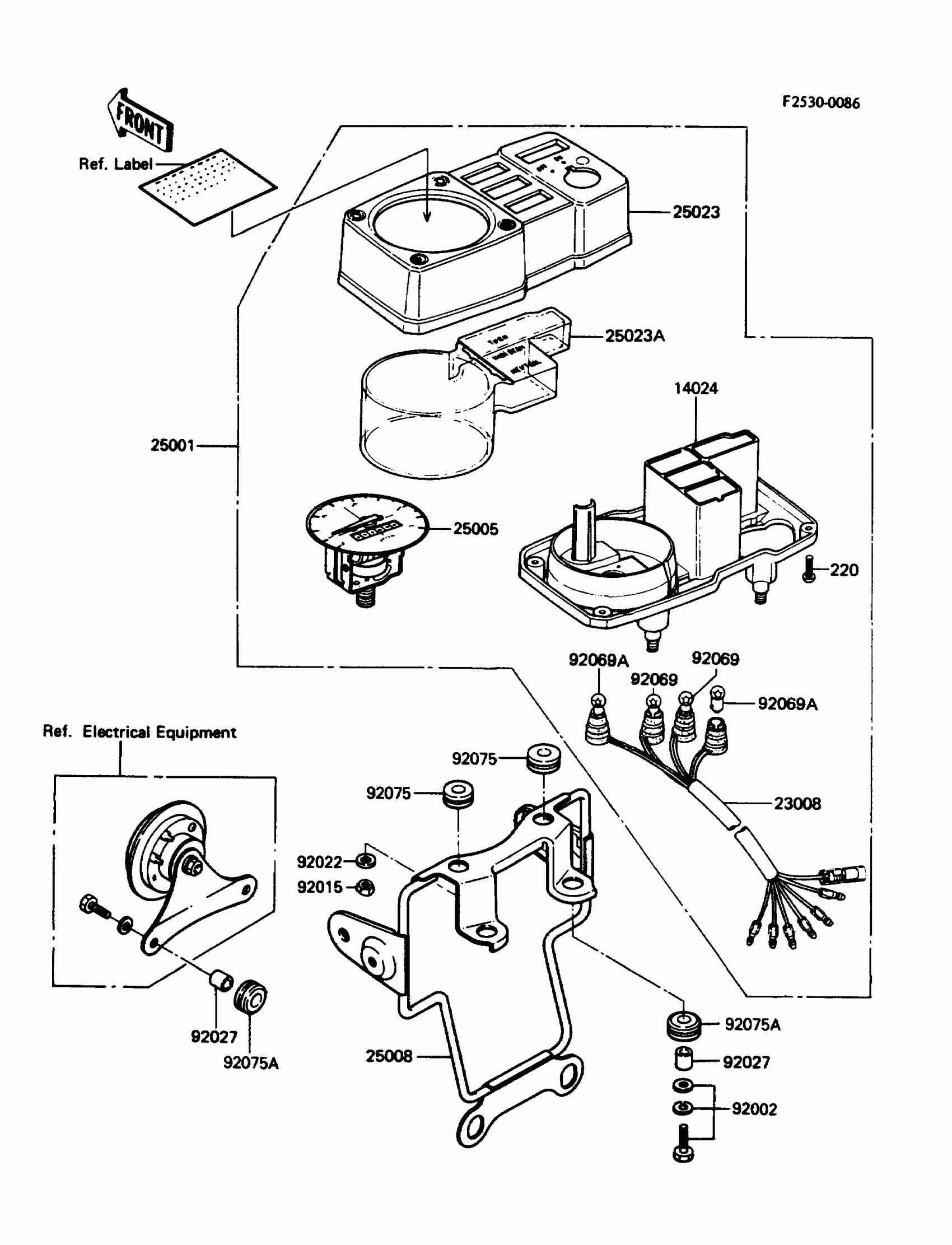

Kawasaki KE100 Meter Diagram

#

Description
Price

14024

COVER,METER,LWR

14025-1870

$90.72

23008

SOCKET-ASSY,METER

23008-1110

$54.62

25001

METER-ASSY,MPH

25001-1267

$590.94

25005

SPEEDOMETER,MPH

25005-1134

Unavailable

25008

BRACKET-METER

25008-1042

Unavailable

25023

COVER-METER CASE,UPP

25023-1035

$62.12

25023A

COVER-METER CASE,LWR

25023-1036

$60.87

92002

BOLT,6X25

92002-1137

$3.49

92015

NUT,6MM

92015-1391

$2.05

92022

WASHER,6.5X20X1.6

92022-1557

$1.25

92027

COLLAR,6.8X10X12

92027-162

$5.21

92069

BULB,6V 1.7W

92069-024

$3.80

92069A

BULB,6V 3W,CLEAR

92069-053

$3.33

92075

DAMPER RUBBER

92075-076

$3.97

92075A

DAMPER RUBBER,RR FENR

92075-209

$3.72

220

SCREW PAN HEAD 4X10

220B0410

Unavailable
