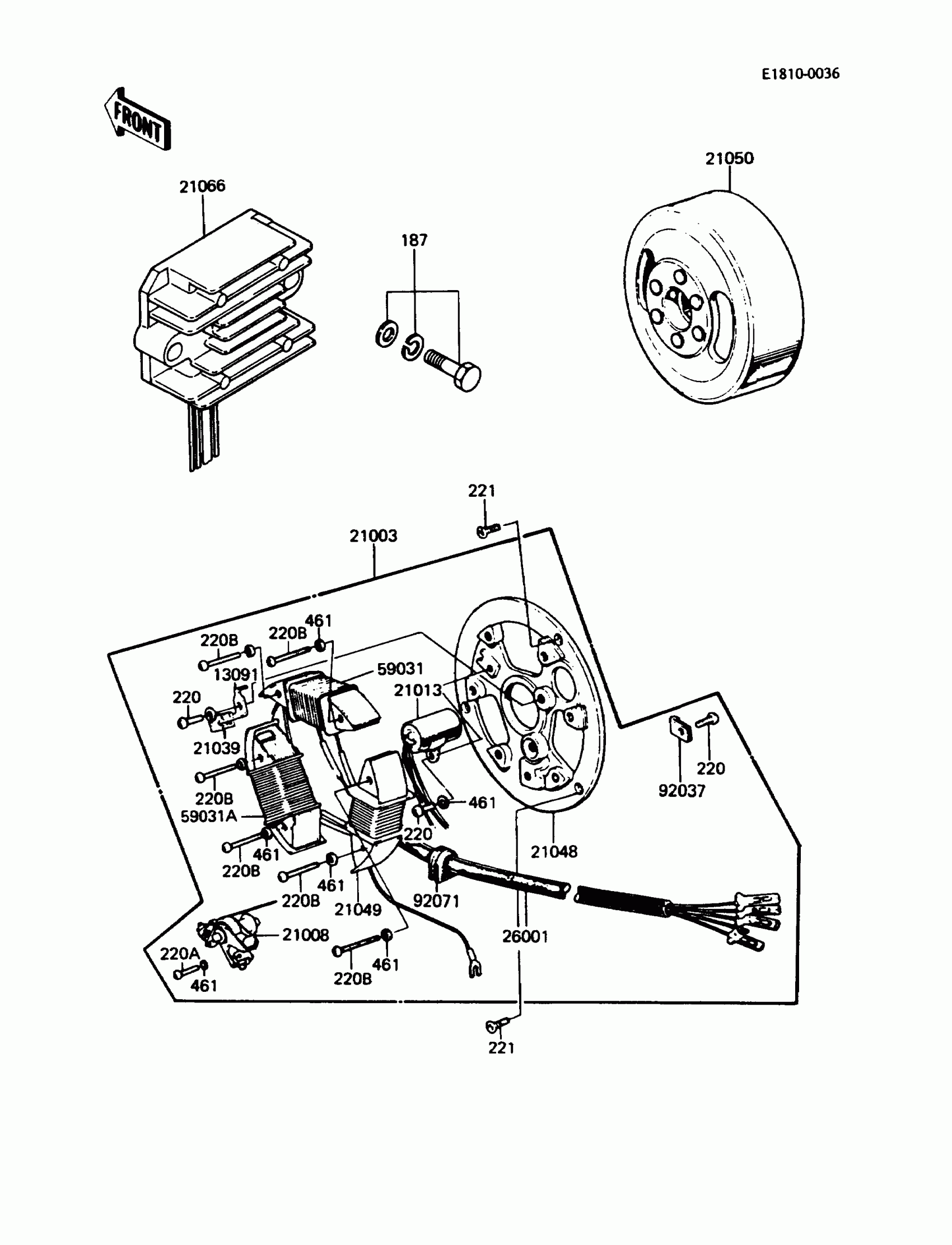

Find the part on the Generator diagram for your 1991 Kawasaki KE100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1991 Kawasaki KE100 Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13091

HOLDER,OIL FELT

21038-002

1
Out of stock

21003

STATOR

21003-1014

1
Out of stock

21008

BREAKER,CONTACT

21008-006

1

$50.32

In stock

21013

CONDENSER

21013-006

1
Out of stock

21039

BRUSH,OIL

21019-005

1
Out of stock

21048

PLATE-COIL,MAGNETO

21048-007

1

$70.10

In stock

21049

COIL-EXCITING

21049-1004

1
Out of stock

21050

FLYWHEEL,MAGNETO

21050-1009

1

$376.25

In stock

21066

REGULATOR-VOLTAGE

21066-1012

1
Out of stock

26001

HARNESS,MAGNETO

26001-1077

1

$67.94

In stock

59031

COIL-CHARGING,A

59031-1001

1

$96.22

In stock

59031A

COIL-CHARGING,B

59031-1002

1
Out of stock

92037

CLAMP,WIRING HARNESS

21037-002

1
Out of stock

92071

GROMMET

21017-002

1

$4.23

In stock

187

BOLT-UPSET-WSP

187B0625

1
Out of stock

220

1

$1.46

In stock

220A

1

$0.26

In stock

220B

SCREW-PAN-CROS

220E0430

1
Out of stock

221

SCREW-CSK-CROS,6X14

221B0614

1
Out of stock

461

WASHER SPRING 4MM

461F0400

1
Out of stock
