2001 Kawasaki KDX220R Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 2001 Kawasaki KDX220R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

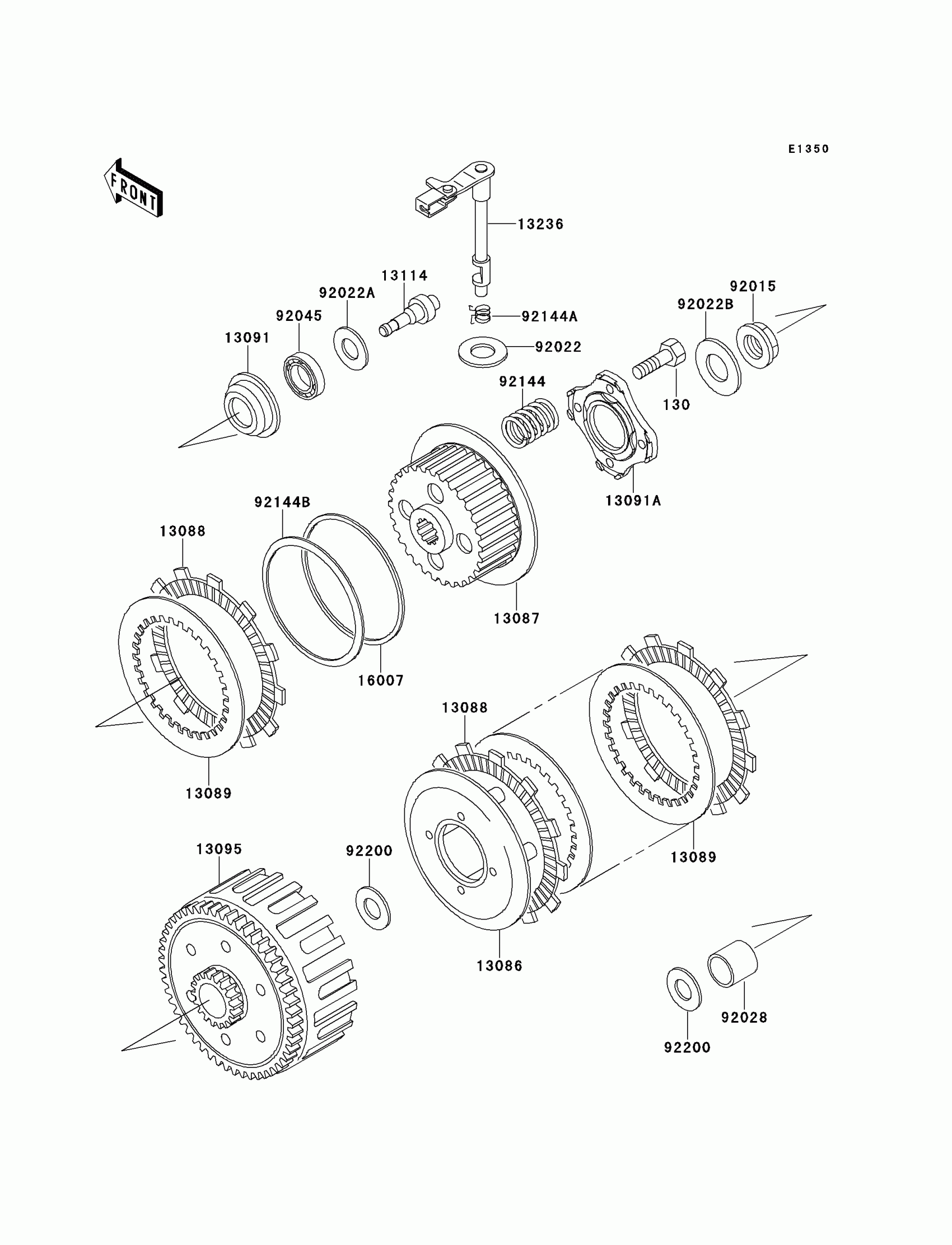

2001 Kawasaki KDX220R Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X25

130Y0625

1
Out of stock

13086

WHEEL-CLUTCH

13086-1069

1

$82.45

In stock

13087

HUB-CLUTCH

13087-1158

1

$134.97

In stock

13088

PLATE-FRICTION

13088-1085

1

$11.88

In stock

13089

PLATE-CLUTCH

13089-1076

1

$10.14

In stock

13091

1

$22.90

In stock

13091A

1

$29.99

In stock

13095

HOUSING-COMP-CLUTCH

13095-1287

1

$503.15

In stock

13114

PUSHER-CLUTCH

13114-1067

1

$22.07

In stock

13236

LEVER-COMP,CLUTCH RELEASE

13236-1264

1
Out of stock

16007

SEAT-SPRING

16007-1162

1

$14.88

In stock

92015

NUT,16MM

92015-1581

1

$15.43

In stock

92022

WASHER,12.5X22X1.2

92022-072

1

$3.12

In stock

92022A

—

$3.12

In stock

92022B

WASHER,16.3X29X1.75

92022-1356

1

$5.84

In stock

92028

BUSHING,20X25X26.85

92028-1388

1

$33.55

In stock

92045

BEARING-BALL,6000

92045-1225

1

$16.59

In stock

92144

SPRING,CLUTCH

92144-1160

1

$9.08

In stock

92144A

1

$4.88

In stock

92144B

SPRING

92144-1522

1

$12.92

In stock

92200

WASHER,20.3X30X2.3

92200-1238

1
Out of stock
