2001 Kawasaki KDX220R Side Covers/chain Cover Diagram

← All diagrams

Find the part on the Side Covers/chain Cover diagram for your 2001 Kawasaki KDX220R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

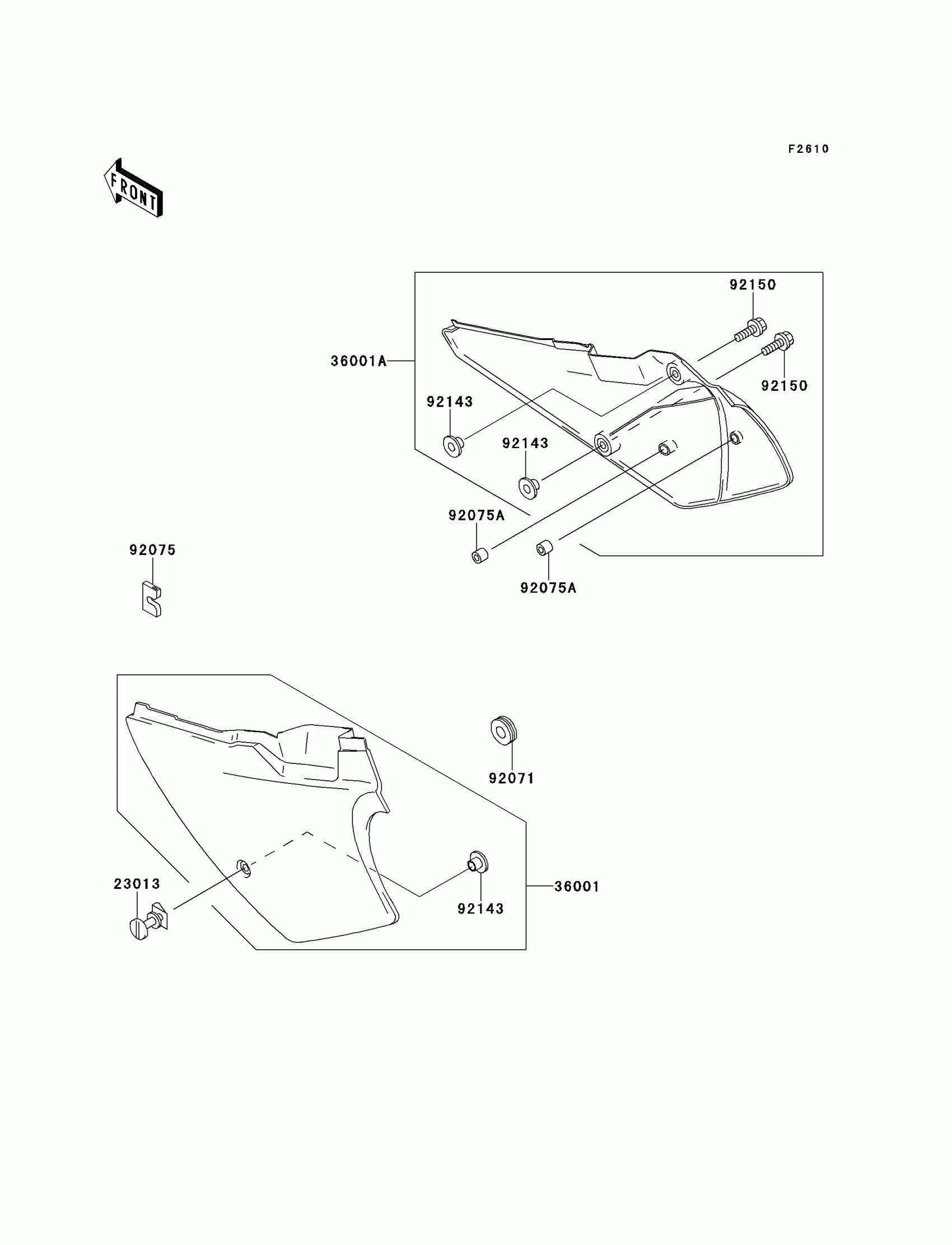

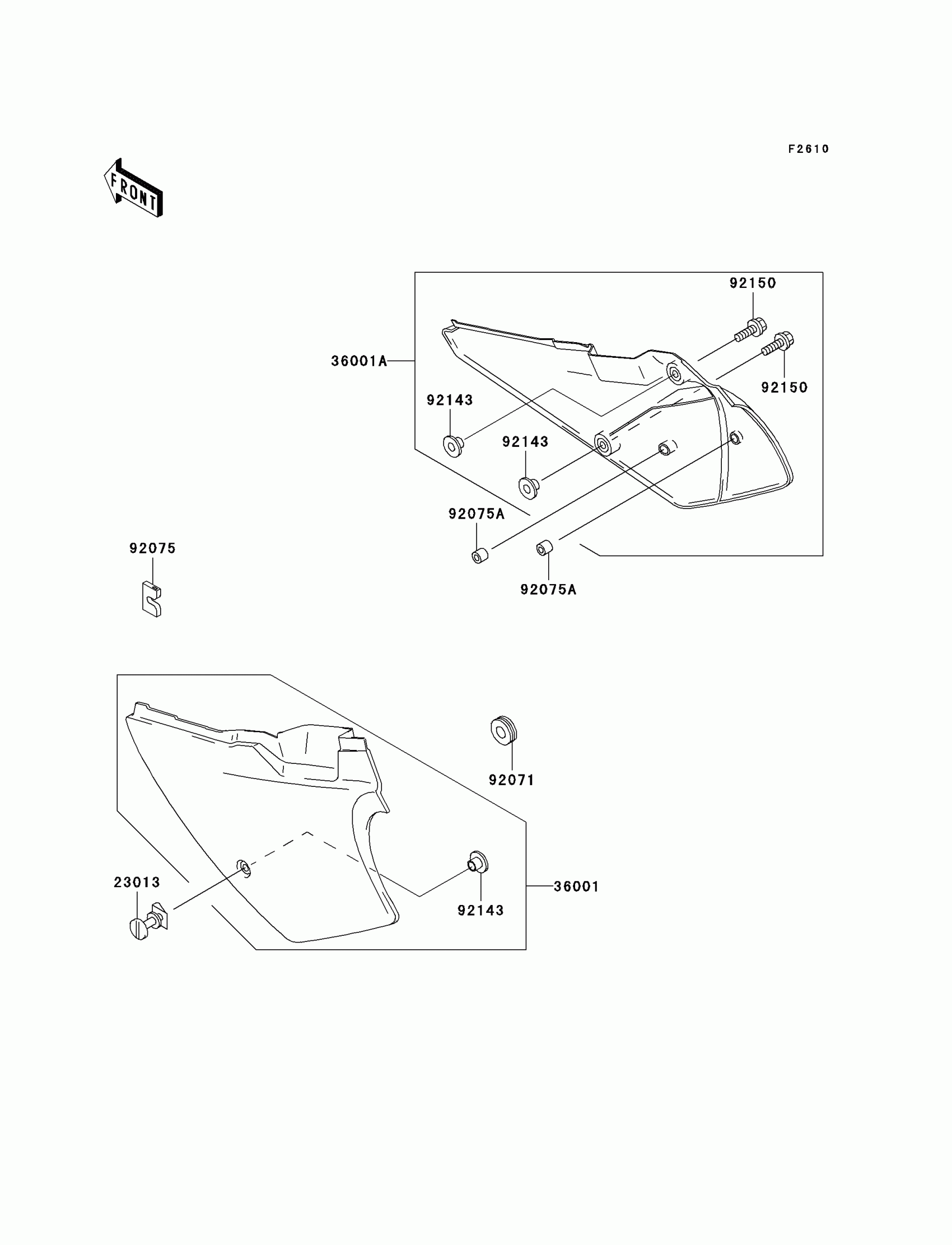

2001 Kawasaki KDX220R Side Covers/chain Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

23013

SCREW-ASSY

23013-1051

1
Out of stock

36001

COVER-SIDE,LH,P.WHITE

36001-1526-6F

1
Out of stock

36001A

COVER-SIDE,RH,P.WHITE

36001-1527-6F

1
Out of stock

92071

GROMMET

92071-056

1
Out of stock

92075

DAMPER

92075-1967

1
Out of stock

92075A

DAMPER RUBBER,CLENER

92075-217

1
Out of stock

92143

COLLAR

92143-1196

1
Out of stock

92150

BOLT,6X20

92150-1339

1
Out of stock
