2001 Kawasaki KDX220R Gear Change Drum/shift Fork Diagram

← All diagrams

Find the part on the Gear Change Drum/shift Fork diagram for your 2001 Kawasaki KDX220R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

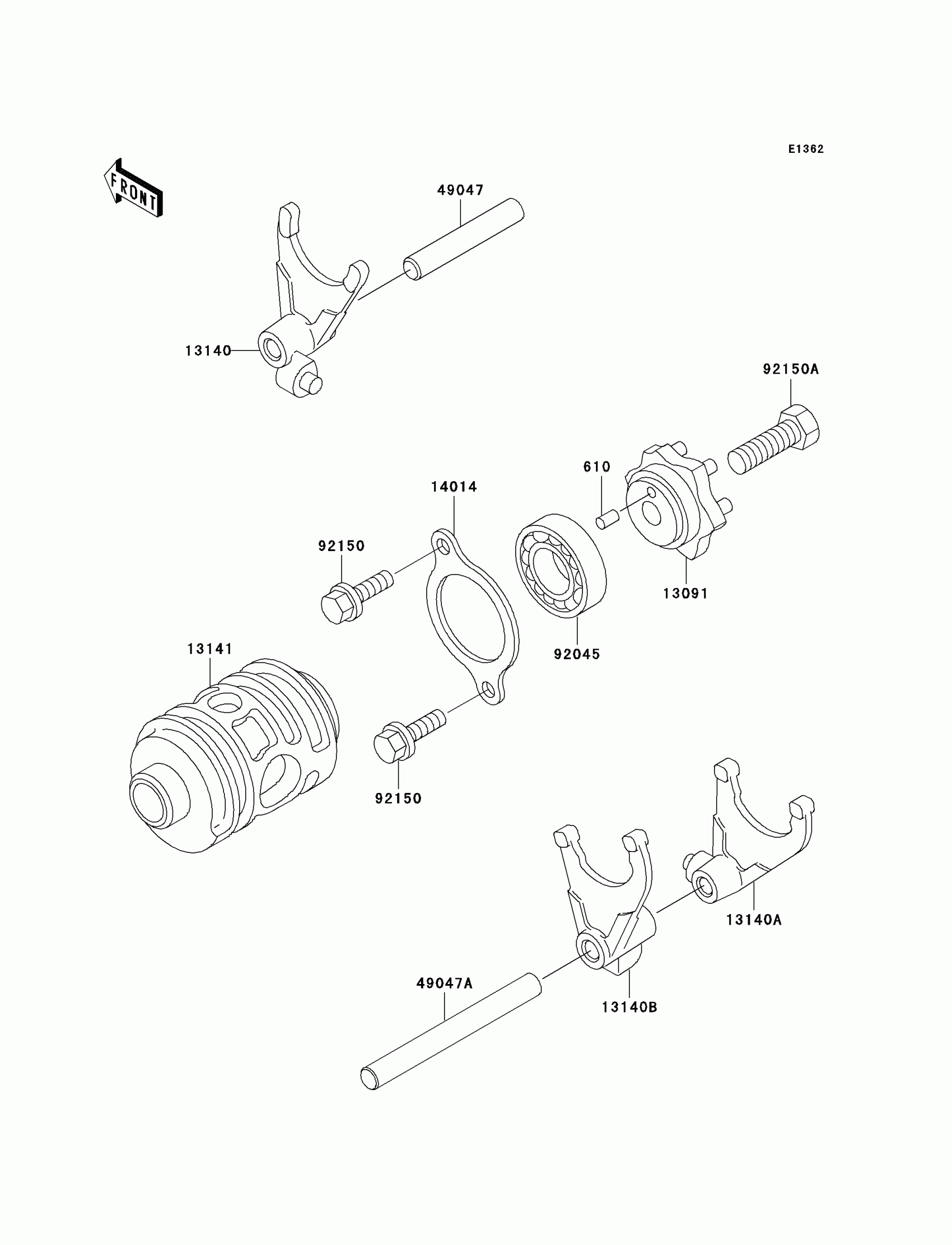

2001 Kawasaki KDX220R Gear Change Drum/shift Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

610

ROLLER,4X8

610A0408

1

$3.43

In stock

13091

HOLDER,CHANGE DRUM

13091-1364

1

$123.69

In stock

13140

FORK-SHIFT,5TH&TOP

13140-1074

1

$96.53

In stock

13140A

FORK-SHIFT,LOW&4TH

13140-1243

1

$96.53

In stock

13140B

FORK-SHIFT,2ND&3RD

13140-1244

1

$96.53

In stock

13141

DRUM-CHANGE

13141-1117

1

$128.80

In stock

14014

PLATE-POSITION

14014-1020

1
Out of stock

49047

ROD-SHIFT,8X58

49047-1089

1

$14.88

In stock

49047A

ROD-SHIFT,8X82.5

49047-1090

1

$14.88

In stock

92045

BEARING-BALL

92045-1319

1
Out of stock

92150

BOLT,6X12

92150-1868

1

$2.66

In stock

92150A

BOLT,8X25

92150-1911

1

$3.25

In stock
