2001 Kawasaki KDX220R Fuel Tank Diagram

← All diagrams

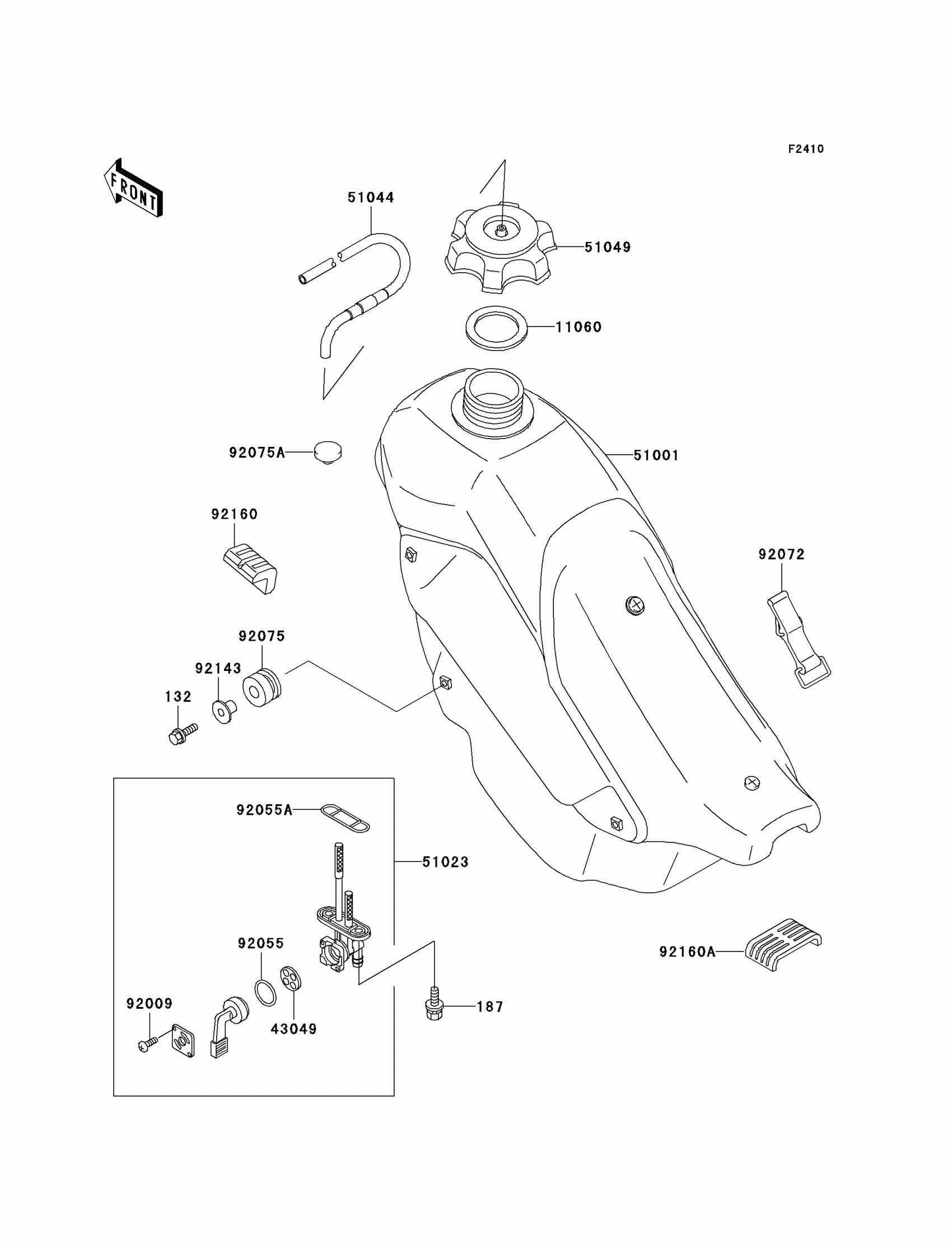

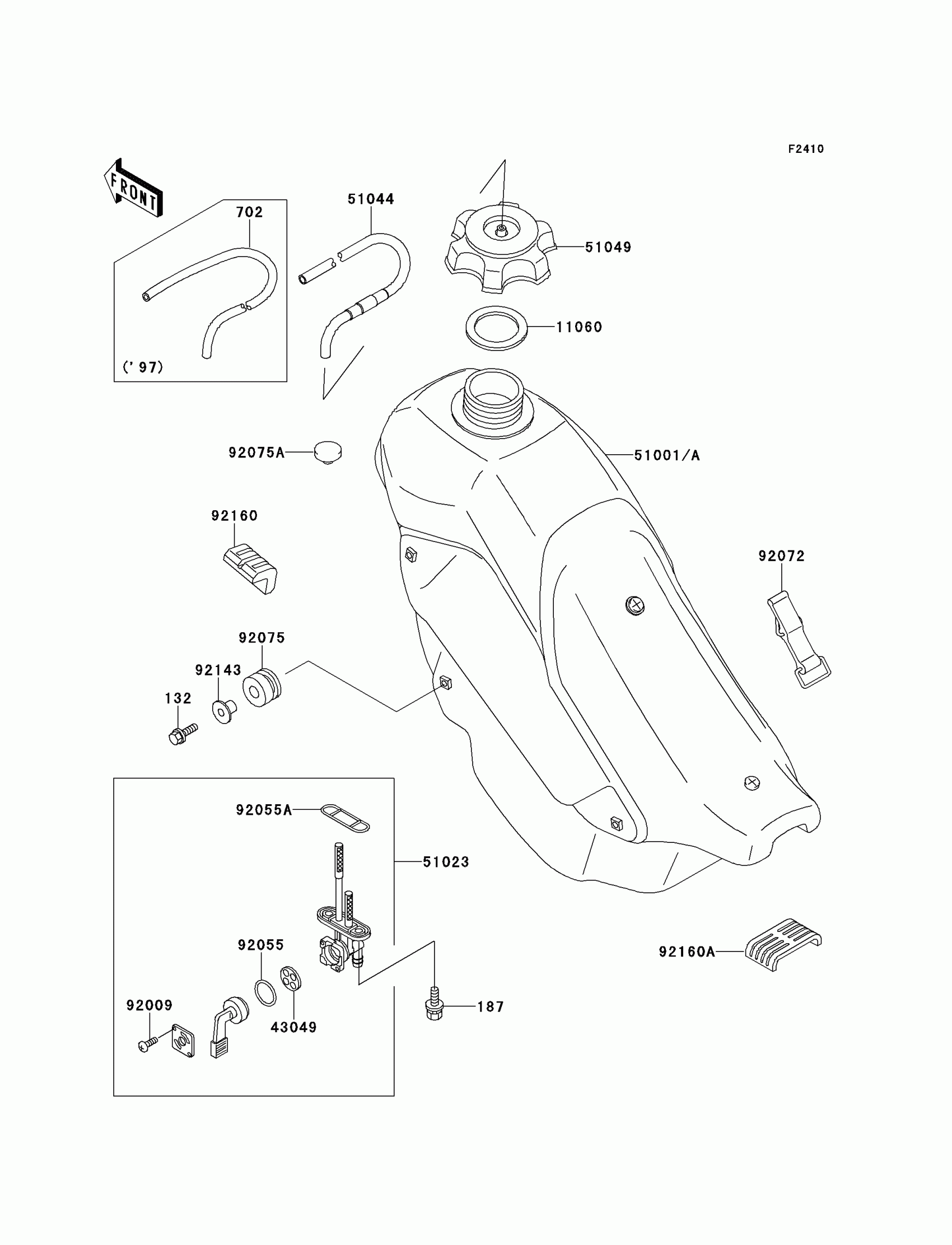

Find the part on the Fuel Tank diagram for your 2001 Kawasaki KDX220R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Kawasaki KDX220R Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL

132G0620

1
Out of stock

187

BOLT-UPSET-WSP

187B0616

1
Out of stock

11060

1

$4.88

In stock

43049

1

$5.77

In stock

51001A

TANK-COMP-FUEL,L.GREEN

51001-1456-6W

1
Out of stock

51023

TAP-ASSY,FUEL

51023-1214

1

$90.33

In stock

51044

TUBE-ASSY

51044-1185

1

$13.67

In stock

51049

CAP-TANK,FUEL

51049-1108

1

$29.27

In stock

92009

SCREW,3X5

92009-1123

1
Out of stock

92055

1

$3.97

In stock

92055A

1

$5.84

In stock

92072

BAND,FUEL TANK

92072-1229

1

$10.09

In stock

92075

DAMPER,RUBBER

92075-1123

1

$3.97

In stock

92075A

DAMPER,9X24X14

92075-281

1

$4.93

In stock

92143

COLLAR

92143-1353

1

$6.81

In stock

92160

DAMPER,FUEL TANK

92160-1328

1

$5.84

In stock

92160A

DAMPER,FUEL TANK,RR

92160-1397

1

$7.71

In stock
