1988 Kawasaki KDX200 Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 1988 Kawasaki KDX200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

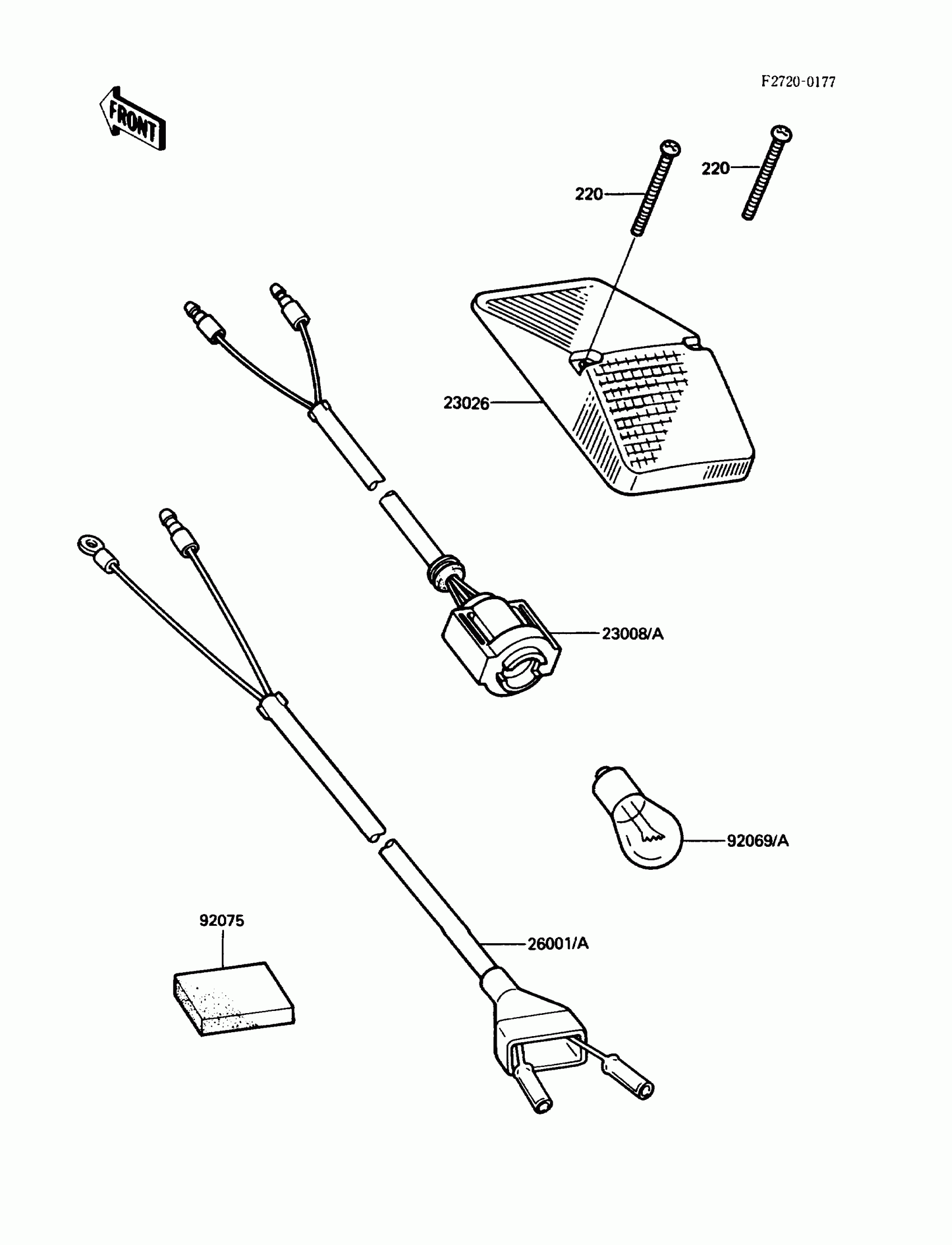

1988 Kawasaki KDX200 Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

23008A

SOCKET-ASSY,TAIL LAMP

23008-1322

1
Out of stock

23026

LENS,TAIL LAMP,"220-40924"

23026-1027

1
Out of stock

26001A

HARNESS,TAIL LAMP

26001-1815

1

$22.02

In stock

92069A

BULB,6V 8W

92069-042

1
Out of stock

92075

DAMPER,TAIL LAMP

92075-1625

1
Out of stock

220

SCREW-PAN-CROS

220B0445

1
Out of stock
