1988 Kawasaki KDX200 Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 1988 Kawasaki KDX200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

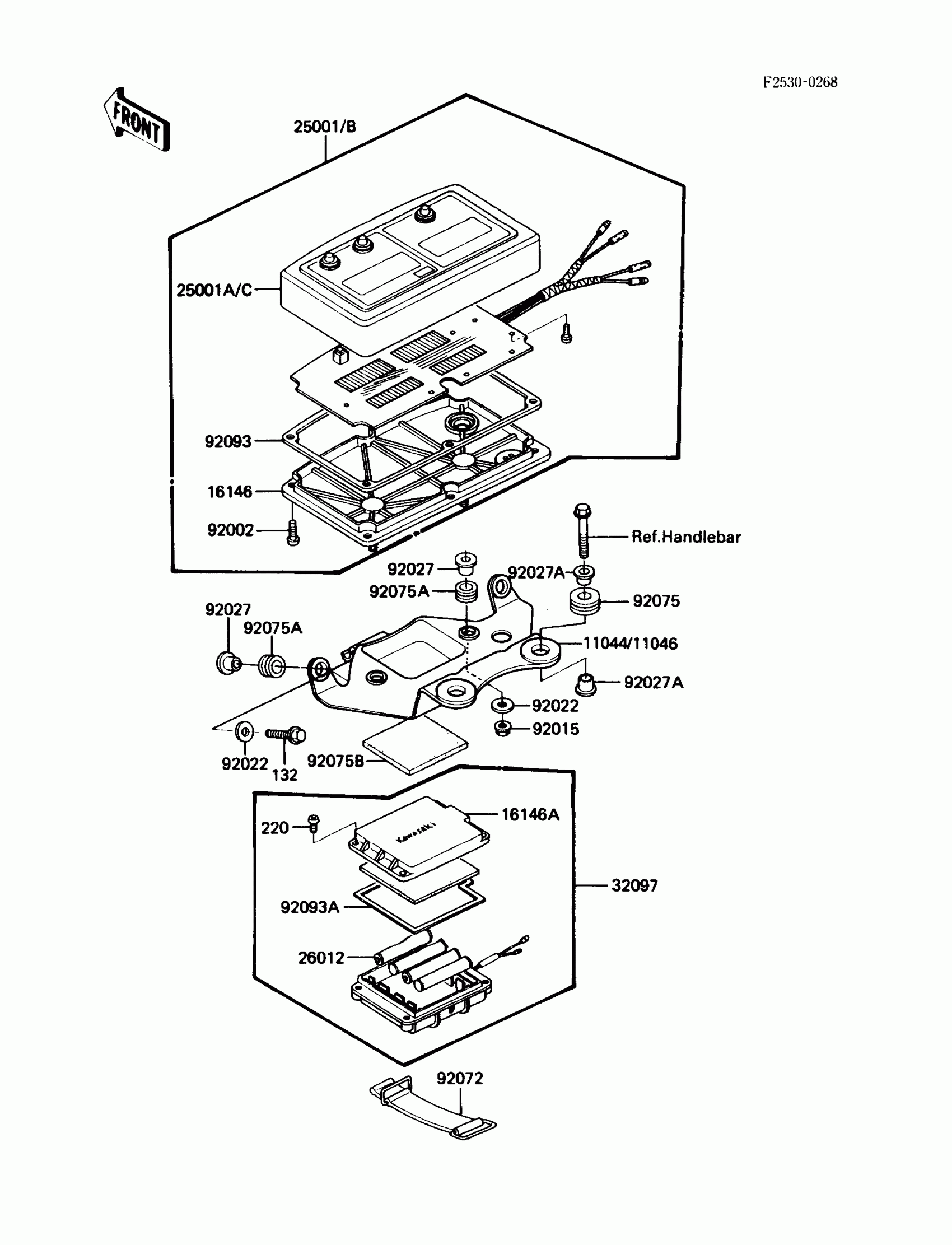

1988 Kawasaki KDX200 Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11046

BRACKET,METER

11046-1083

1
Out of stock

16146

COVER-ASSY,METER

16146-1055

1

$22.46

In stock

16146A

1

$12.66

In stock

25001

1

$700.76

In stock

25001A

METER-ASSY

25001-1577

1

$40.04

In stock

25001B

METER-ASSY,TRIP(KM)&TIME

25001-1578

1
Out of stock

25001C

METER-ASSY

25001-1579

1
Out of stock

26012

Not Available As Spare Part - Friction Washer

1
Out of stock

32097

CASE-BATTERY

32097-1070

1

$72.71

In stock

92002

BOLT,4X14

92002-1441

1

$1.98

In stock

92015

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92022

WASHER,6.5X20X1.6

92022-125

1

$1.25

In stock

92027

COLLAR

92027-1045

1

$4.37

In stock

92027A

COLLAR,METER BRACKET

92027-1585

1
Out of stock

92072

BAND,TOOL

92072-1176

1

$12.34

In stock

92075

1

$3.92

In stock

92075A

DAMPER

92075-1028

1

$3.72

In stock

92075B

DAMPER,BATTERY CASE

92075-1668

1

$13.03

In stock

92093

SEAL,METER

92093-1178

1

$8.41

In stock

92093A

SEAL,BATTERY CASE

92093-1179

1

$5.15

In stock

132

BOLT-FLANGED-SMALL

132G0620

1
Out of stock

220

SCREW-PAN-CROS

220C0408

1

$1.46

In stock
