1988 Kawasaki KDX200 Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 1988 Kawasaki KDX200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

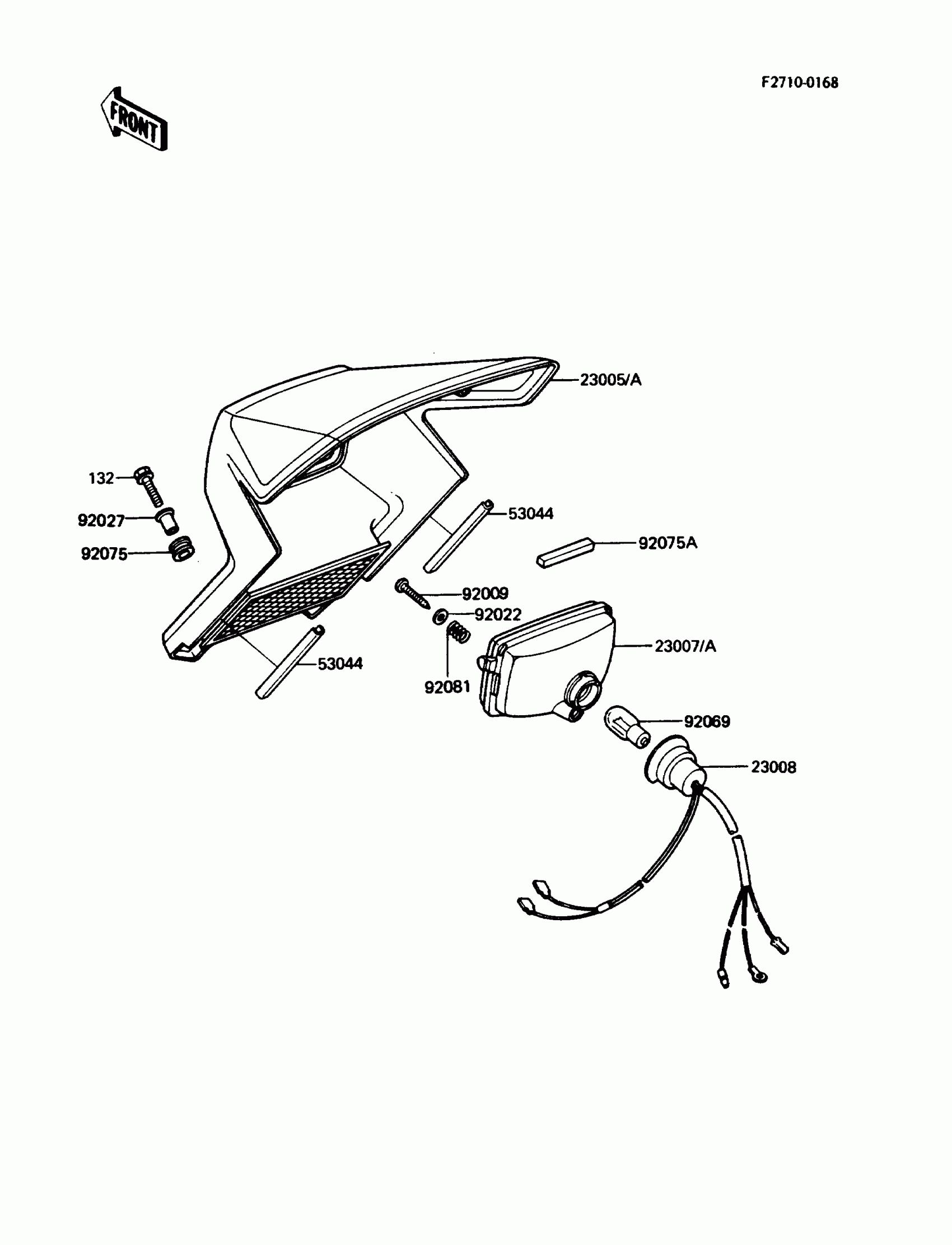

1988 Kawasaki KDX200 Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

23005

BODY-COMP-HEAD LAMP,L.GREEN

23005-1057-AC

1
Out of stock

23005A

1

$107.81

In stock

23007A

LENS-COMP,HEAD LAMP

23007-1180

1

$41.04

In stock

23008

SOCKET-ASSY,HEAD LAMP

23008-1249

1
Out of stock

53044

TRIM

53044-1137

1

$10.25

In stock

92009

SCREW,TAPPING,4X30

92009-1139

1
Out of stock

92022

WASHER,FOCUS ADJUSTING

23021-008

1
Out of stock

92027

COLLAR

92027-1045

1

$4.37

In stock

92069

BULB,6V 25/25W

92069-031

1
Out of stock

92075

DAMPER

92075-1028

1

$3.72

In stock

92081

1

$3.88

In stock

132

BOLT-FLANGED-SMALL

132G0620

1
Out of stock
