1988 Kawasaki KDX200 Gear Change Drum/shift Fork Diagram

← All diagrams

Find the part on the Gear Change Drum/shift Fork diagram for your 1988 Kawasaki KDX200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

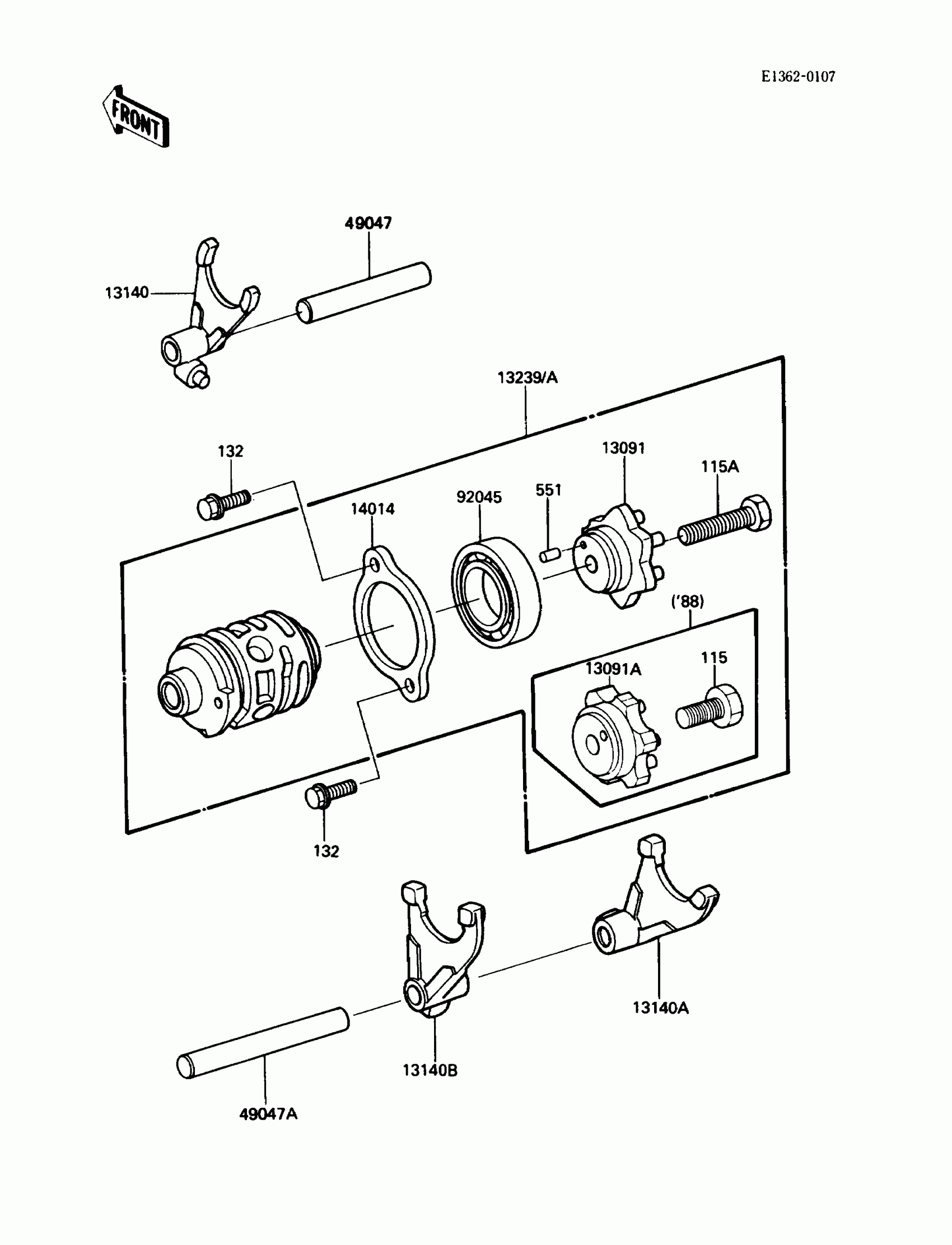

1988 Kawasaki KDX200 Gear Change Drum/shift Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13091A

HOLDER,CHANGE DRUM

13091-1476

1
Out of stock

13140

FORK-SHIFT,5TH&TOP

13140-1074

1

$96.53

In stock

13140A

FORK-SHIFT,LOW&4TH

13140-1143

1
Out of stock

13140B

FORK-SHIFT,2ND&3RD

13140-1144

1
Out of stock

13239A

DRUM-ASSY-CHANGE

13239-1146

1
Out of stock

14014

PLATE-POSITION

14014-1020

1
Out of stock

49047

ROD-SHIFT,8X58

49047-1017

1

$14.88

In stock

49047A

ROD-SHIFT,8X82.5

49047-1065

1

$14.88

In stock

92045

BEARING-BALL,#6905

92045-036

1

$24.62

In stock

115

BOLT-SMALL-UPSET,8X18

115G0818

1
Out of stock

132

BOLT-FLANGED-SMALL

132G0614

1
Out of stock

551

PIN-DOWEL,4X8

551A0408

1

$0.80

In stock
