1980 Kawasaki KDX175 Wheels/tires Diagram

← All diagrams

Find the part on the Wheels/tires diagram for your 1980 Kawasaki KDX175, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

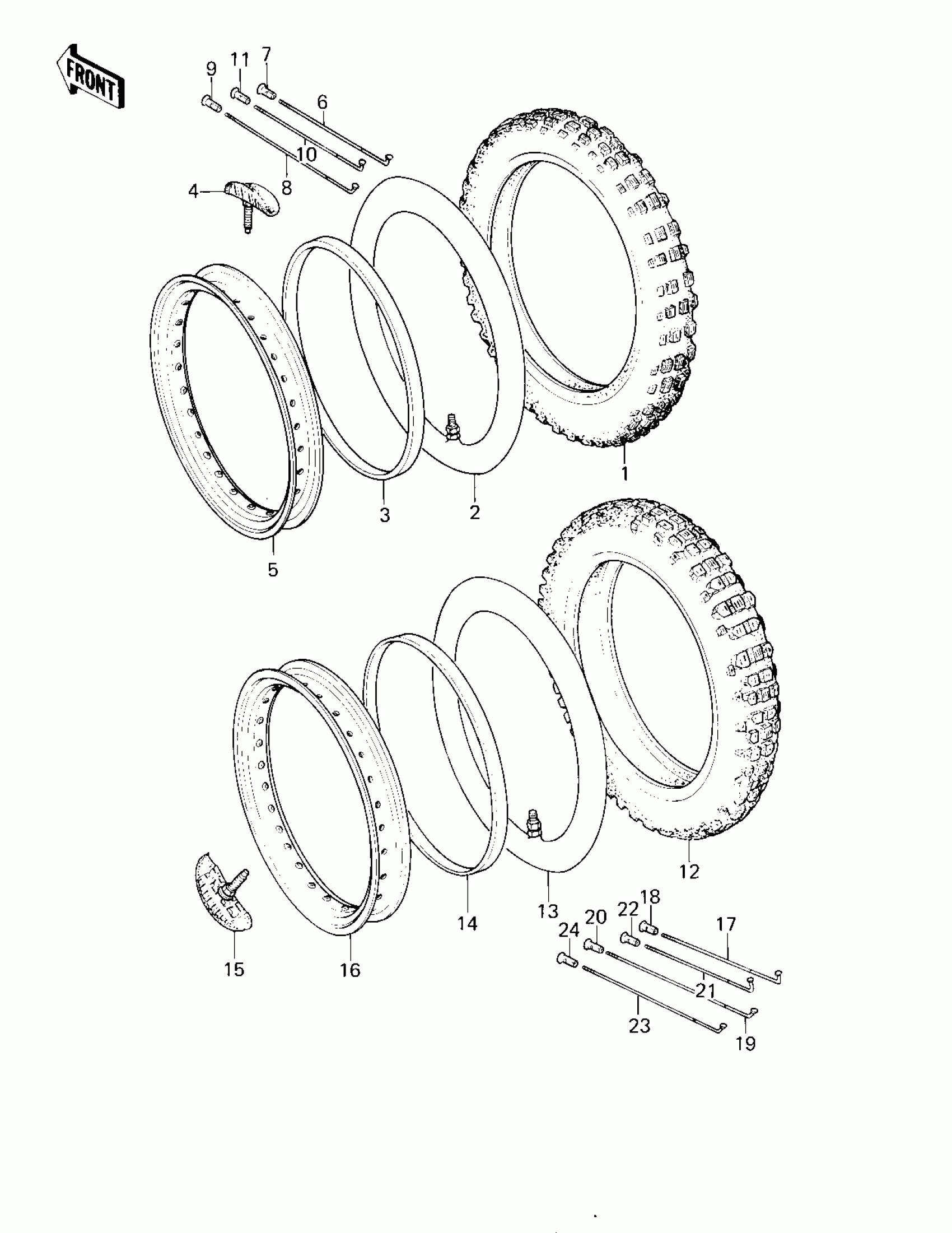

1980 Kawasaki KDX175 Wheels/tires Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TIRE 300-21 M17 F

41002-1087

1

$119.16

In stock

2

1

$51.02

In stock

3

1

$13.19

In stock

4

1

$52.75

In stock

5

RIM,FRONT,1.60-21

41025-1017

1

$177.61

In stock

6

1

$9.61

In stock

7

NIPPLE,SPOKE

41032-1001

1
Out of stock

8

SPOKE,FRONT,INNER,R.

41029-1020

1
Out of stock

9

NIPPLE,SPOKE

41032-1001

1
Out of stock

10

1

$9.61

In stock

11

NIPPLE,SPOKE

41032-1001

1
Out of stock

12

TIRE 400-18 M20

41002-1088

1

$151.98

In stock

13

1

$51.02

In stock

14

1

$13.19

In stock

15

1

$48.17

In stock

16

RIM,REAR,1.85-18

41025-1018

1

$185.86

In stock

17

SPOKE,REAR,INNER,R.H

41029-1021

1
Out of stock

18

NIPPLE,SPOKE

41032-1001

1
Out of stock

19

SPOKE,REAR,INNER,L.H

41029-1022

1
Out of stock

20

NIPPLE,SPOKE

41032-1001

1
Out of stock

21

SPOKE,REAR,OUTER,R.H

41030-1017

1
Out of stock

22

NIPPLE,SPOKE

41032-1001

1
Out of stock

23

SPOKE,REAR,OUTER,L.H

41030-1018

1
Out of stock

24

NIPPLE,SPOKE

41032-1001

1
Out of stock
